881/882 Video Test Generator User Guide (Rev A.22) 329

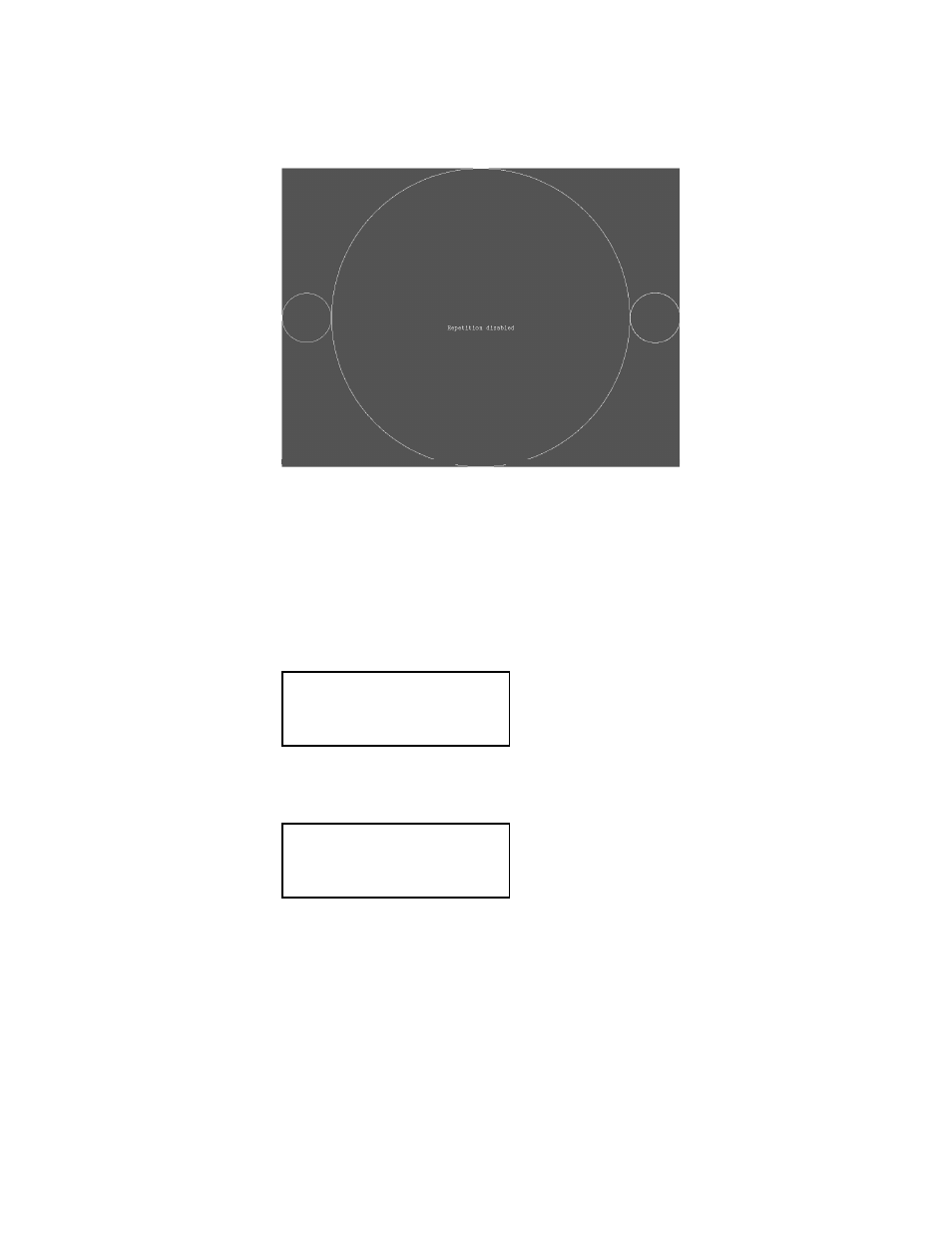

4. Press the Content key and choose the PixelRep image by pressing the adjacent soft
key. The PixelRep image appears on the HDMI display.
Alternatively, to select the PixelRep image using the command line interface, enter the
following commands:
IMGP /tffs0/Library/Images // Set image path to generator memory
IMGL PIXELREP // Loads the PixelRep image
IMGU // Activates the PixelRep image
5. Enable and view image versions for the PixelRep image as follows:
a. Press the Options key. The following menu appears on the generator’s display:
b. Choose the More item by pressing the adjacent soft key until a + and Rendition
appears next to the item.
c. Press the + and - keys to advance through the image versions.
Alternatively, to enable and view image versions using the command line interface,
enter the following commands:
ISUB 1 // Enables sub images
IVER 1 // Specifies the first image version
-More
Red+
-NoGamma Green+
-Noise Blue+
+More Rendition: 000
Red+
-NoGamma Green+
-Noise Blue+
