322
Chapter 10 Testing HDMI Sink Devices
•
MnslPG - There are a series of these images (5 in total) that are accessible as sub
images through the 882E front panel. Each sub image depicts two hue families (each
hue family contains 4 sub hues (2.5, 5, 7.5, 10). Each set of color blocks arranged along
a horizontal axis depicts the chroma and value variations for one of the sub hues which
is labeled on the left. Each such horizontal set of color blocks is a cancatenation of the
value and chroma variations for that particular hue. These cancatenations can be
derived from the MnslCLR images. In other words, the MnslPG image is a
concatenation of 8 of the MnslCLR images.

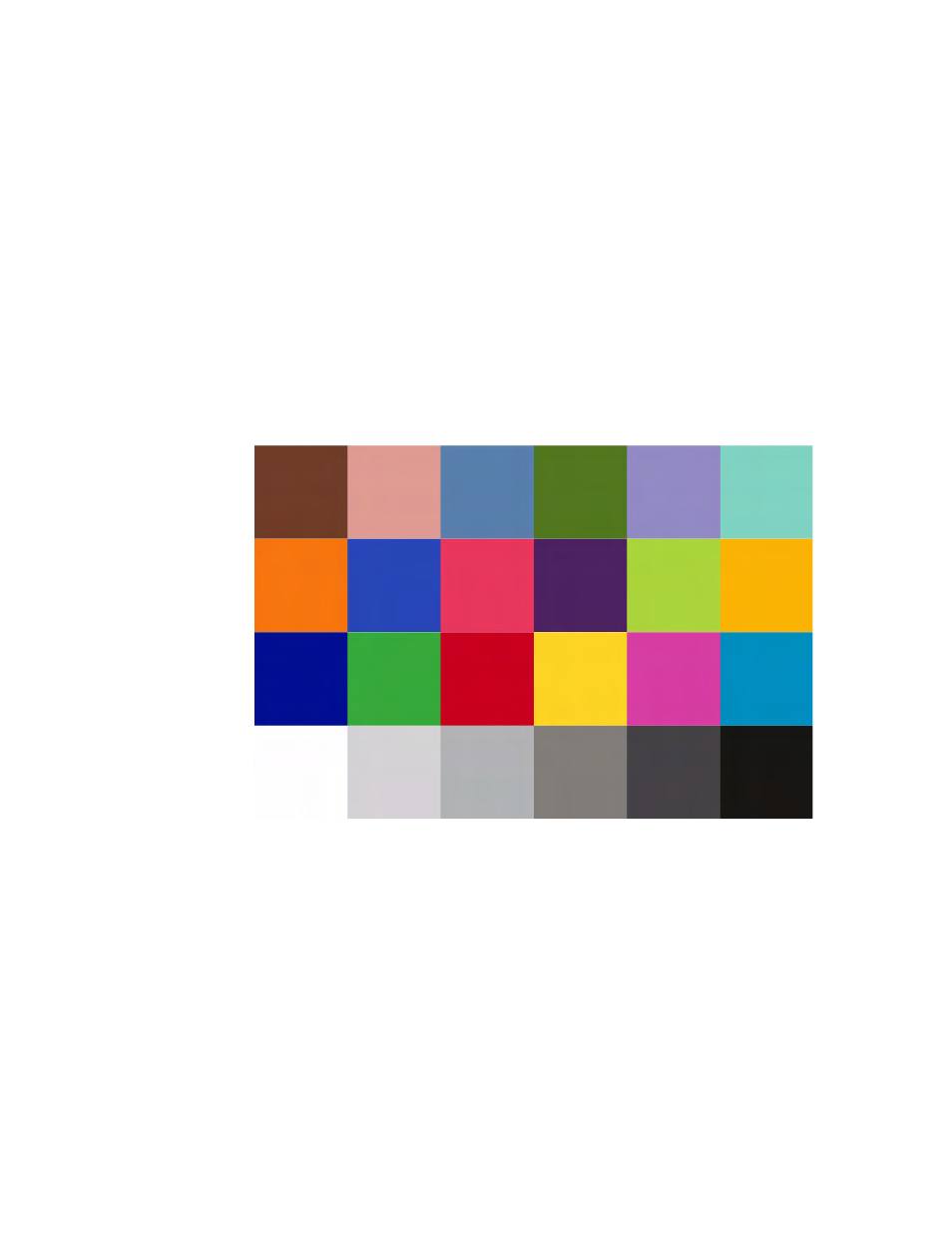

The MnslGM Image is shown below.
Note: The image as shown in this User Guide is not representative of how it will actually
appear on an xvYCC display.
This image can be used with a color probe to determine if the colors rendered on the
xvYCC display match the true color.
