Memory Interface
SC140 DSP Core Reference Manual
2-61
This is the desired result. This effect is achieved in little endian mode through logic in the core, which
modifies the data on the data bus to the memory for both reads and writes.

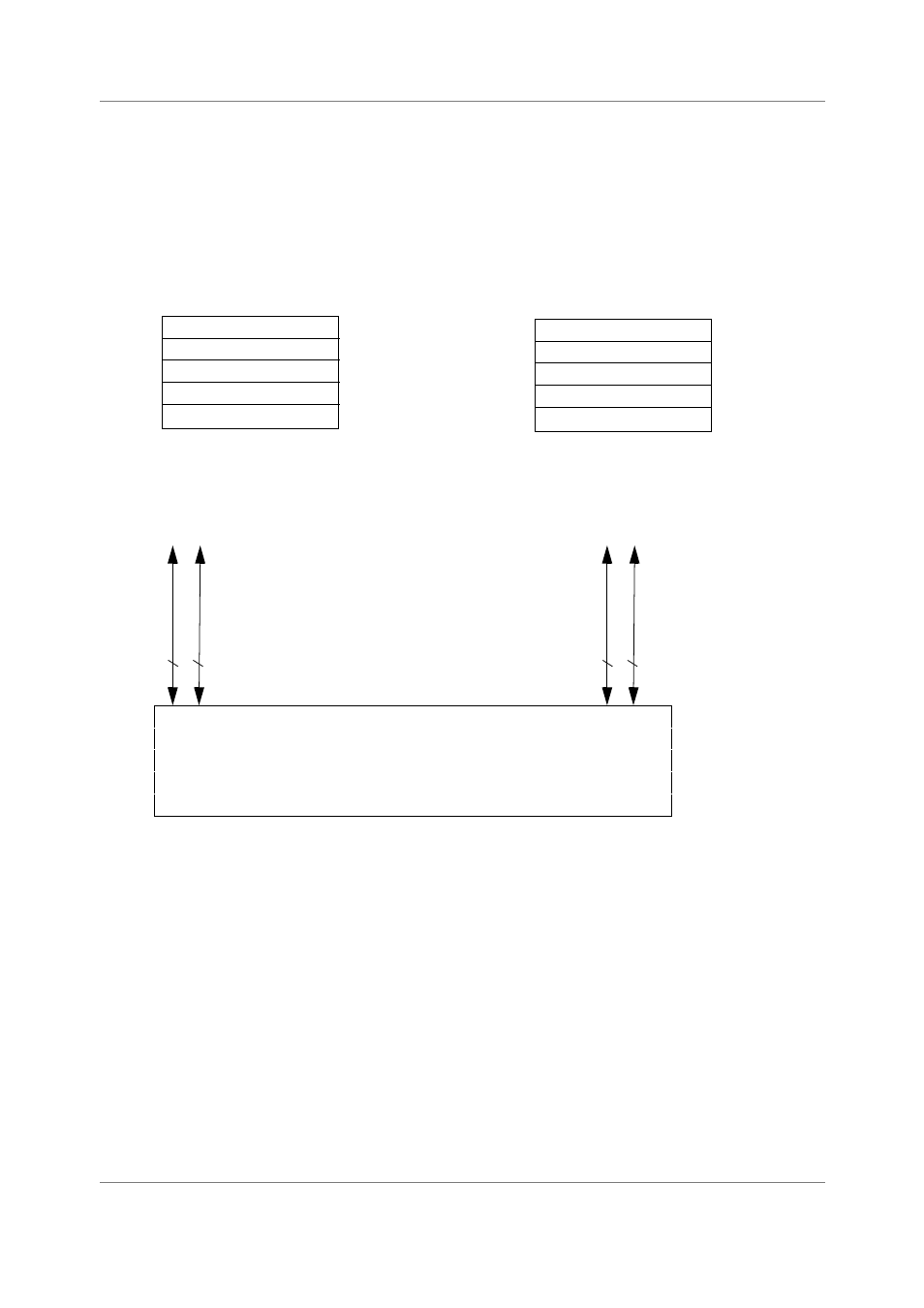

Figure 2-23 shows examples of multi-register data transfers in big and little endian modes.
Figure 2-23. Multi-Register Transfer in Big and Little Endian Modes
Note:
The only exceptions to the behavior described above are the VSL instructions. These instructions
cause source data words from the core to be written to different memory locations in big and little
endian modes. For more information about the VSL instructions, refer to Table 2-27 on page 2-64,
and
Appendix A, “Viterbi Shift Left Move (AGU) VSL,”
