6-58 SC140 DSP Core Reference Manual
ISAP - SC140 Schematic Connection
6.2 ISAP - SC140 Schematic Connection
The ISAP-SC140 connection actually involves an external data memory bank as well. Two connection
schemes are shown: SC140 to single ISAP, and SC140 to multiple ISAPs.
6.2.1 Single ISAP
Connection with the ISAP is illustrated in Figure 6-1 below:

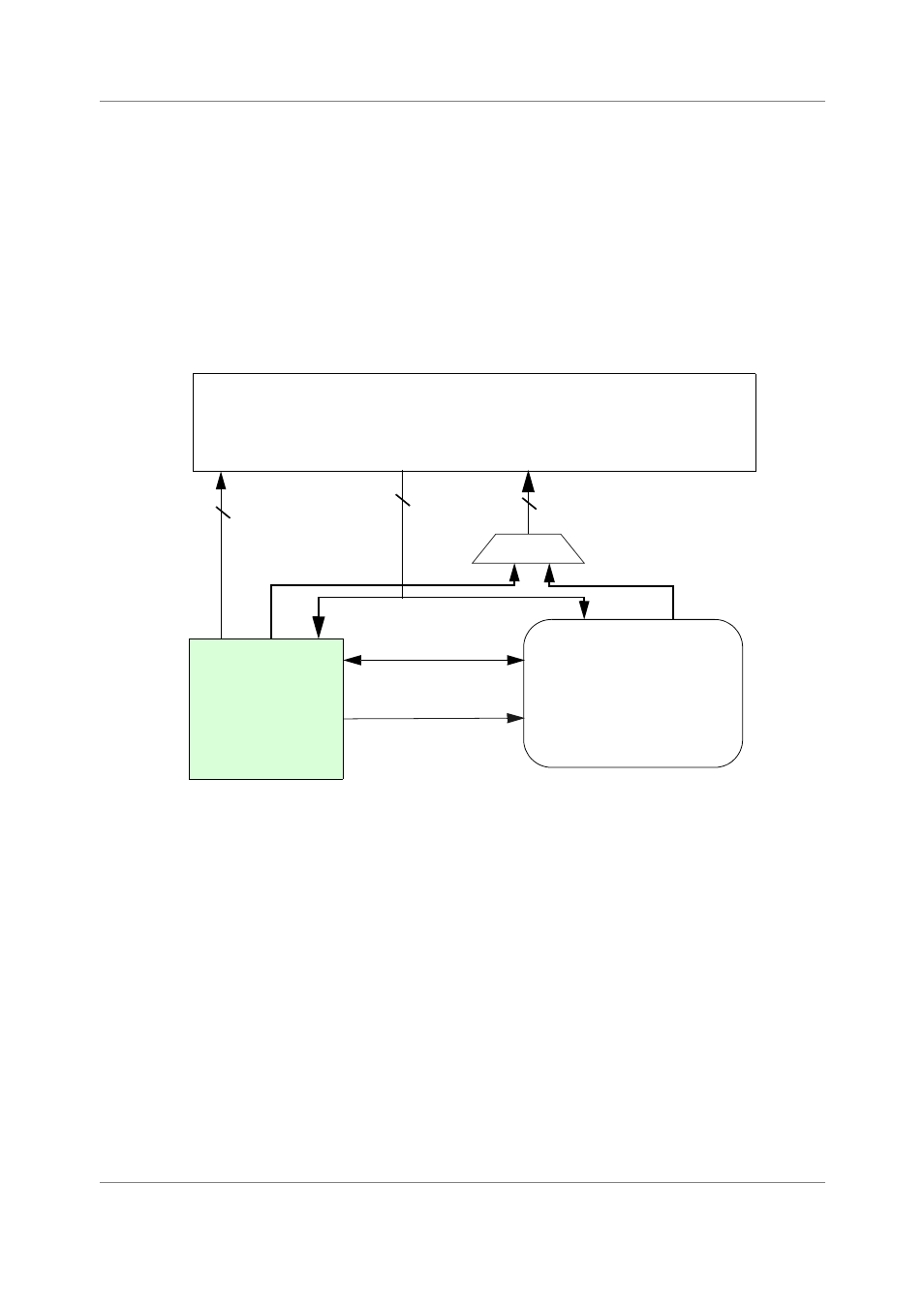

Figure 6-1. Core to Single ISAP Connection Schematic
The ISAP receives instructions from the core via a dedicated ISAP instruction dispatch bus, up to once per
execution set.
The ISAP is connected to the data memory via the same two data buses XDBA and XDBB as the core, in
both read and write directions. The SC140 core is the only address generating master of the data buses. The
ISAP does not send address information to the Data memory, hence the ISAP does not need an AGU. A
data access to or from the ISAP requires a parallel core AGU MOVE instruction that generates the access
on the address and control lines to the memory. The ISAP then drives or samples the data buses
accordingly. The way the ISAP memory access is shared between the core and the ISAP is described in
Section 6.4, “ISAP Memory Access.” .
A
d
d
re
s
s
b
u
s
e
s
(
A
,
B
)
ISAP
Data Memory
Write buses (A, B)
Core to ISAP
instruction dispatch
Read buses (A,B)
ISAP - Core
Register channel
2 2
2
SC140Core
