2-30 SC140 DSP Core Reference Manual
DALU

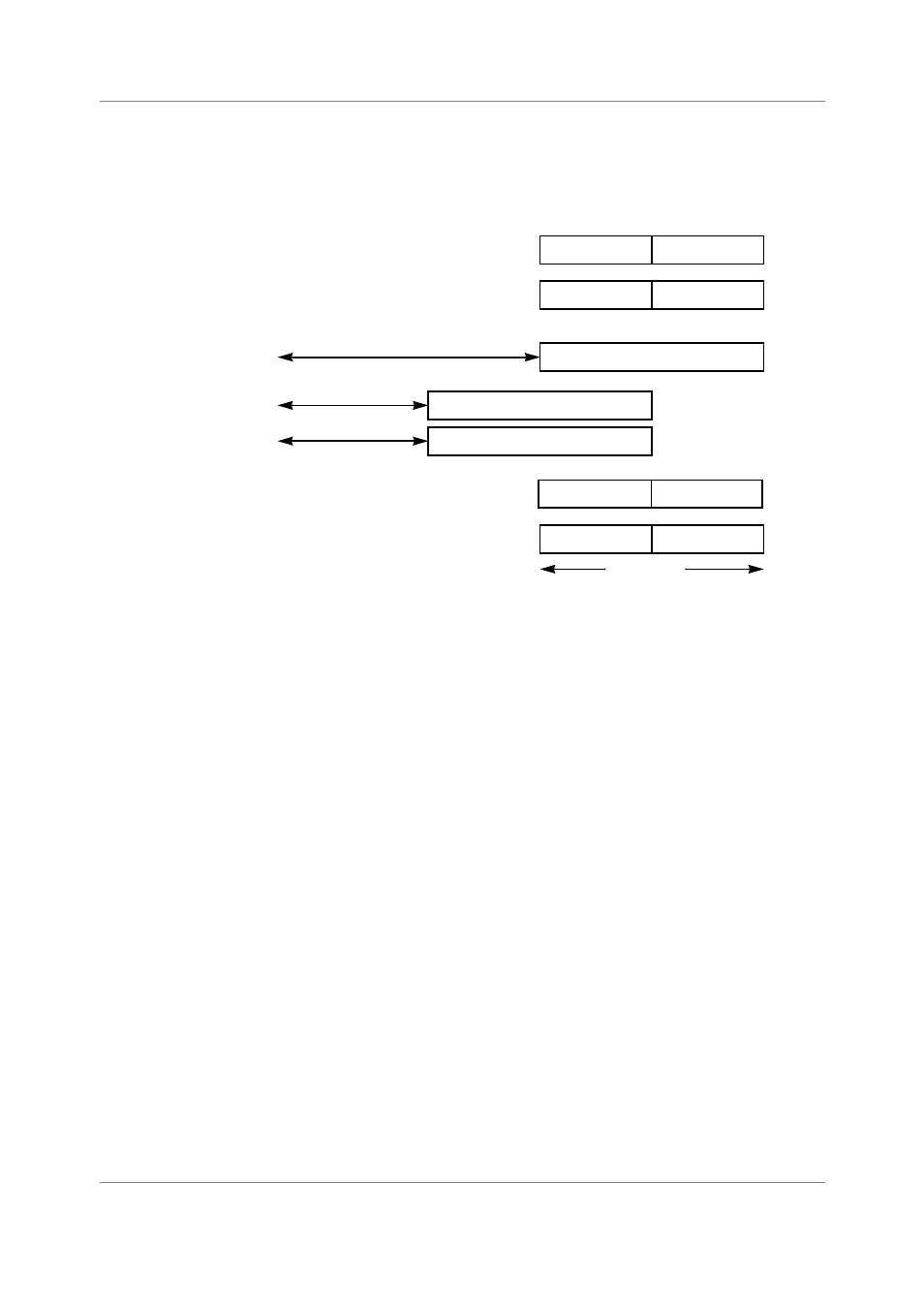

Figure 2-11 illustrates the use of these instructions in the case of an unsigned integer double-precision
multiplication of 32-bit by 32-bit unsigned operands. In this example, only a 32-bit result is generated. The
most significant 32-bits are shifted out. All multiplications are of the “Unsigned x Unsigned” type using
different combinations of high and low portions.
Figure 2-11. Unsigned Integer Double-Precision Multiplication
2.2.2.9 Viterbi Decoding Support
A set of DALU and AGU operations is provided for Viterbi decoding kernels. A special MAX2VIT
operation is defined. This instruction functions as a regular MAX2 instruction and is used to transfer two
16-bit maximum signed values. In addition, the MAX2VIT instruction updates two Viterbi flags (VFs)
which reside in the status register as described in
Section 3.1.1, “Status Register (SR),” on page 3-1.
Complementary AGU move operations are provided (VSL instructions). For a full description of the
Viterbi instructions, see
Appendix A, “Viterbi Shift Left Move (AGU) VSL,” on page A-422.
32 bits
D3.l D3.h
D0.l D0.h
D1.h D1.l
×
=
+
D1.l
×
D0.l
D0.h
×
D1.l
D1.h
×
D0.l
Unsigned
× Unsigned
Unsigned
× Unsigned
impyuu d0,d1,d2
impyhluu d0,d1,d3
imaclhuu d0,d1,d3
aslw d3
D3.l 0
add d2,d3
+
D0.l
