Overview of the Combined JTAG and EOnCE Interface

SC140 DSP Core Reference Manual

4-5

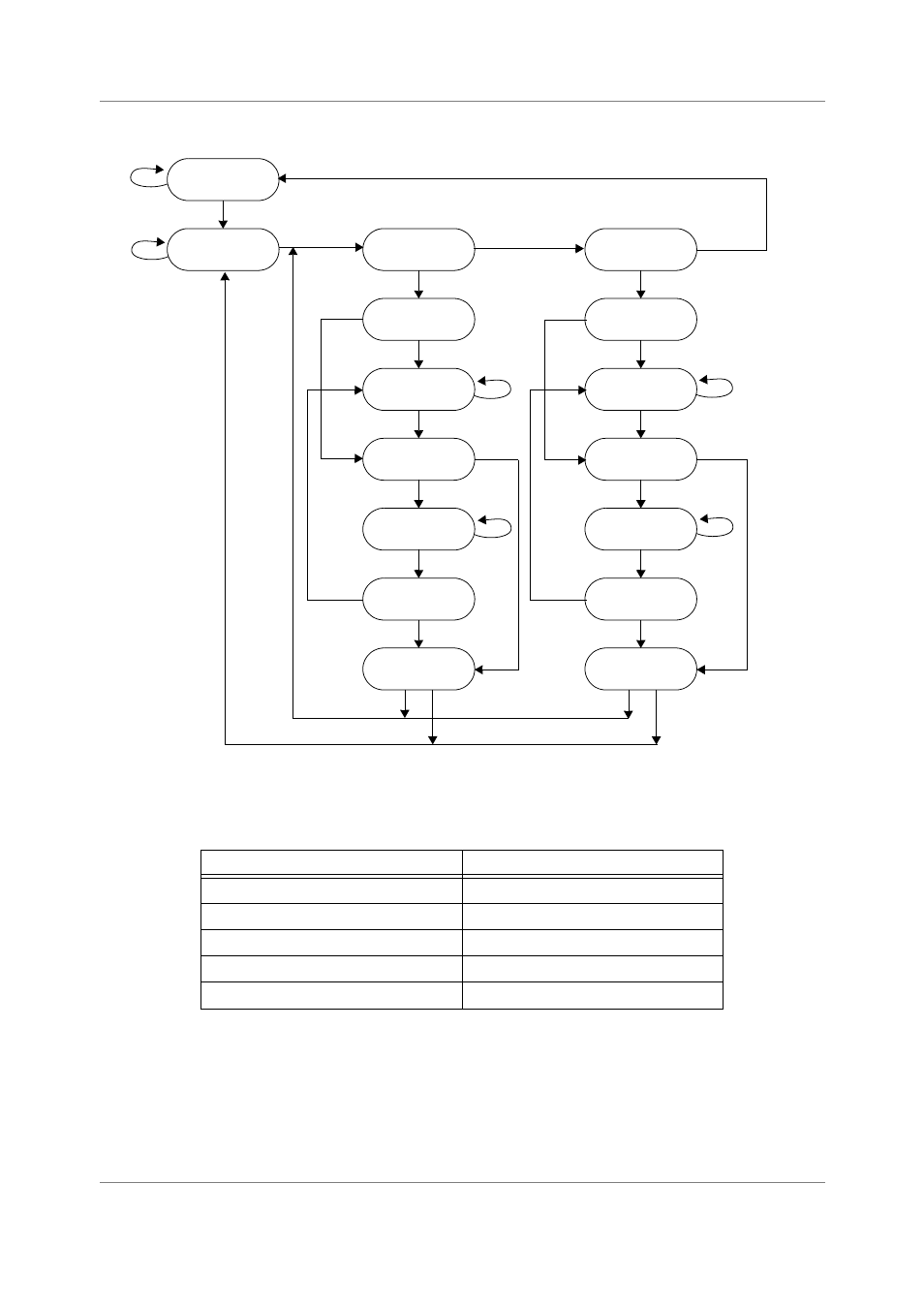

Figure 4-2. TAP Controller State Machine

At power-up or during normal operation of the host, the TAP is forced into the Test-Logic-Reset state
when the

TMS

signal is driven high for five or more Test Clock

(TCK)

cycles.

When test access is required,

TMS

is set low to cause the TAP to exit the Test-Logic-Reset and move

through the appropriate states. From the Run-Test/Idle state, an instruction register scan or a data register
scan can be issued to transition through the appropriate states.

Table 4-3. JTAG Scan Paths

Select-DR Scan Path

Select-IR Scan Path

Select-DR_SCAN

Select-IR_SCAN

Capture-DR

Capture-IR

Shift-DR

Shift-IR

Exit1-DR

Exit1-IR

Update-DR

Update-IR

Test-Logic-Reset

Run-Test/Idle

Select-DR-Scan

Capture-DR

Shift-DR

Exit1-DR

Pause-DR

Exit2-DR

Update-DR

Select-IR-Scan

Capture-IR

Shift-IR

Exit1-IR

Pause-IR

Exit2-IR

Update-IR

TMS=1

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=0

TMS=1

TMS=1

TMS=1

TMS=1

TMS=1

TMS=1

TMS=1

TMS=1

TMS=1

TMS=0

TMS=0

TMS=1

TMS=1

TMS=1

TMS=1

TMS=1

TMS=1
