Tielines
Tieline Status Page
Tieline Status Page
The ‘Tieline Status’ page is available through the ‘System Management’ pane. To access the
‘Tieline Status’ page, click the ‘Tieline Status’ “folder” under the system controller you want to
inspect:

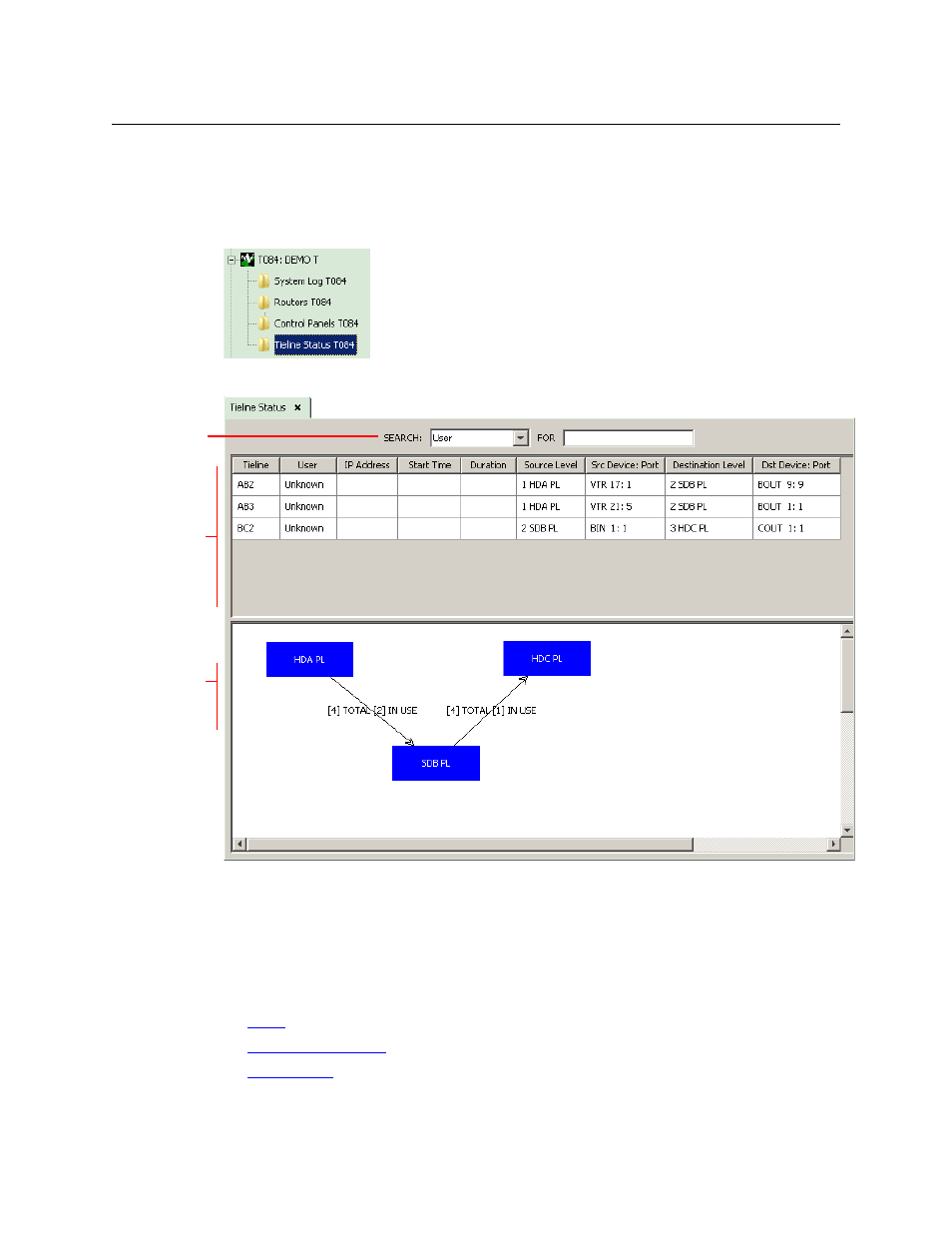

This a sample ‘Tieline Status’ page;
The ‘Tieline Status’ page shows the simple tielines that are in use. By careful inspection, you can
determine the multi-hop tielines (if any) that comprise simple tielines.
 If your system has a large number of tielines, this page might be difficult or impossible to
decipher.
 You might want to use the NV9000 Web Suite to observe tieline status.
There are 3 sections in the page:
• Filters
• List of Simple Tielines
• Tieline Graph
Filter
Simple
Tieline
List
Tieline
Graph
