Control Panels
NV9649

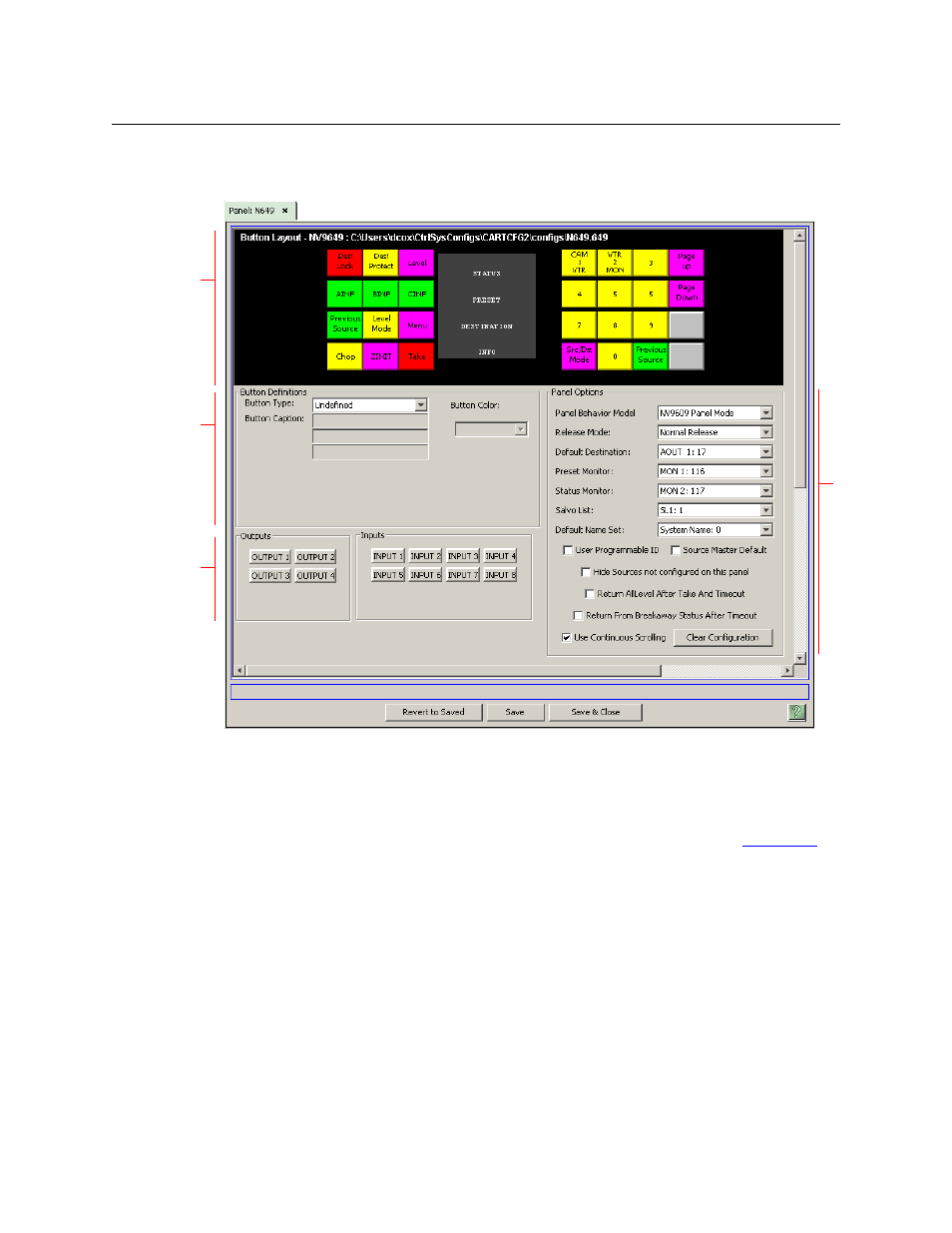

Configuration Page for the NV9609 Model
This is the default NV9649 panel configuration page page for NV9609 mode:
Under the NV9609 model, the NV9649 exactly emulates the NV9609 control panel, which has
the same physical layout of buttons and displays and has roughly the same size as the NV9649.
The major difference between the NV9609 and the NV9649 is that the NV9649 has LCD buttons
whereas the NV9609 has backlit buttons that do not have LCD legends.
The NV9609, and thus the NV9649, is characterized by having a “level mode.” See Level Mode on
page 85. (Refer also to the NV9609 Users’ Guide.)
 Under the NV9609 model, the NV9649 is a standalone panel and is independent of any
NV9648s.
