Control Panels
NV9641 (and NV9641A)
Button Page Table
The page table under the XY/MD models differs from the page table under the paging model.
Under XY/MD, the page table represents a hierarchical (tree) structure of button pages. Under
the paging model, the page table represents a list structure of button pages.
Under the XY/MD Model
This page table lists the pages of the button page tree. It has 3 columns: ‘Page Number’, ‘Page
Name’, and ‘Link to Page Num(s)’.
The button page at the top (or root) of the tree is called “Default.” Initially, the tree has just the
default page, until you add other pages.

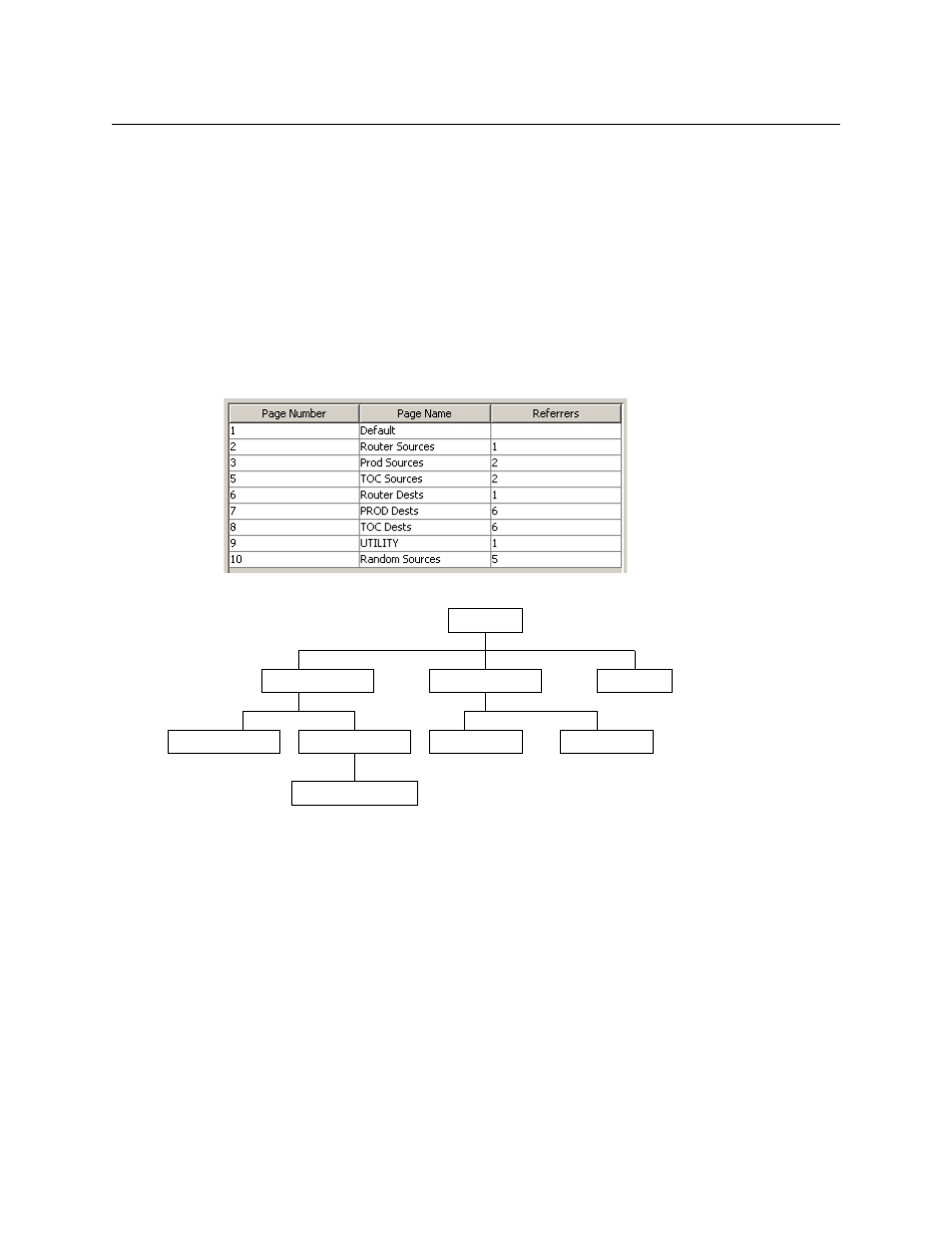

This is a sample of the page table under the XY/MD model:
It represents this tree structure:
During configuration, you will use ‘Navigate’ buttons to create new pages. During configuration,
you can double-click a ‘Navigate’ button to jump to its page.
During operation, panel operators will press navigation buttons, global navigation buttons, or
category buttons to jump to other pages.
Under the Paging Model
The page table lists the pages of the button page list. It has 3 columns: ‘Page Number’, ‘Page
Name’, and ‘Link to Page Num(s)’.
The button page at the top (or root) of the tree is called “Default.” Initially, the tree has just the
default page, until you add other pages.
1 Default
2 Router Sources 6 Router Dests 9 UTILITY
10 Random Sources
3 Prod Sources 5 TOC Sources 7 Prod Dests 8 TOC Dests
