286
Control Panels
NV9642
•
Button definitions.
In this section, configurers make button assignments, using its pull-down menus and text
fields. See
, following.
•
Button page table.
This section displays a list of the individual pages of the tree structure. The button page at
the top of the list (or root of the tree) is called “Default.” See
•
GPIO definitions.
In this section, configurers may define GPIO logic. The control panel has a rear connector
that provides 4 relay outputs and 8 optically isolated inputs. See
on page 197. (Note
that the graphical buttons represent connector terminals and not actual buttons.)
•
Panel options.
In this section, configurers may specify the behavioral characteristics of the panel. See the
NV9642 User’s Guide for detailed information.
•
Display options.
In this section, configurers may partially specify the behavior of the display when the panel
is in X-Y mode.
In X-Y mode, the display shows 3 lines of level information. (The display also scrolls by 3 lines
at a time.) The display options let you specify explicitly what levels appear on those 3 lines.
The specification applies, however, only to the first page of the level display.
You may leave any of the fields in this section blank. If you leave all 3 fields blank, the display
will present levels in their default order.
If you leave only one or two fields blank, those display lines will appear blank, while the line
for which you specified a level will show that level.

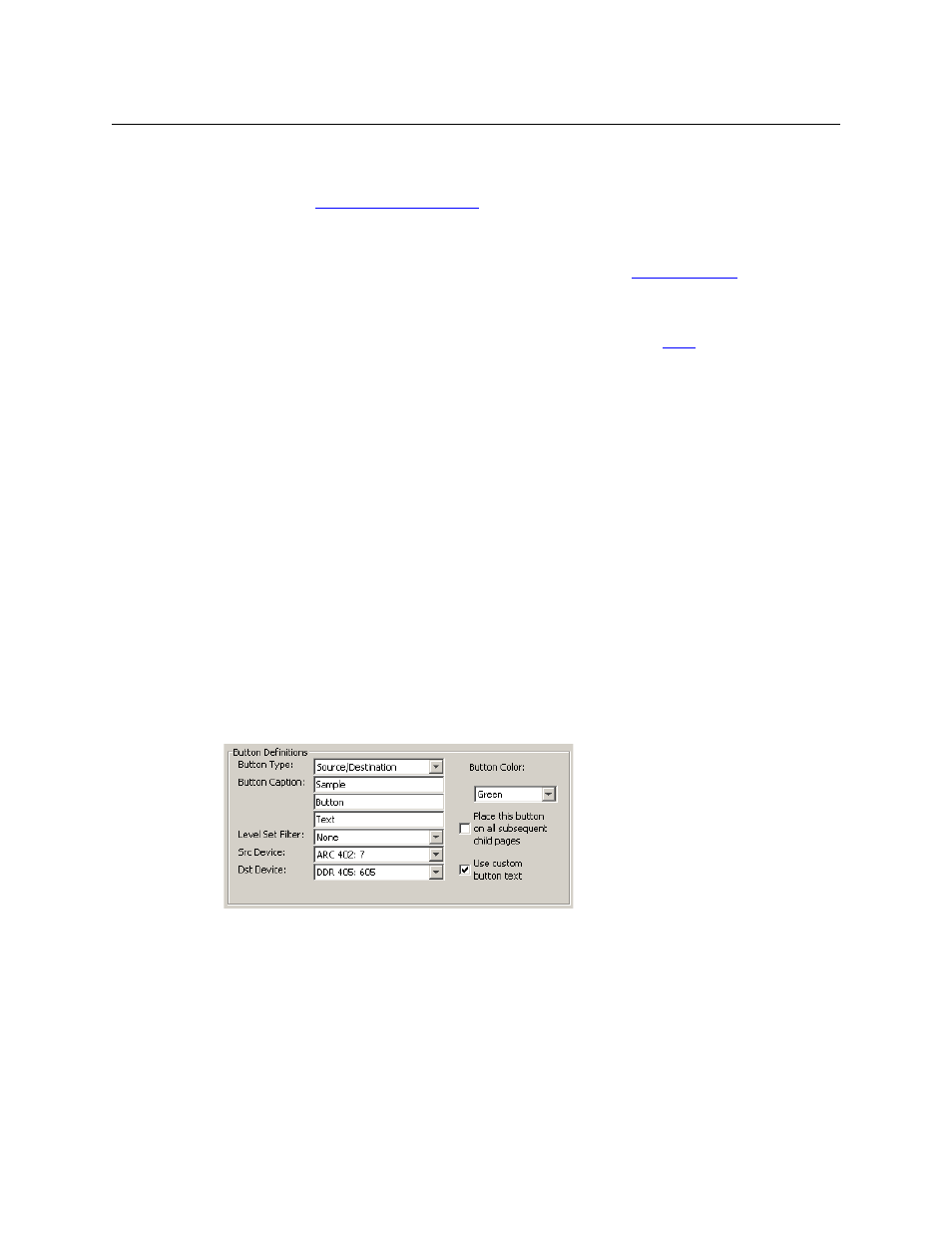

Button Definition Section
The button definitions section has several controls:
The controls vary according to the button type.
Button Type
A pull-down menu where you may select a button type.
Button Caption
Three text boxes in which you can enter three lines of button text up to 8
characters each.
Button Color
A pull-down menu where you can select a button color: amber, blue, green,
grey, purple, red, or yellow.
Check box
“Place this button on all child pages.” If you check this option, the button
you are defining will occur, in the same position, on all pages in the subtree
