NV9000-SE Utilities
User’s Guide
The preset column indicates what source will be routed to a destination when the operator
presses the ‘Take’ button.
The preset column represents either the levels of a source or the levels of multiple sources
under breakaway.
If necessary, use the available scroll button or buttons in this section to view status other levels.
In the device list section, click ‘Source’ to view a list of source devices or click ‘Destination’ to
view a list of destinations.
Optionally, click the ‘New/Classic’ button to toggle between the list view (of devices) and the

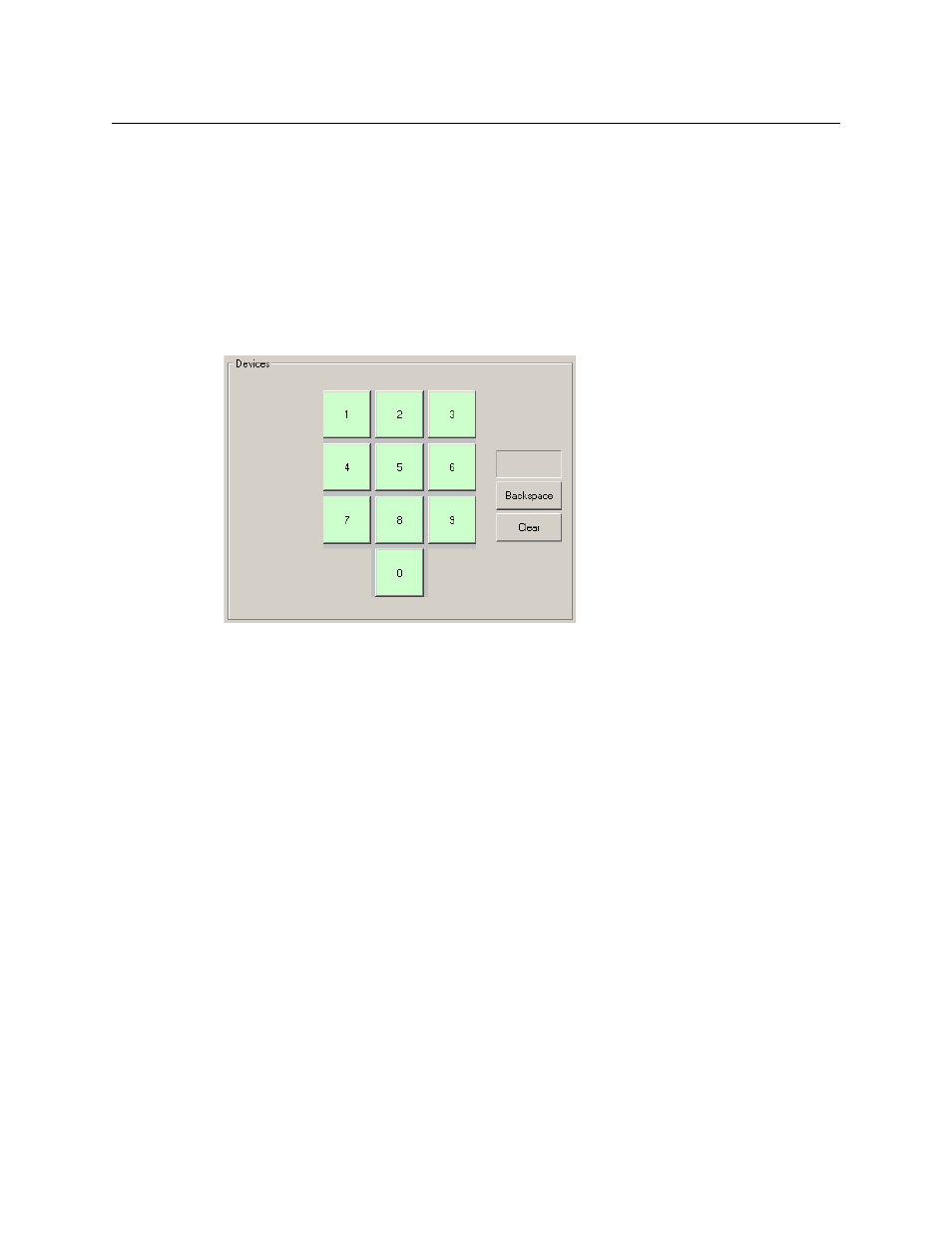

numeric keypad. This is the numeric keypad:
Use the keypad in conjunction with a selected category to perform category/index device
selection.
Other Page Features
The ‘More Info’ button becomes enabled when the GUI gives an error message, a warning, or
some other kind of message. Press ‘More Info’ to see the additional information.
The ‘Take State’ section gives status messages that are issued when the operator performs takes.
The messages are often failure messages. When a status message is displayed, the operator can
press the ‘More Info’ button to see take status details.
All 5 ‘User’ buttons are configurable. There is a small set of functions that can apply.
To perform a simple take, select a destination, select a source, and press the red ‘Take’ button.
