352
Control Panels
RP32

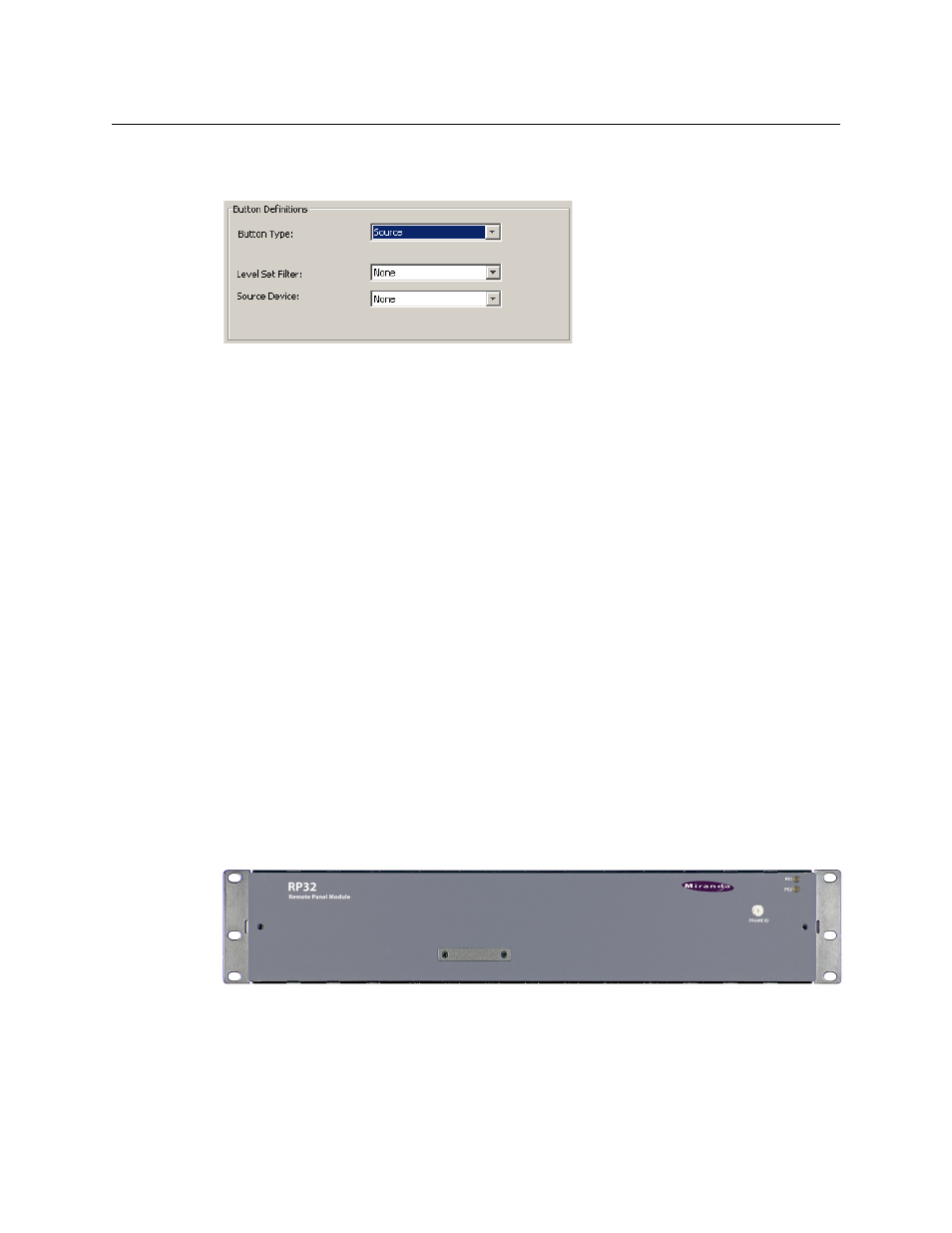

Button Definitions
The button definitions section has several controls that vary according to button type:
The controls vary according to the button type. There is one fixed field:
Button Type A pull-down menu where you may select a button type.
When you choose a button type, additional drop-down menus can appear, depending on the
button type, allowing you to further specify the button’s behavior. Available options and selec-
tions vary from button type to button type.
Button Types
These are the button types available for NVRP16 configurations:
Destination Level Salvo Source
 Note that other panels might have button types with the same names but that perform
different functions.
RP32
Hardware Description
The RP32 (which is called NVRP32 in NV9000-SE Utilities) is not an NV9000 control panel. The
RP32 is a “remote panel module” in the compact router series. The combination of an RP32 and
a CR series panel (such as a CP3232) normally functions as a “remote panel” in a CRSC compact
router system. However, a remote panel can also be used as an NV9000 control panel.
 The RP32 is the configurable part of the pairing.
The RP32 has no I/O connectors and no video reference connectors. Otherwise, the RP32 is the
same size as, and resembles, a 2RU compact router.
These are illustrations of the RP32:
Fig. 8-5: RP32, Front View
