The ec9710 gui – Grass Valley NV9000-SE v.5.0 User Manual
Page 384
366
Control Panels
EC9710
The EC9710 GUI

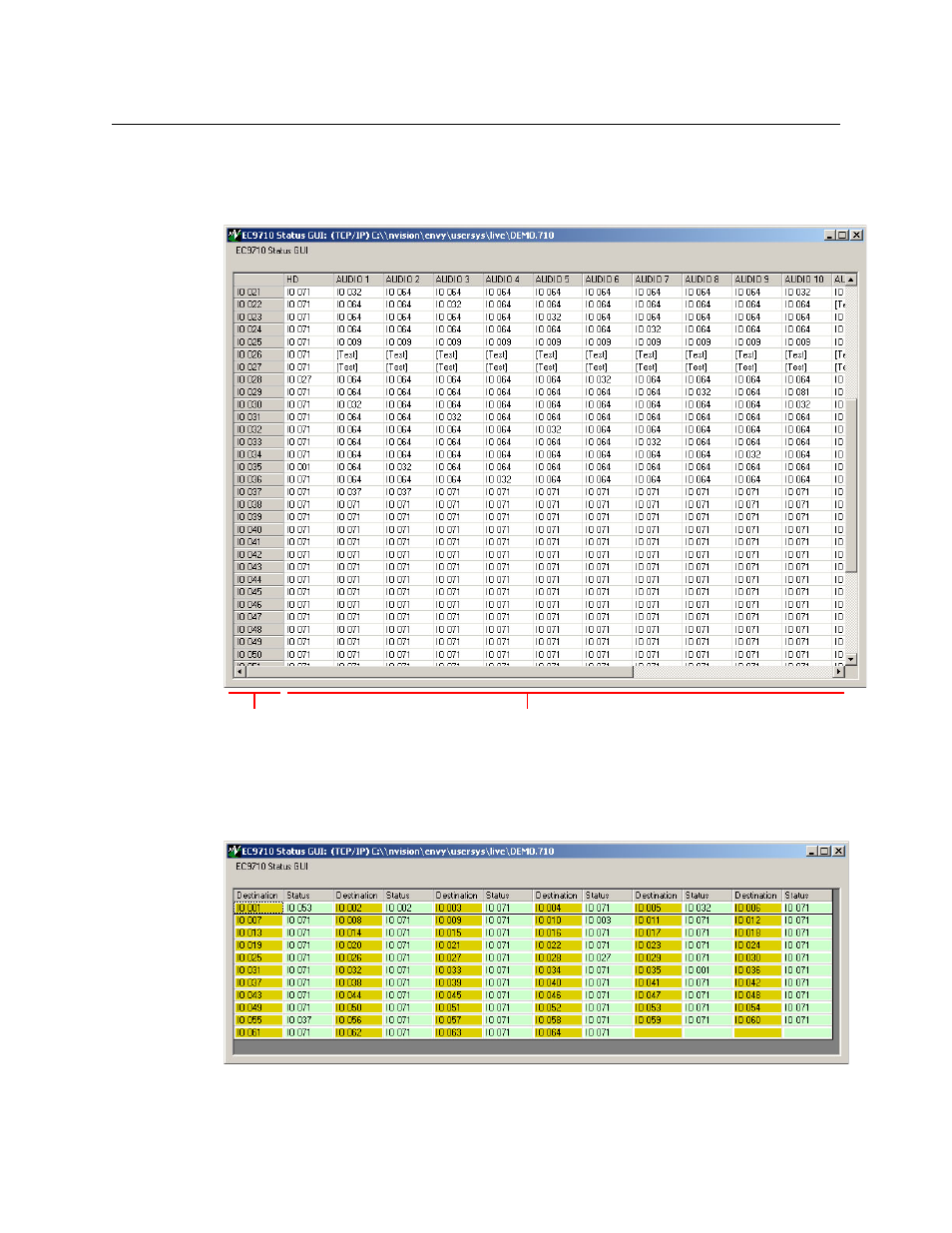

The EC9710 is a very simple status GUI. It has two configurable forms. The first form is a list of
devices (which are specified in the GUI’s configuration):
The rows of the table are the destinations specified in the GUI’s configuration. The columns in
the table are the levels specified in the GUI’s configuration.
The second form is also a list of devices, but shows just the source at the primary level for each
destination:
All the entries are pairs. The destination field is yellow; the source field is green.
The number of column pairs is a configuration parameter.
Levels (Source Names at Each)
Device
Names
