367
NV9000-SE Utilities
User’s Guide
(The primary level is the first level in the level set to which a device belongs.)
EC9710 Configuration Page
The EC9710 can be configured in two ways:
• As a multi-level display, where each row of the display is one (destination) device and the
columns show the sources routed to the levels configured for the GUI.
• As a primary-level display, where each destination is paired with the source that is routed on
its primary level. You can specify the number of pairs in each row.

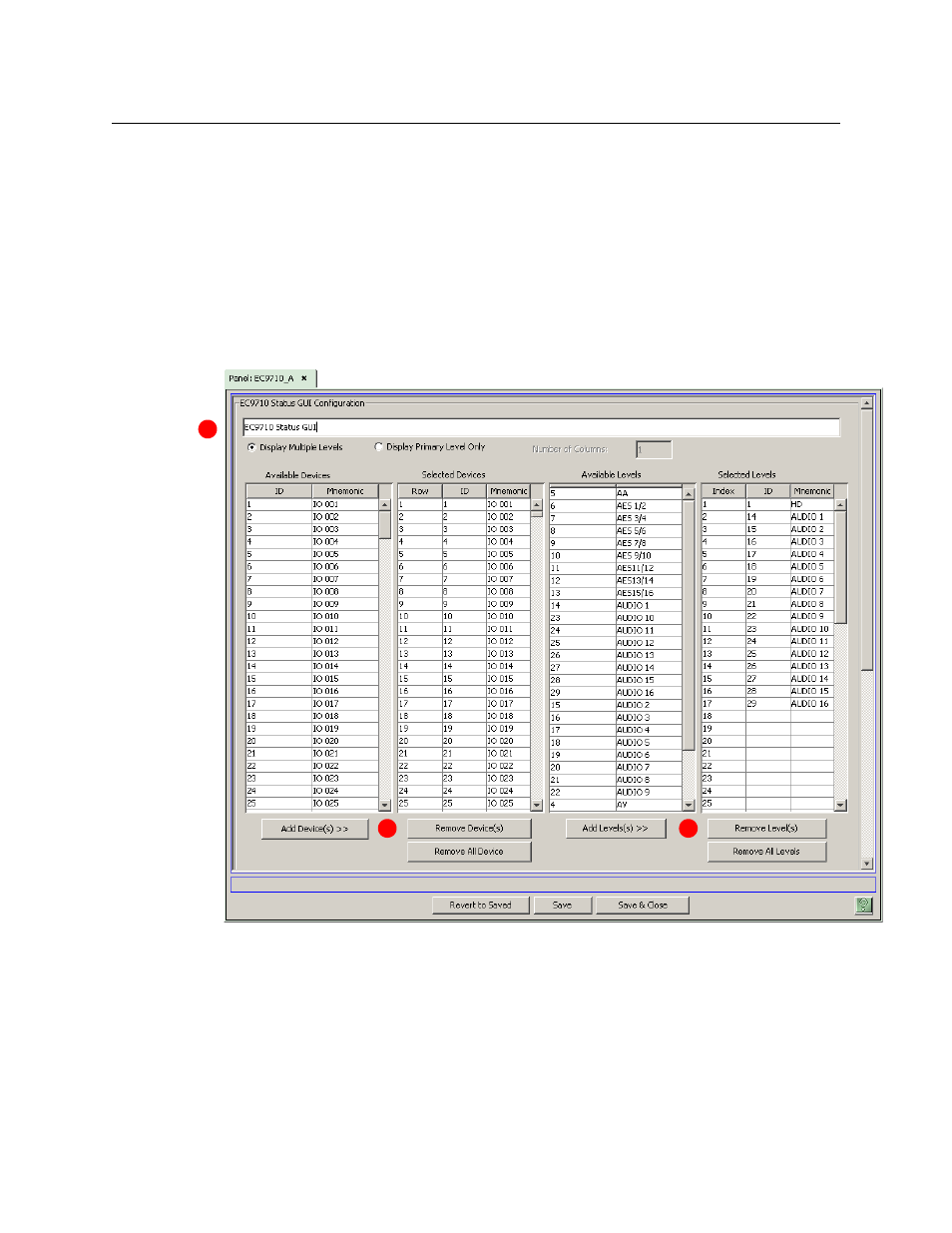

This is the EC9710 configuration page, as it appears for the configuration of a multi-level display:
1
2 3
