Regions of the Configuration Page

There are 3 main regions:

•

A graphic representation of the panel (NV9616 or NV9608).

At the left are the 16 (or 8) LCD button proxies. These represent either MD destinations or
salvos. You can click the line of text in the middle of this section to toggle between MD desti-
nation entry and salvo entry. The text changes accordingly:

At the right are the 24 function buttons. The 10 yellow buttons are fixed category buttons.
The other 14 function buttons are completely configurable.

•

Button definitions.

In this section, configurers make button assignments, using its pull-down menus and text
fields. See

Button Definitions

, following.

•

Panel options.

In this section, configurers may specify the behavioral characteristics of the panel. See the
NV9608/NV9616 User’s Guide for detailed information.

Button Definitions

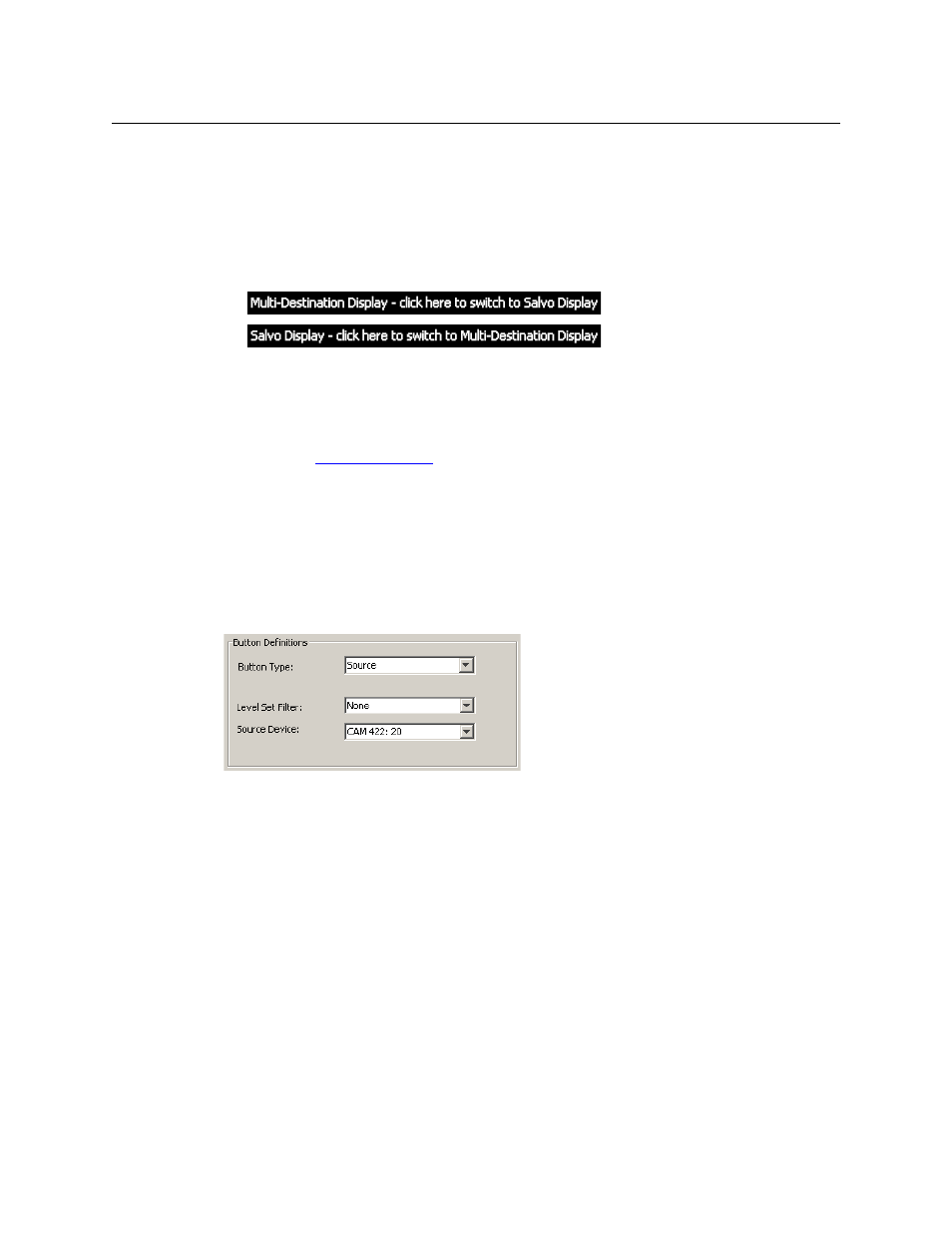

The button definition section configures the button you have selected in the image of the
panel:

When you choose a button type, additional drop-down menus can appear, depending on the
button type, allowing you to further specify the button’s behavior. Available options and selec-
tions vary from button type to button type.

These are the button types available for NV9616 and NV9608 configurations:

Broadcast
