NV9000-SE Utilities
User’s Guide
Commitment Buttons
Three buttons at the bottom of the configuration page are self-explanatory and present on
most configuration pages:
• Revert to Saved. Press this button if you want to discard any recent changes you have made.
• Save. Press this button to commit all your recent changes.
• Save & Close. Press this button to commit all your recent changes and dismiss the page.
These actions are not reversible.
Clear Configuration Button
The ‘Clear Configuration’ button, located in the ‘Panel Options’ section, completely empties the
configuration, reverting to default values. The button does not, however, change the selected
behavioral model.
Configuration Page for Client Mode

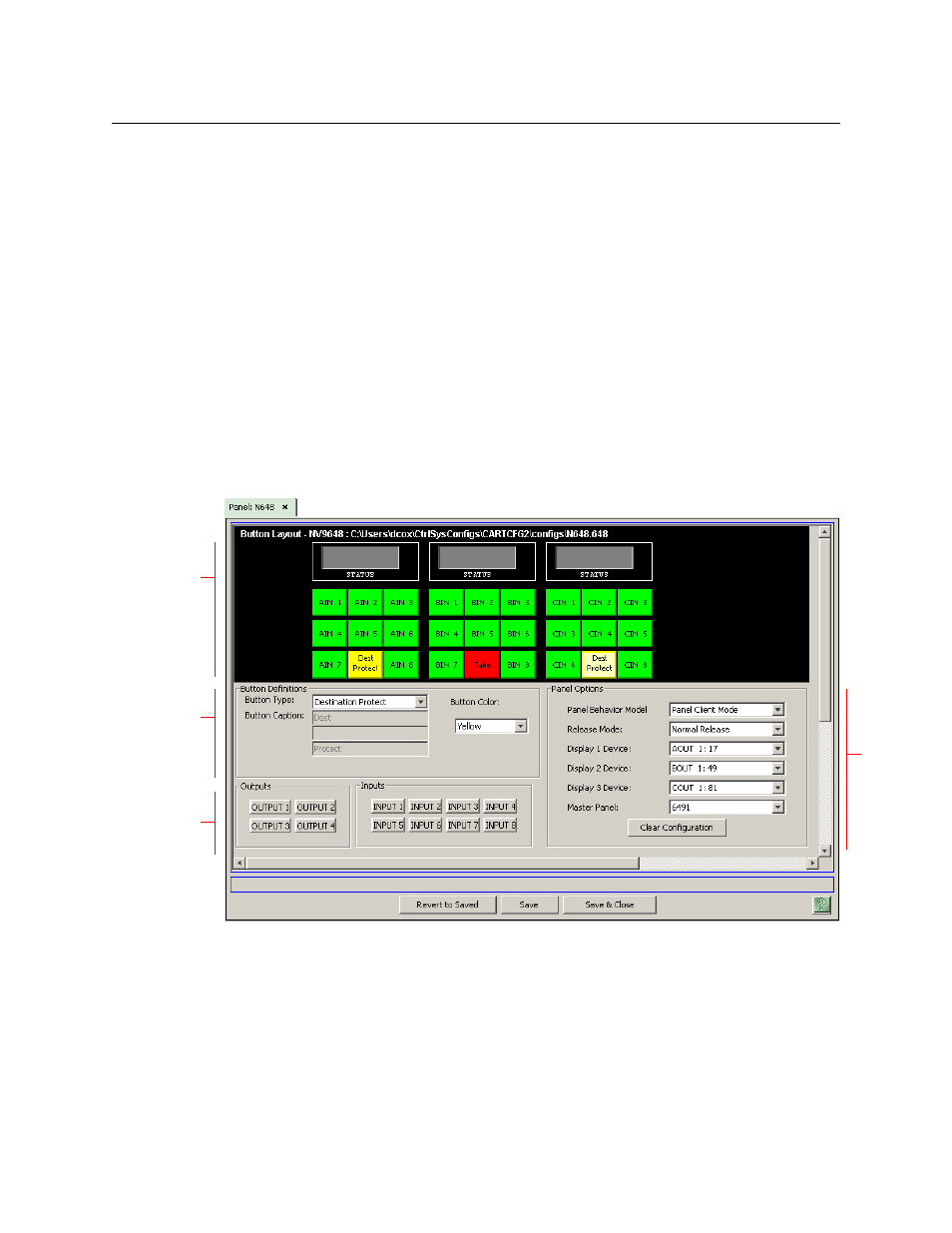

This is a sample NV9648 panel configuration page for client mode:
The panel has 3 sections that are independent control units. Each unit — having one display and
9 buttons — corresponds to a destination.
One or more NV9648s (clients) operate with an NV9649 (server). The NV9649 can assign a desti-
nation to any of an NV9648’s sections and also assign sources to the source buttons of any of an
NV9648’s sections.
In client mode, clients show current sources in their displays when the NV9649 is in source mode
and show the sections’ destinations when the NV9649 is in destination mode.
Button
Definition
Section
GPIO
Definitions
Panel
Options
Panel
Image:
