NV9000-SE Utilities
User’s Guide
Button Page List
This section lists the pages of the button tree. It has 3 columns: Page Number, Page Name, and
“Link to Page Num(s).”
The button page at the top (or root) of the tree is called “Default.” Initially, the tree has just the
default page, until you add other pages.

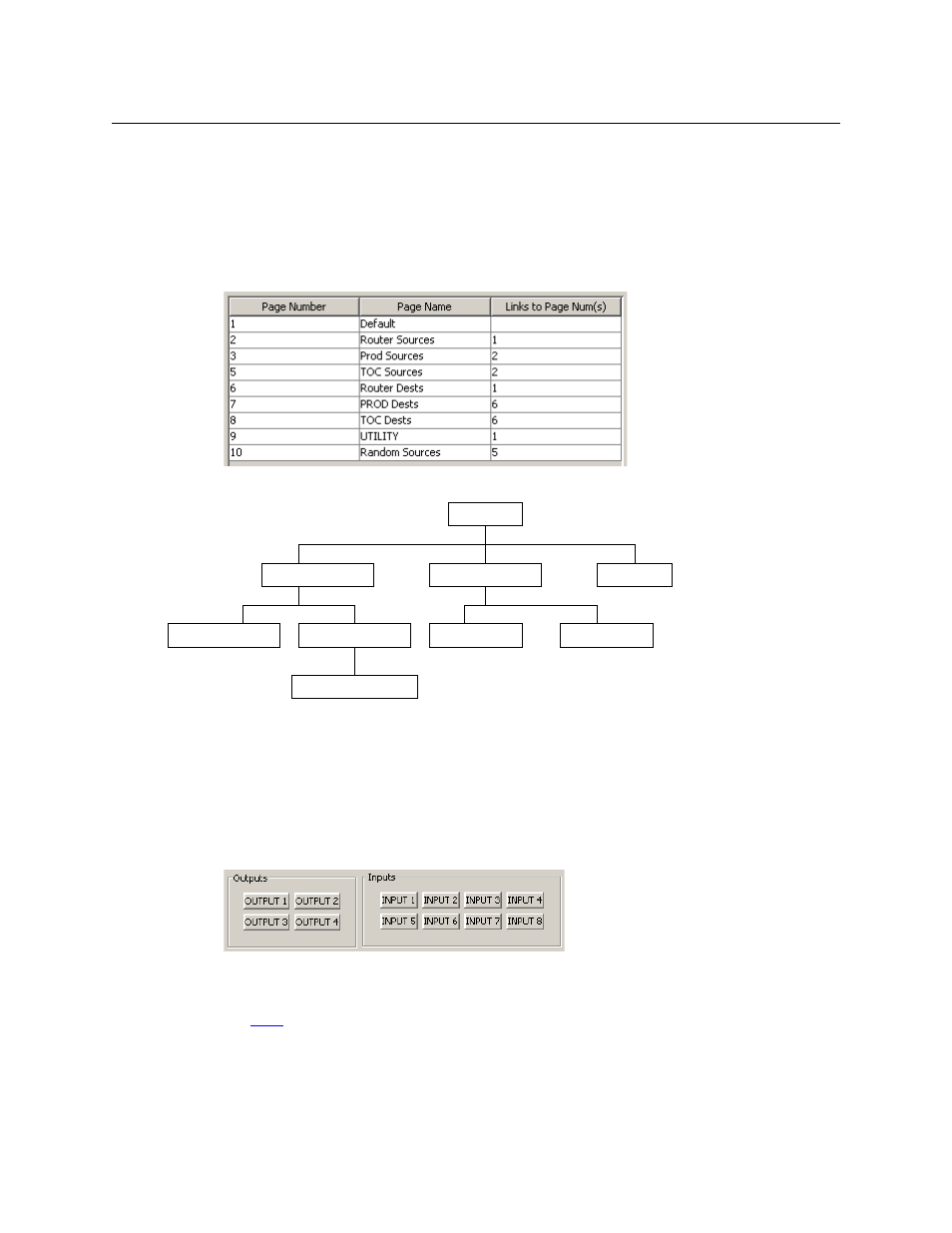

This is a sample of a button page list:
It represents this tree structure:
During configuration, you will use ‘Navigate’ buttons to create new pages. During configuration,
you can double-click a ‘Navigate’ button to jump to its page.
During operation, panel operators will press navigation buttons, global navigation buttons, or
category buttons to jump to other pages.
Tally (GPIO) Window
Below the tree window is the tally section of the configuration page.
It has two sections: inputs and outputs. By clicking on one of the input or output buttons, you
can configure that input or output. (These buttons represent the DB25 connector at the rear.)
See GPIO on page 197.
Single-Destination Mode
Single-destination mode (a.k.a., “single-bus” or “button-per-source” mode) can be emulated in
either X-Y mode or MD mode.
1 Default
2 Router Sources 6 Router Dests 9 UTILITY
10 Random Sources
3 Prod Sources 5 TOC Sources 7 Prod Dests 8 TOC Dests
