NV9000-SE Utilities
User’s Guide
NV9647V Configuration Page

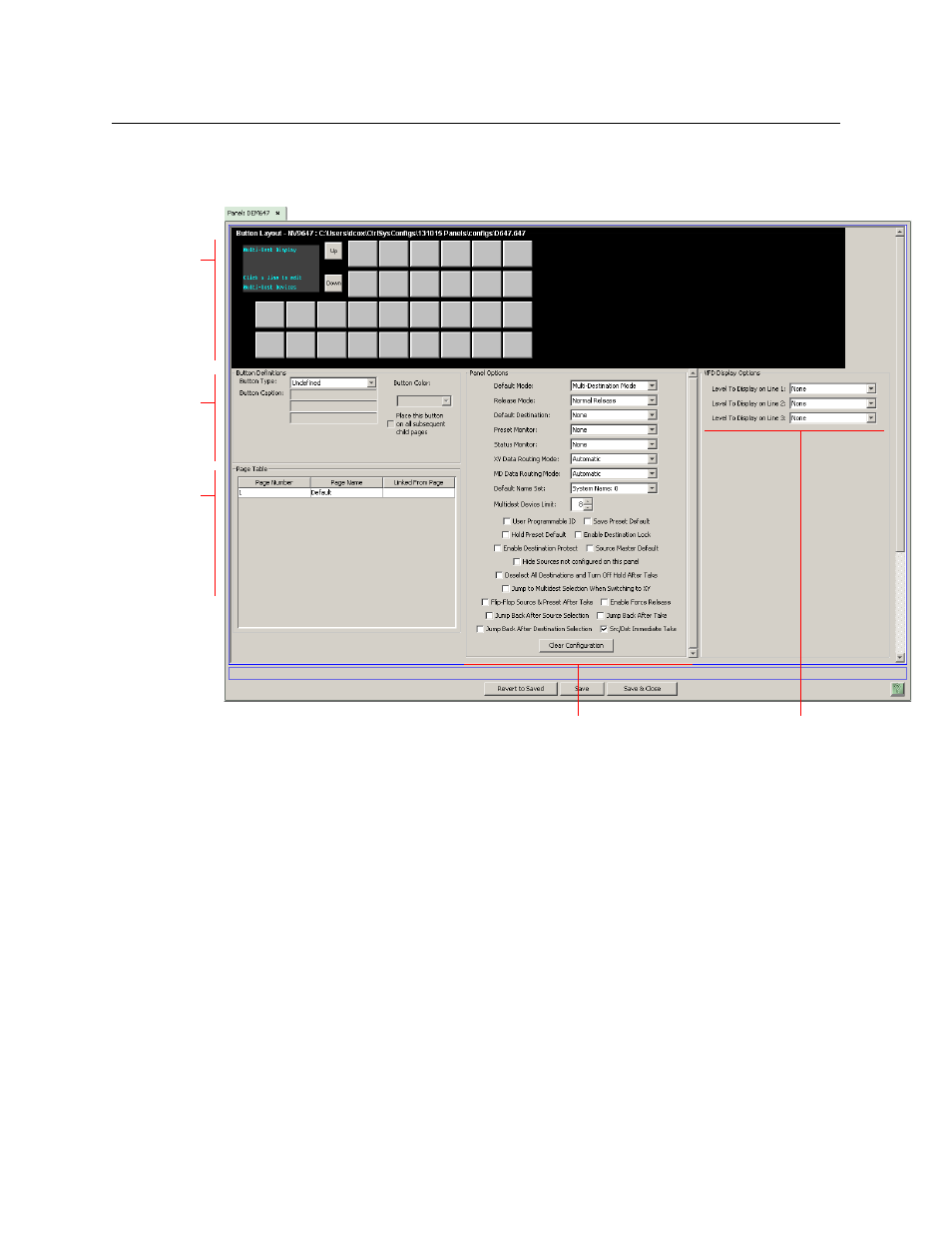

This is the default NV9647V panel configuration page:
After you have configure the panel’s buttons, and the panel options, the page will have
changed, showing, in particular, the text of the buttons you have defined.
At the bottom of the page are 3 important buttons: ‘Revert to Saved’, ‘Save’, and “Save & Close’.
The ‘Save’ button commits modifications you have just made. The ‘Revert to Saved’ button
restores the last saved version of the panel configuration, canceling any changes you just made.
‘Save & Close’ saves the panel configuration and dismisses the page.
Regions of the Configuration Page
There are 5 main regions:
• A graphic representation of the NV9647V panel.
On the right are 30 function button images. Click on a button to assign a function to it. In
some cases, you can click or double-click certain buttons to execute the button function.
Double-clicking a ‘Navigate’ button, for instance, causes the button’s “subpage” to appear.
Double-clicking a ‘Page Up’ or ‘Page Down’ button (not the same as a fixed up or down but-
ton) allows you to scroll through multi-destination pages that are represented in the image
of the alphanumeric page.
Click the display section of the panel image to open the multi-destination editor.
Button
Definition
Section
Button
Page Table
Display Options
Panel Image
Panel Options
