343
NV9000-SE Utilities
User’s Guide

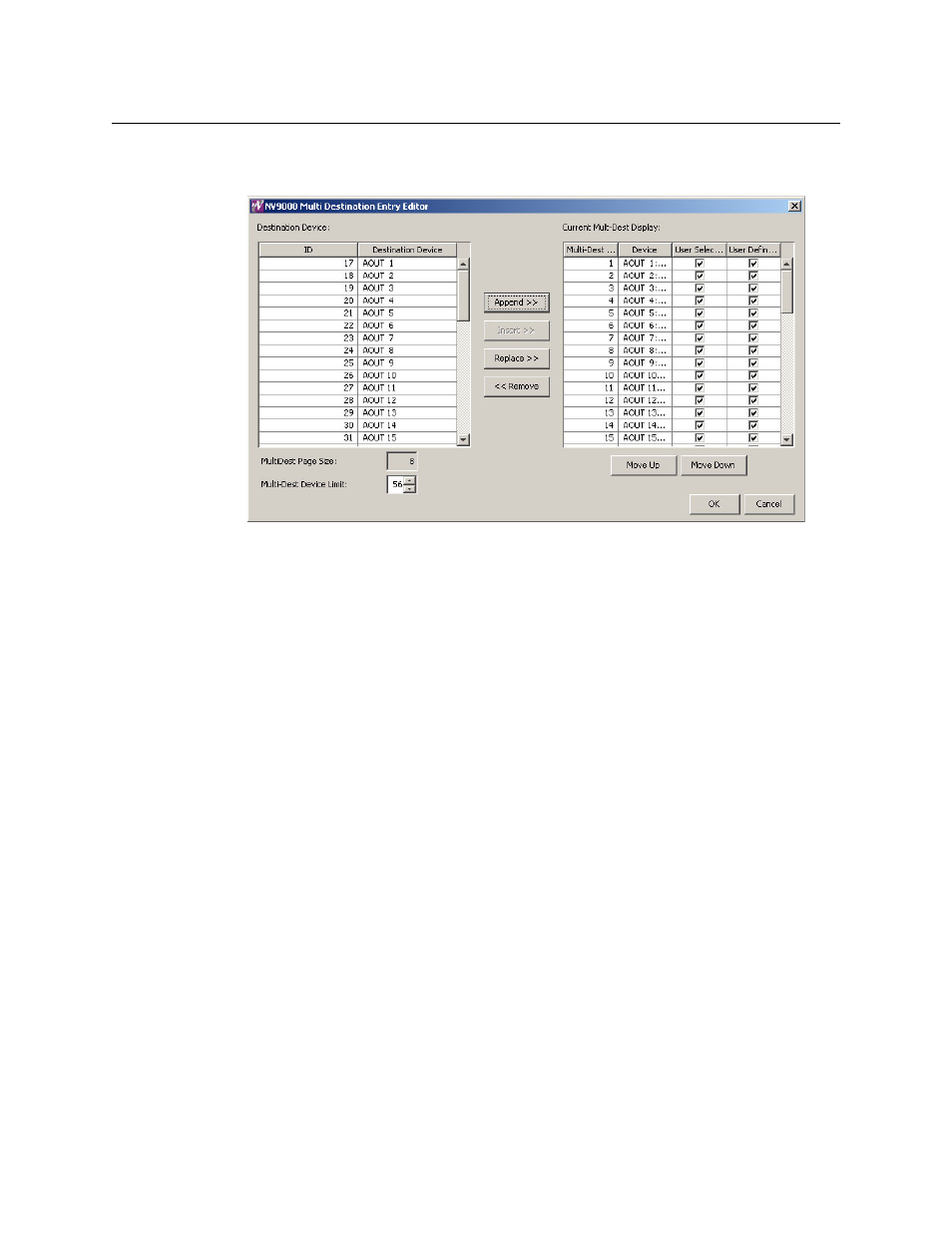

2 Click ‘Edit Multi-Dest Devices’ to define or re-define MD devices. The multi-destination entry
editor appears:
On the left is a list of all destinations defined in the NV9000 system. On the right is a table of the
MD destinations you are defining. The number of rows in this table is equal to the maximum
number of MD destinations your configuration allows.
To define an MD destination, select a destination on the left and copy it, using either the
‘Append’ button, the ‘Insert’ button, or the ‘Replace’ button, to the right.
The ‘Remove’ button removes highlighted MD destinations from the right.
At the bottom right, are ‘Move Up’ and ‘Move Down’ buttons. You can use these to adjust the
position in the list of any MD destination.
Global Navigation
NV9000-SE Utilities supports what are known as “global navigation” pages for NV9654 control
panels. Global navigation pages are templates
— patterns — that may be used and reused in the
creation of NV9654 tree-structured configurations.
There are two types of global navigation pages: ‘Suffix’ and ‘Navigate’. A ‘Navigate’ template can
define a single button page or an entire subtree of pages. A ‘Suffix’ template is a single page
only. The buttons allowed in a suffix template are a small subset of the buttons supported by
NV9654 configurations. Navigate templates support all functions except ‘Global Navigate’. That
is because templates cannot be nested (i.e., recursively defined).
Templates themselves are
not NV9654 configurations.
NV9575-VF
Product Description
 The NV9575-VF is not a control panel. Its inclusion in NV9000-SE Utilities’ control panel list
and configuration pages is a matter of convenience. Please refer to the NV9575-VF User’s
Guide (UG0023-xx) for detail.
