324
Control Panels
NV9649
This is the NV9649 configuration page for which category and suffix pages have been chosen:

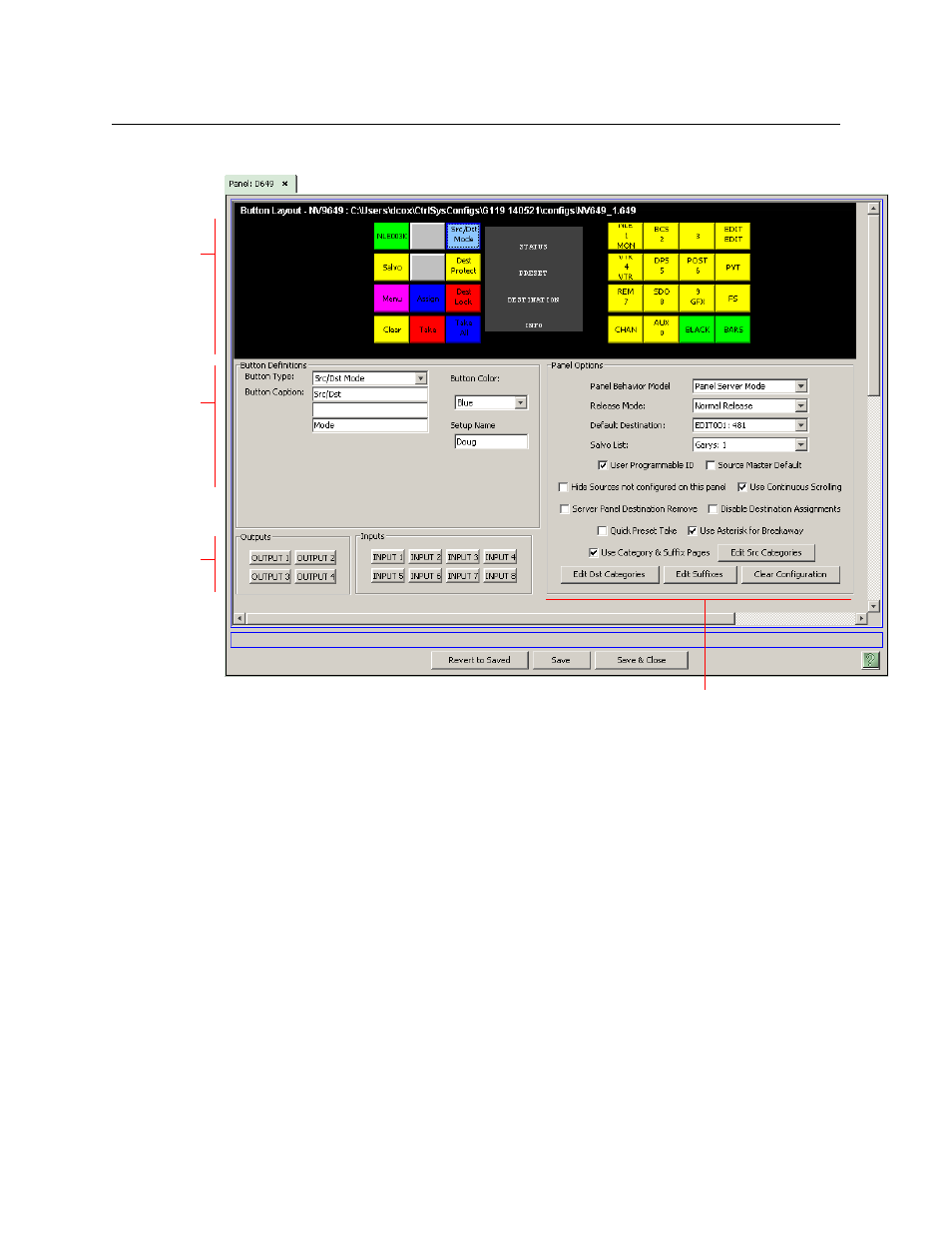

Fig. 8-2: NV9649 Configuration Page (for Server Mode, using Category and Suffix Pages)
The NV9649 (the “server”) operates in conjunction with one or more NV9648s (the “clients”). The
NV9649 can assign a destination to any of an NV9648’s three control sections and also assign
sources to the source buttons of any of an NV9648’s control units.
(The NV9648 has 3 sections that are independent control units. Each unit — having one display
and 9 buttons — corresponds to a destination.)
The NV9648s show current sources in their displays when the NV9649 is in source mode and
show the sections’ destinations when the NV9649 is in destination mode.
 The NV9649’s panel ID is referenced by the configurations of the NV9648s. Those references
link the NV9648s to the NV9649.
Category Lists and Category Pages
Under the ‘Panel Server’ model, panel operators may select devices using either a category list
or category pages. (The two methods are mutually exclusive.)
• Configuring the Category List
Go to a server-mode NV9649 configuration page. Uncheck the panel option ‘Use Category &
Suffix Pages’.
Button
Definition
Section
GPIO
Definitions
Panel Options
Panel
