239
NV9000-SE Utilities
User’s Guide
Secondary Modes
Additional but secondary modes of panel operation are:
• Setup mode — where the NV9605 is freshly powered up, but disconnected from the net-
work. In this mode, you can set the panel ID and perform a few diagnostic tasks.
• Menu mode — pressing a menu button places the NV9605 in “menu” mode. In menu mode,
the buttons lose their normal functions and become part of a menu that changes as needed
during menu operation.
Other NV9605 Functions
The NV9605 can be configured to perform the following additional functions:
• System salvos.
• Broadcast data routing.

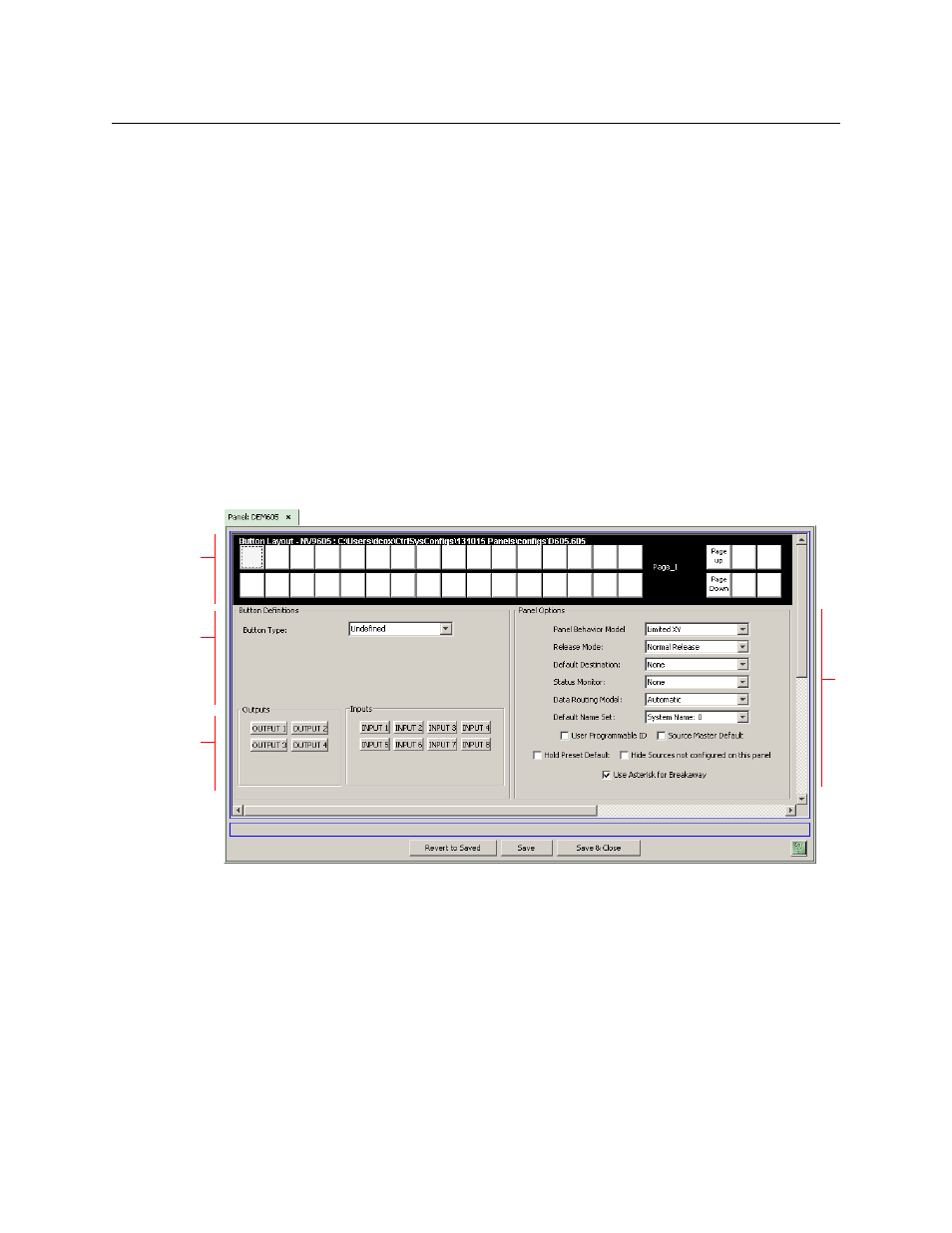

NV9605 Configuration Page
This is the default NV9605 panel configuration page:
After you have configure the panel’s buttons, and the panel options, the page will have
changed, showing, in particular, the text of the buttons you have defined.
At the bottom of the page are 3 important buttons: ‘Revert to Saved’, ‘Save’, and “Save & Close’.
The ‘Save’ button commits modifications you have just made. The ‘Revert to Saved’ button
restores the last saved version of the panel configuration, canceling any changes you just made.
‘Save & Close’ saves the panel configuration and dismisses the page.
Button
Definition
Section
Panel
Options
Panel Image:
GPIO Defi-
nitions
