Control Panels
NV9607
NV9607 Configuration Page

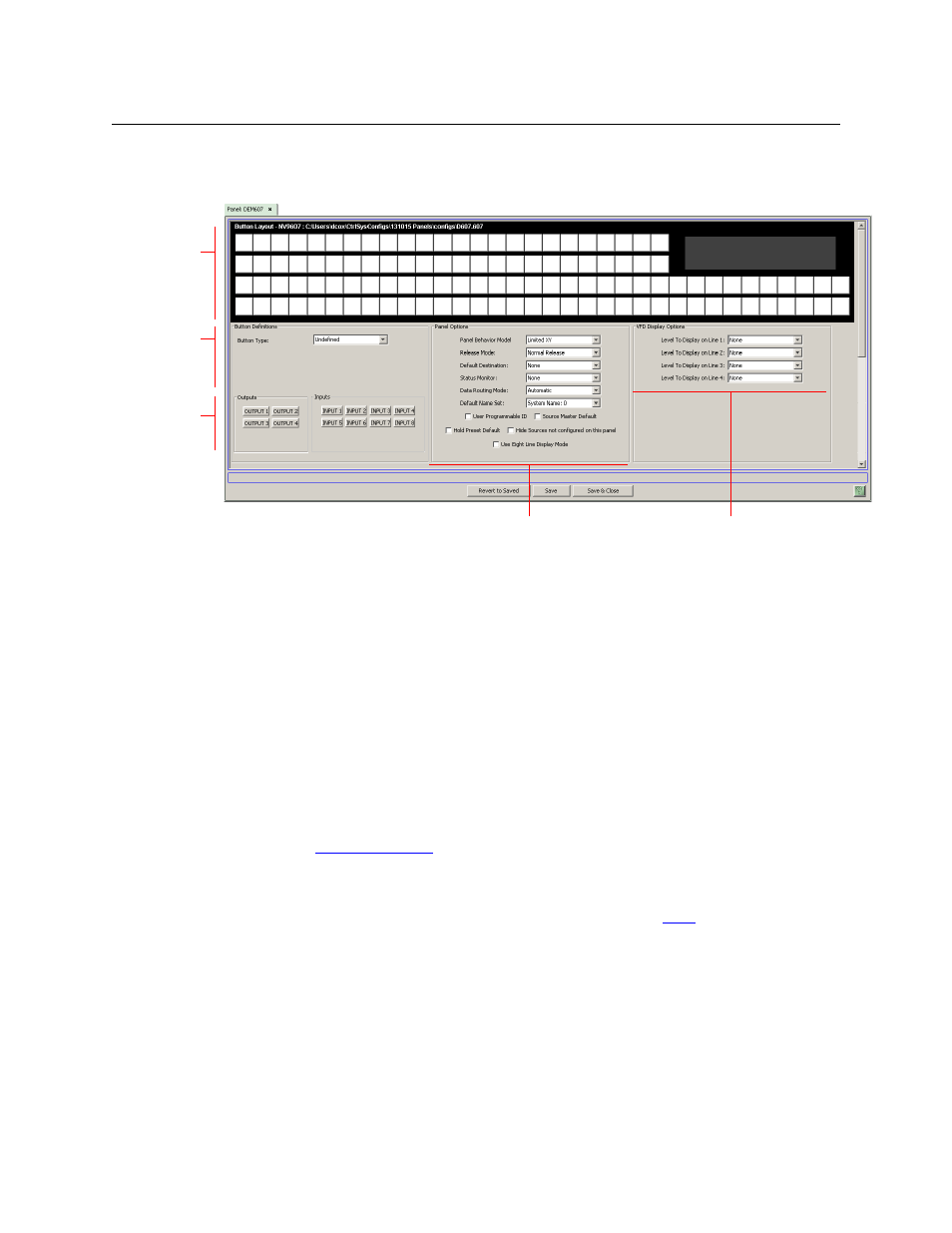

This is the default NV9607 panel configuration page:
After you have configured the panel’s buttons, and the panel options, the page will have
changed, showing, in particular, the text of the buttons you have defined.
At the bottom of the page are 3 important buttons: ‘Revert to Saved’, ‘Save’, and “Save & Close’.
The ‘Save’ button commits modifications you have just made. The ‘Revert to Saved’ button
restores the last saved version of the panel configuration, canceling any changes you just made.
‘Save & Close’ saves the panel configuration and dismisses the page.
Regions of the Configuration Page
There are 5 main regions:
• A graphic representation of the NV9607 panel.
Configurers must click a button “proxy” to select the button for configuration.
• Button definitions.
In this section, configurers make button assignments, using its pull-down menus and text
fields. See
Button Definitions , following.
• GPIO definitions.
In this section, configurers may define GPIO logic. The control panel has a rear connector
that provides 4 relay outputs and 8 optically isolated inputs. See
GPIO on page 197. (Note
that the graphical buttons represent connectors and not actual buttons.)
• Panel options.
In this section, configurers may specify the behavioral characteristics of the panel. See the
NV9607 User’s Guide for detailed information.
• Display options.
In this section, configurers may partially specify the ordering of levels when the panel is in
X-Y mode, single-destination mode, or single-destination mode with breakaway.
Button
Definition
Section
Panel Image
GPIO
Section
Panel Options Display Options
