279
NV9000-SE Utilities
User’s Guide
‘Edit Navigation Button’ Dialog
 Navigation buttons, and their corresponding target pages, are available only under the XY/
MD model. The ‘Edit Navigation Button’ dialog is available only under the XY/MD model.

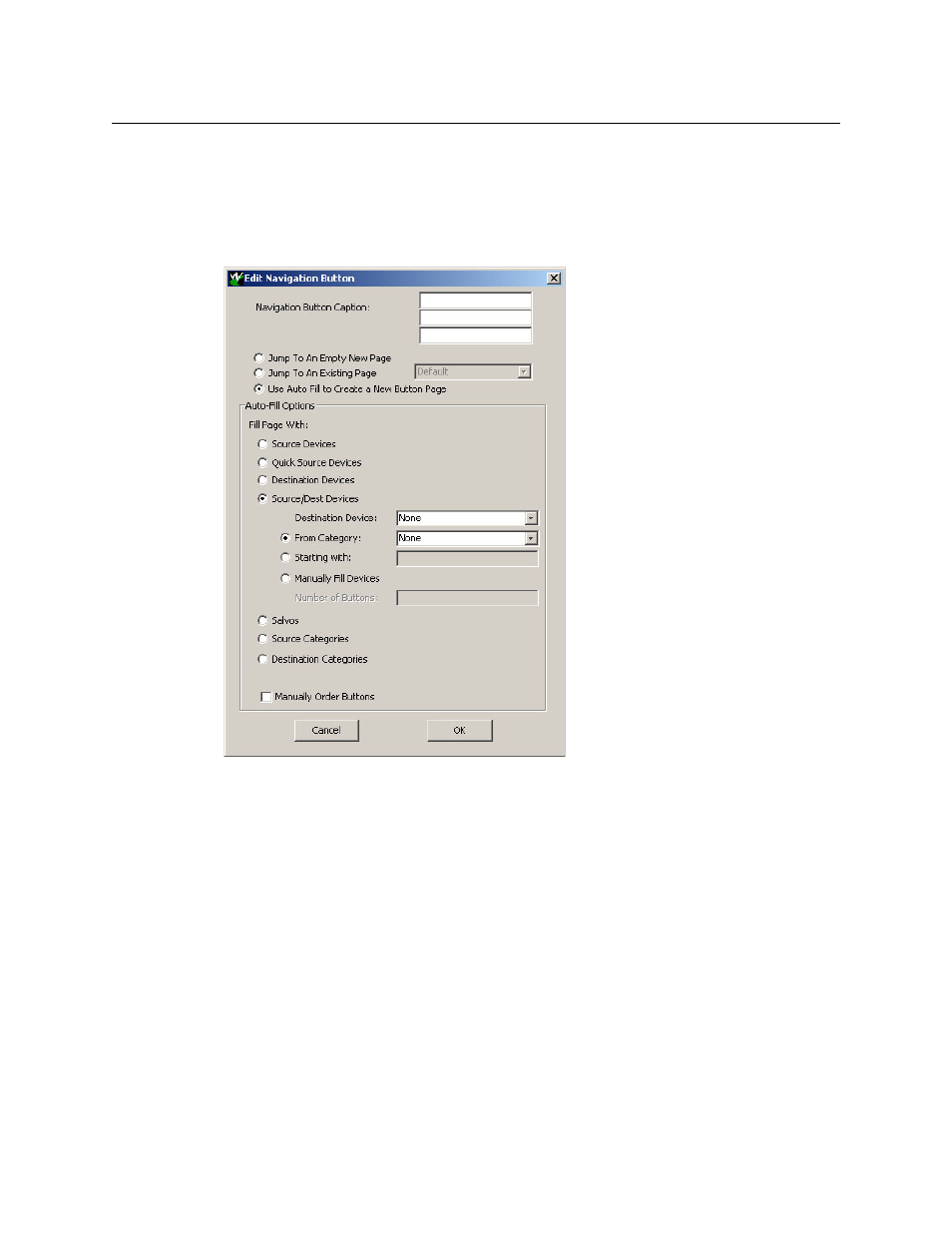

During configuration, when you choose ‘Navigate’ as the type for a selected button, NV9000-SE
Utilities displays an ‘Edit Navigate Button’ dialog in which you specify navigation button details:
At the top, this dialog presents 3 lines on which you can enter text for the button caption.
The dialog has 3 options:
• Jump to an empty new page.
This option creates a new page in the button tree. After the page is created, you can select it
at any time and edit its buttons.
• Jump to an existing page.
This options does
not create a new page in the button tree. Operators will use the naviga-
tion button you are creating to display the page you select in the associated drop down
menu.
• Use “auto fill” to create a new button page.
NV9000-SE Utilities creates at least one new button page, filling the page(s) with button
functions according to the fill options you specify. Automatic fill has several suboptions:
Source buttons Source category buttons
Destination buttons Destination category buttons
Source/destination buttons Salvo buttons
