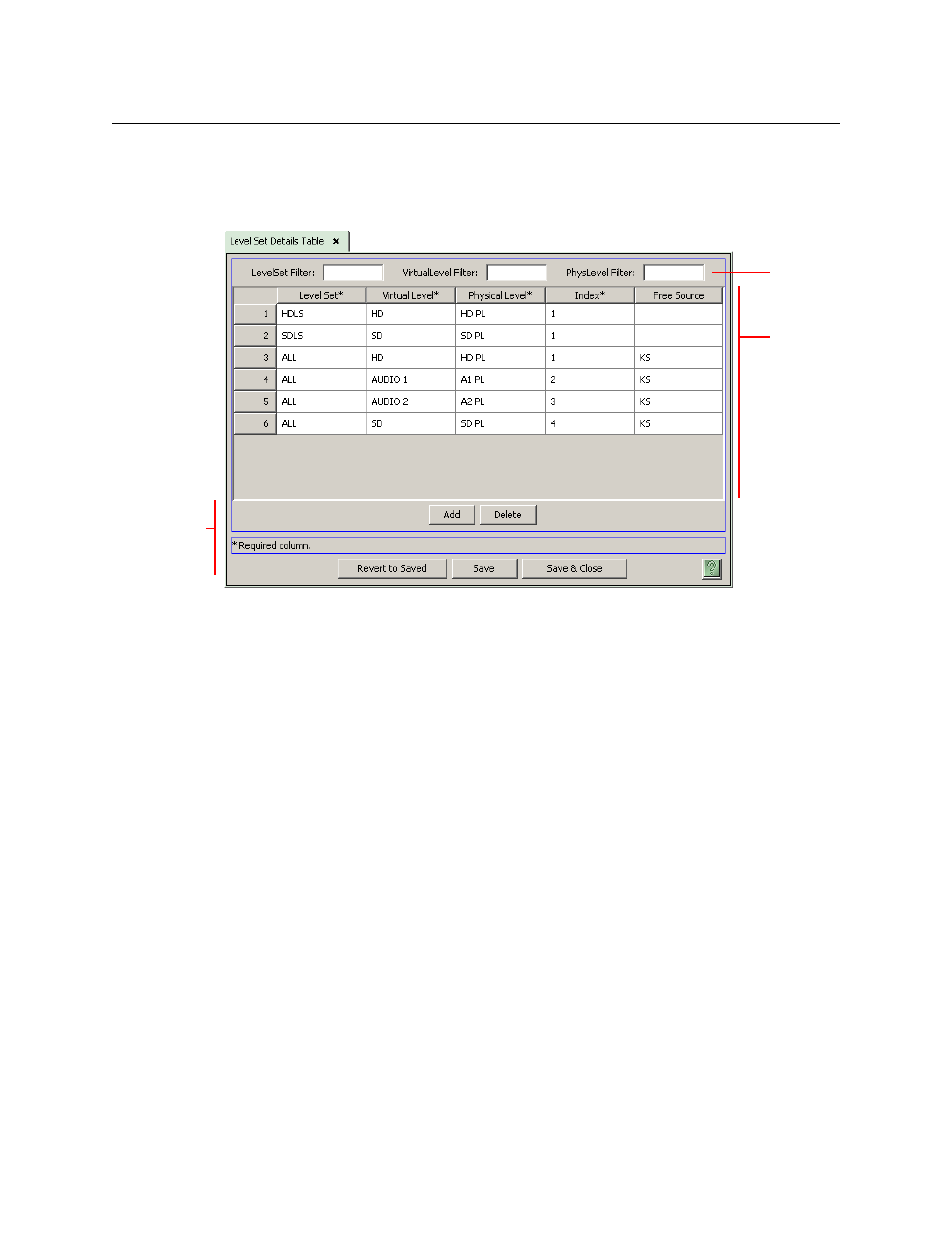

‘Level Set Details’ Table
The ‘Level Set Details’ table can be found in the ‘Views’ pane. It lists all virtual levels in all level
sets (subject to filtering).
You can add and delete virtual levels here and redefine them here. (You cannot create a new
level set here.)
To edit any field, click the field. Most of the fields are drop-down lists; choose an element from
the drop-down list. The ‘Index’ fields are numeric fields.
List of Virtual Levels
The list presents the data for all virtual levels, in all level sets (subject to filtering). These are the
fields of the ‘Level Set Detail’ table:
• Level Set
The level set to which the virtual level belongs. These fields are drop-down lists.
• Virtual Level
The name of the virtual level. These fields are drop-down lists.
• Physical Level
The physical level to which the virtual level maps. This is the router partition in which signals
of the virtual level are switched. These fields are drop-down lists.
• Index
The display index of the virtual level within its level set.
• Free Source
a A free source is one that can be assigned, for example, to a tieline destination or a
machine control destination to release that destination from use.
These fields are drop-down lists of source devices in the level set of the virtual level.
