336 Appendix A - Setting LonMaker Default Options
Network Explorer Options
The Network Explorer is an auto-hide window that displays a hierarchal view of the LonMaker
drawing. You can use the Network Explorer to navigate, view, and modify the subsystems, devices,
and device templates in your network design.

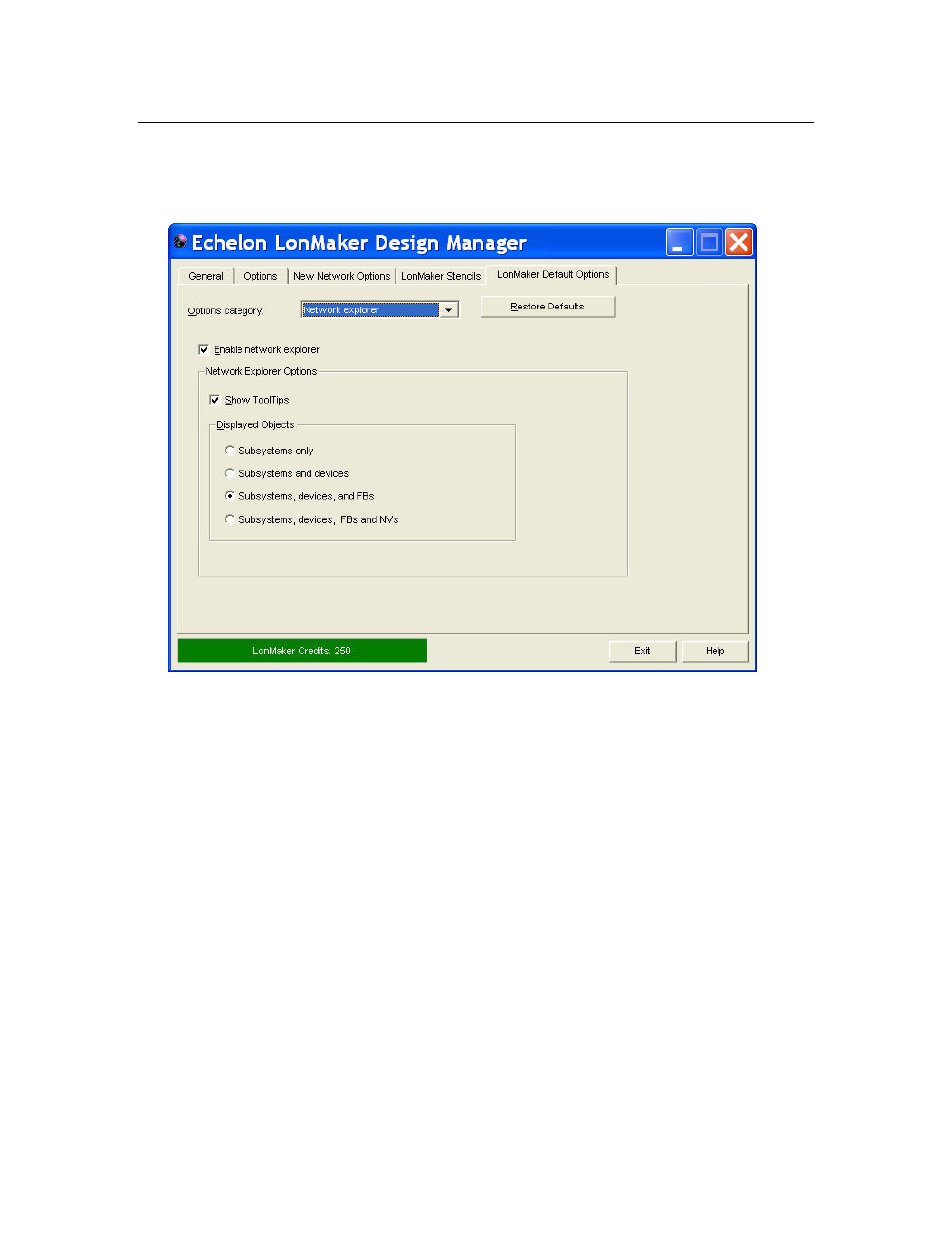

The Network Explorer category contains the following options. The changes you make in the Network
Explorer options category are applied to all networks on your computer.
Enable Network Explorer Enables the network explorer to appear in your LonMaker
drawing. This option is selected by default.
Scope: All networks, current LonMaker computer
Network Explorer Options
Show ToolTips Enables the name of the LonMaker object and it absolute path
to appear in a ToolTip when the mouse pointer is positioned
over the object. This option is selected by default.
Scope: All networks, current LonMaker computer
Displayed Objects Select the scope of the objects displayed within the network
explorer. You have four choices:
• Subsystems Only. Lists only the subsystems in the
LonMaker network.
• Subsystems and Devices. Lists the subsystems and
devices in the LonMaker network.
• Subsystems, Devices, and FBs. Lists the subsystems,
devices, and functional blocks in the LonMaker network.
