LonMaker User’s Guide 245

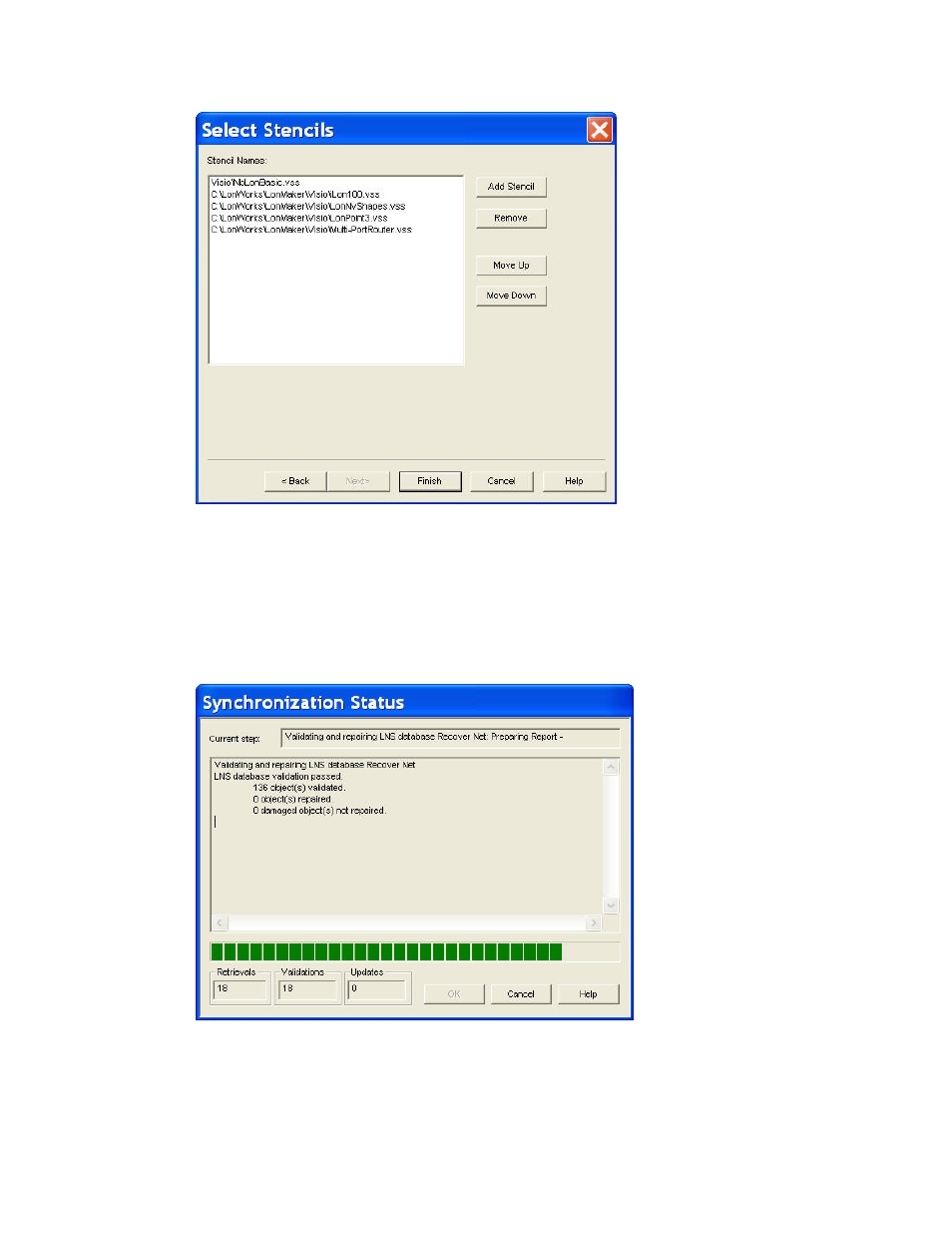

15. Specify the stencils that will be scanned for master shapes during resynchronization. When
objects are found within the LNS network database that are not already represented in the drawing,
the LonMaker tool scans the listed stencils and automatically adds the appropriate shape to the
drawing. If the object’s particular master shape is not found, an appropriate generic master shape
(e.g., a LonWorks device shape) will be used.
To add additional stencils, click Add Stencil. To remove a stencil, select the desired stencil and
then click Remove.
16. Click Finish. Resynchronization begins and the Synchronization Status dialog appears.
This dialog displays the status of the resynchronization. Resynchronization events are listed in
order as they occur. Click OK when the resynchronization is complete. The resynchronization
events, including any errors, are shown in the status pane and recorded in a log file (Resync.log).
The resync log is stored in the drawing directory of the current LonMaker network design.
