262 Managing Networks

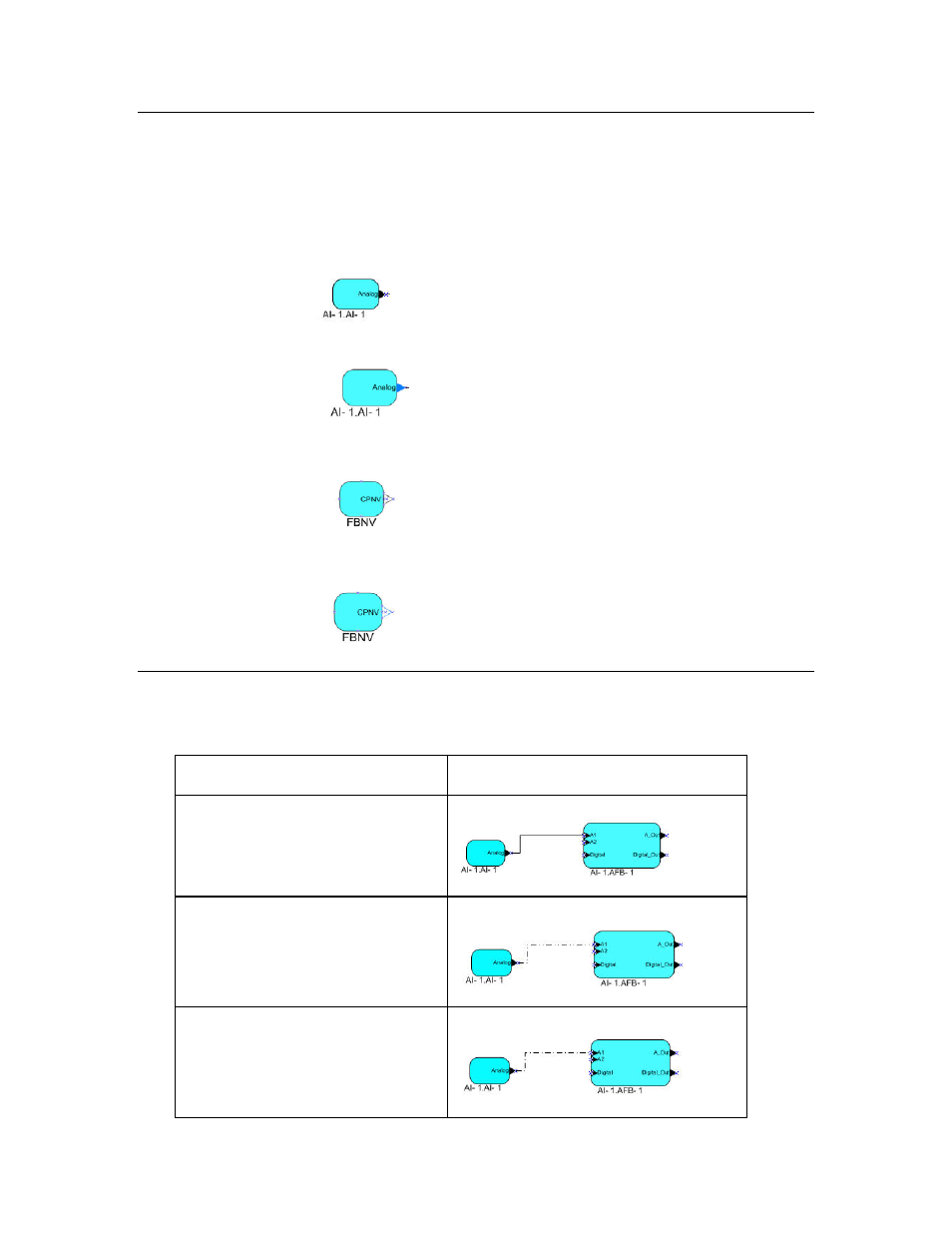

Network Variable and Message Tag Shape Styles
The LonMaker tool indicates the state of network variable and message tag shapes using the following
styles:
Connection
Point State Default Style Description
Connection Point
Normal Solid black fill The network variable or message tag shape is normal
(not currently exported to a supernode).
Connection Point
Exported Solid blue fill The network variable or message tag shape has been
exported to one or more supernodes.
Configuration
Property Normal Solid black line with a
transparent fill The configuration network variable is normal (not
currently exported to a supernode).
Configuration
Property Exported Solid blue line with a
transparent fill. The configuration network variable is currently
exported to one or more supernodes.
LonMaker Connector Shape Styles
The LonMaker tool indicates the messaging service used for a connection and whether monitoring is
enabled with the following styles:
Messaging Service/Monitoring State Default Style
Acknowledged Messaging Service Solid line.
Repeated Messaging Service Dash separated by two dots.
Unacknowledged Messaging Service Dash separated by one dot.
