LonMaker User’s Guide 157

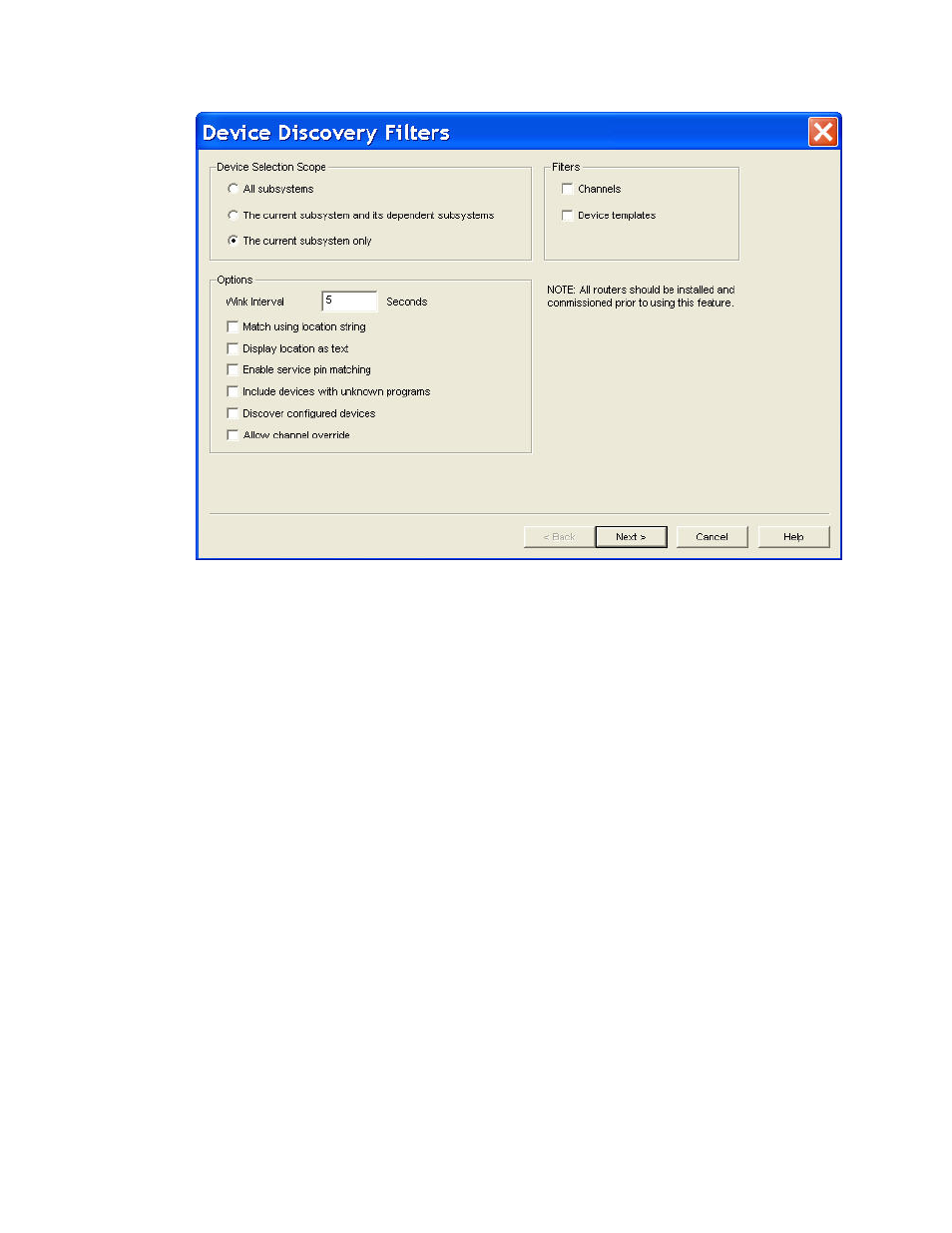

2. Select the following options:
Device Selection
Scope Selects which subsystems will be searched for uncommissioned
device shapes. You have three choices:
• All Subsystems. The entire LonMaker drawing will be
searched for uncommissioned device shapes.
• The Current Subsystem and Dependent Subsystems. The
current subsystem and any subsystems nested in it will be
searched for uncommissioned device shapes.
• The Current Subsystem only. Only the current subsystem will
be searched for uncommissioned device shapes.
Options
Wink Interval Specifies the number of seconds to wait between winking devices
when more than one is selected.
Match using
Location String Uses location string in addition to channel and program ID to match
devices. This option is useful for networks that have a unique
location string for each device, or if you have a handheld tool that
assigns a unique location string to each device.
Display Location as
Text Interprets location string as ASCII text. The default is to display the
location string as hex digits.
Enable Service Pin
Matching Enables matching to be done by selecting a device shape in the
Defined Devices list and pressing the service pin of a physical
device. The physical device does not need to be in the list of
discovered devices; therefore, this method can be used to
commission configured devices. However, the physical device may
not already be assigned to a device shape. You can only select one
