LonMaker User’s Guide 231

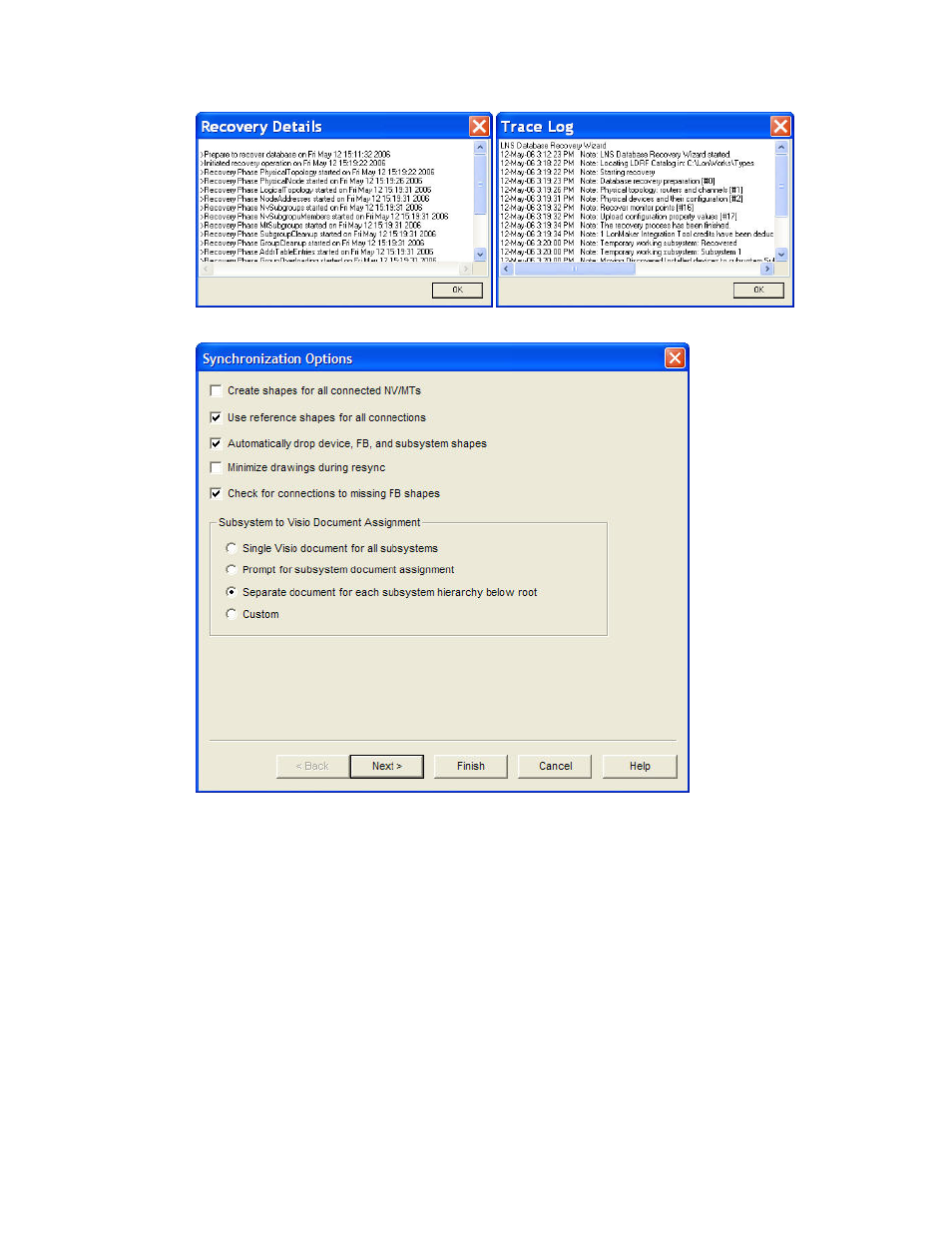

22. Click Finish to continue. The Synchronization Options dialog box appears.
23. Select the Automatically Drop Device, FB, and Subsystem Shapes check box to automatically
add the appropriate shapes from the stencils to the drawing. You can clear the Create Shapes for
all Connected NVs/MTs check box to simplify the drawing (alternatively, you can add the
connection shapes and then hide them temporarily as described in Hiding and Showing Connector
Shapes in Chapter 4, Designing Networks. Select the Use Reference Shapes for all Connections
check box to prevent a drawing with many connections from becoming too complex. Click Next.
The Select Stencils dialog box appears.
