136 Designing Networks

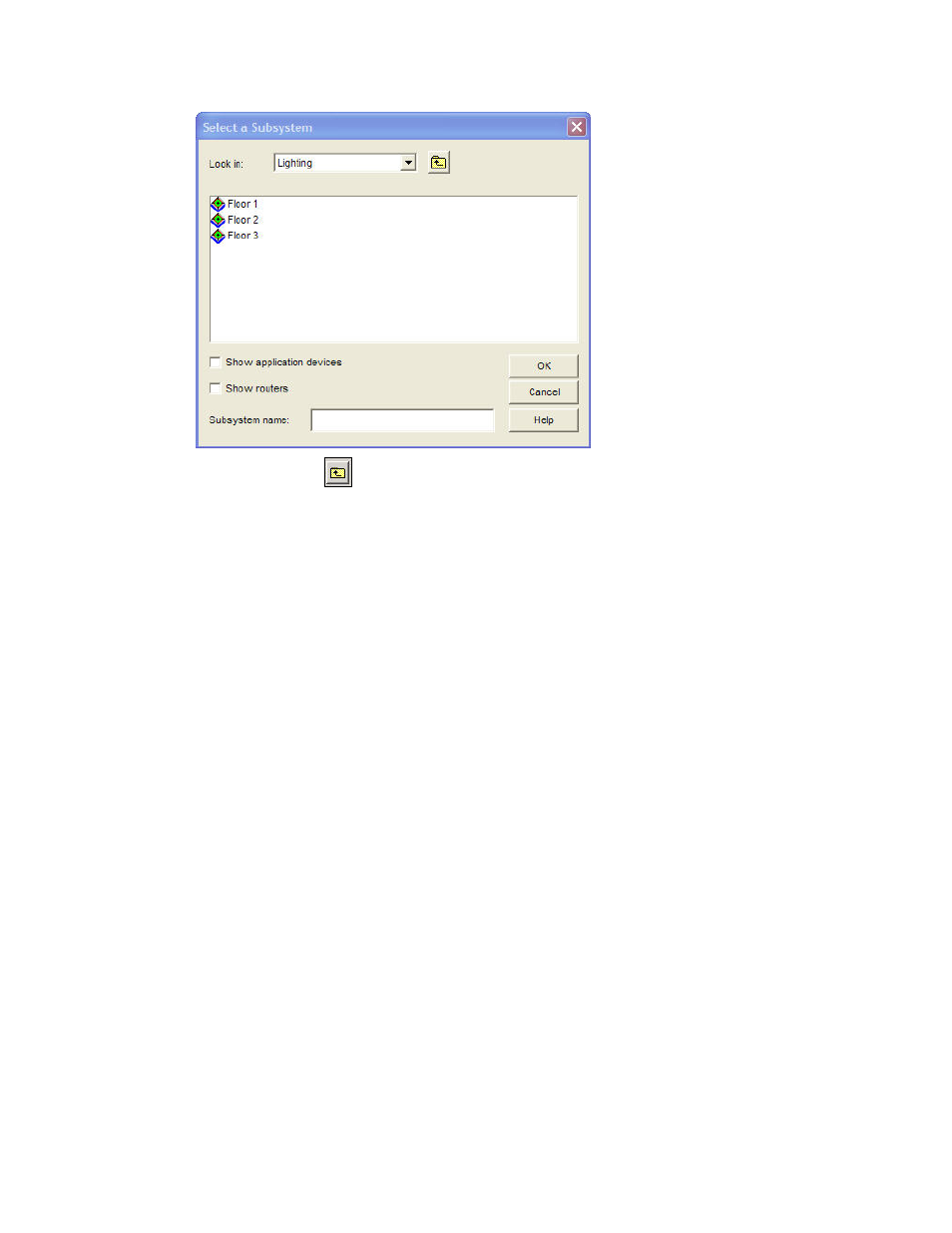

4. Click the Up button to move up one level in the network hierarchy; double-click a subsystem
to move down one level. Select the new subsystem.
5. Click OK.
6. If you move a functional block with any connector shapes, you will be prompted to have the
LonMaker tool convert the connector shapes to reference connection shapes. Click OK.
Changing the Channel for a LonMaker Shape
You can move a device, router, or LNS computer onto a different channel. LNS computers include
LonMaker computers, the LNS Server, and other LNS clients.
Moving a Device or Router to a Different Channel
To change the channel on which devices and routers are located, follow these steps:
1. Right-click the device or router shape, or a subsystem containing the device or router, point to
Move Device, and then click Change Channel on the shortcut menu.
You can move multiple device and router shapes attached to the same channel by holding down
CTRL and clicking the shapes, or clicking an empty space in the drawing page and dragging a
selection net around the shapes. The Channel Select dialog box opens.
