Designing Networks

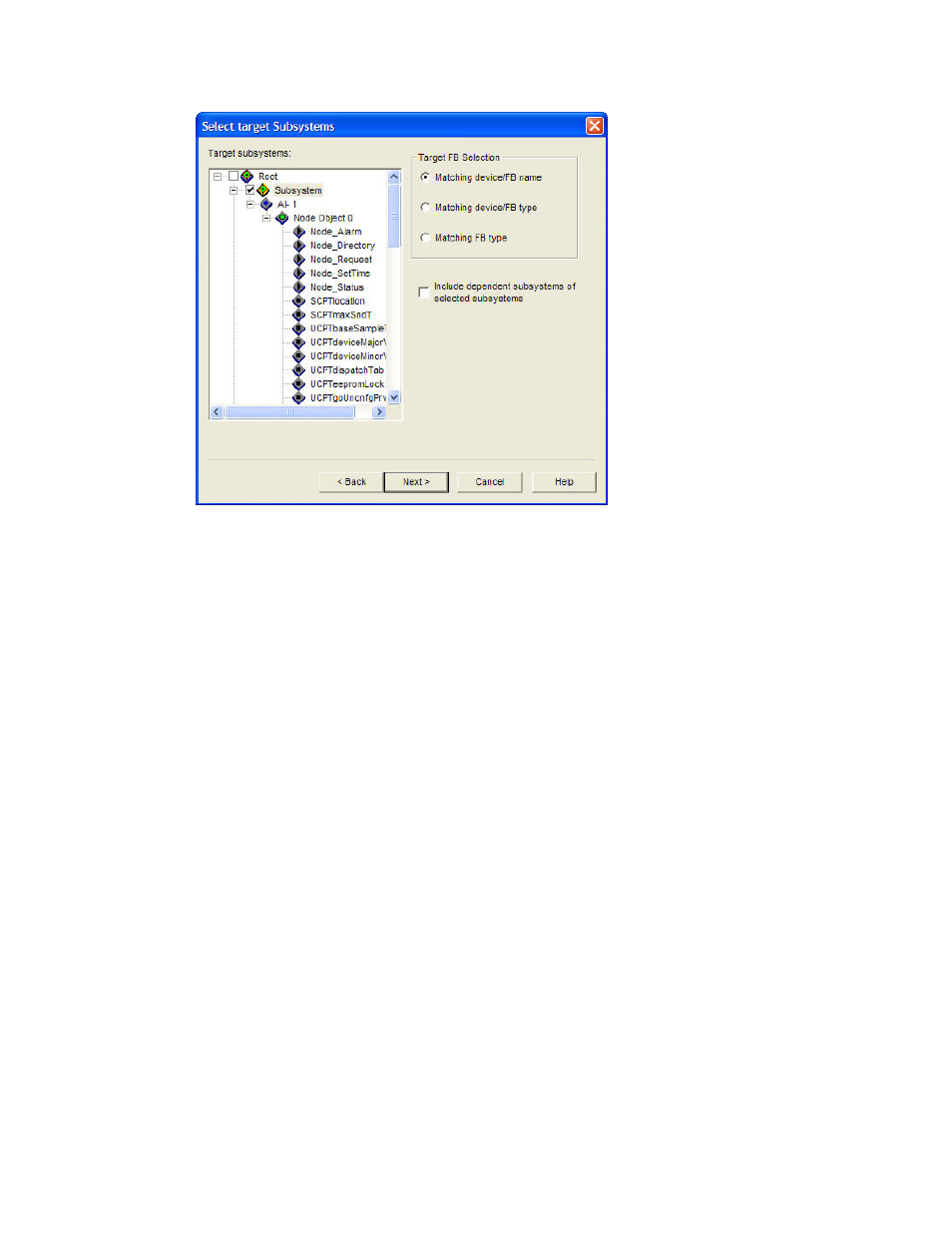

4. Select the target subsystems into which you want the configuration properties to be copied. You
can expand a subsystem to view any nested subsystems.
5. Select the criteria used to determine which functional blocks will be updated with the configured
settings. You have three choices:
• Matching Device/FB name. Both the device and functional block names must match for the
functional block to be configured
• Matching Device/FB Type. Both the device and functional block types must match
• Matching FB Type. Only the functional block type must match).
Select the Include Dependent Subsystems check box if you want to
replicate the configuration
property settings in applicable functional blocks in the nested subsystems within the selected
subsystems.
6. Click
Next. The Qualifying Targets dialog box appears. This dialog lists all the functional
blocks meeting the criteria selected in Step 5.
