To do an Autotest on twisted pair cable
1
Attach permanent link or channel adapters to the main and
remote testers.
2
Make sure that the home screen shows the correct settings for
the job.
To make sure that other settings are correct, tap the test setup
panel, make sure the correct test is selected on the CHANGE
TEST SCREEN, then tap EDIT to see more settings. Table 2 on
page 72 describes the settings.
3
Connect the testers to the link as shown in Figure 28 or 29.
4
Tap TEST on the main tester or press on the main or
remote tester.
GPU97.EPS

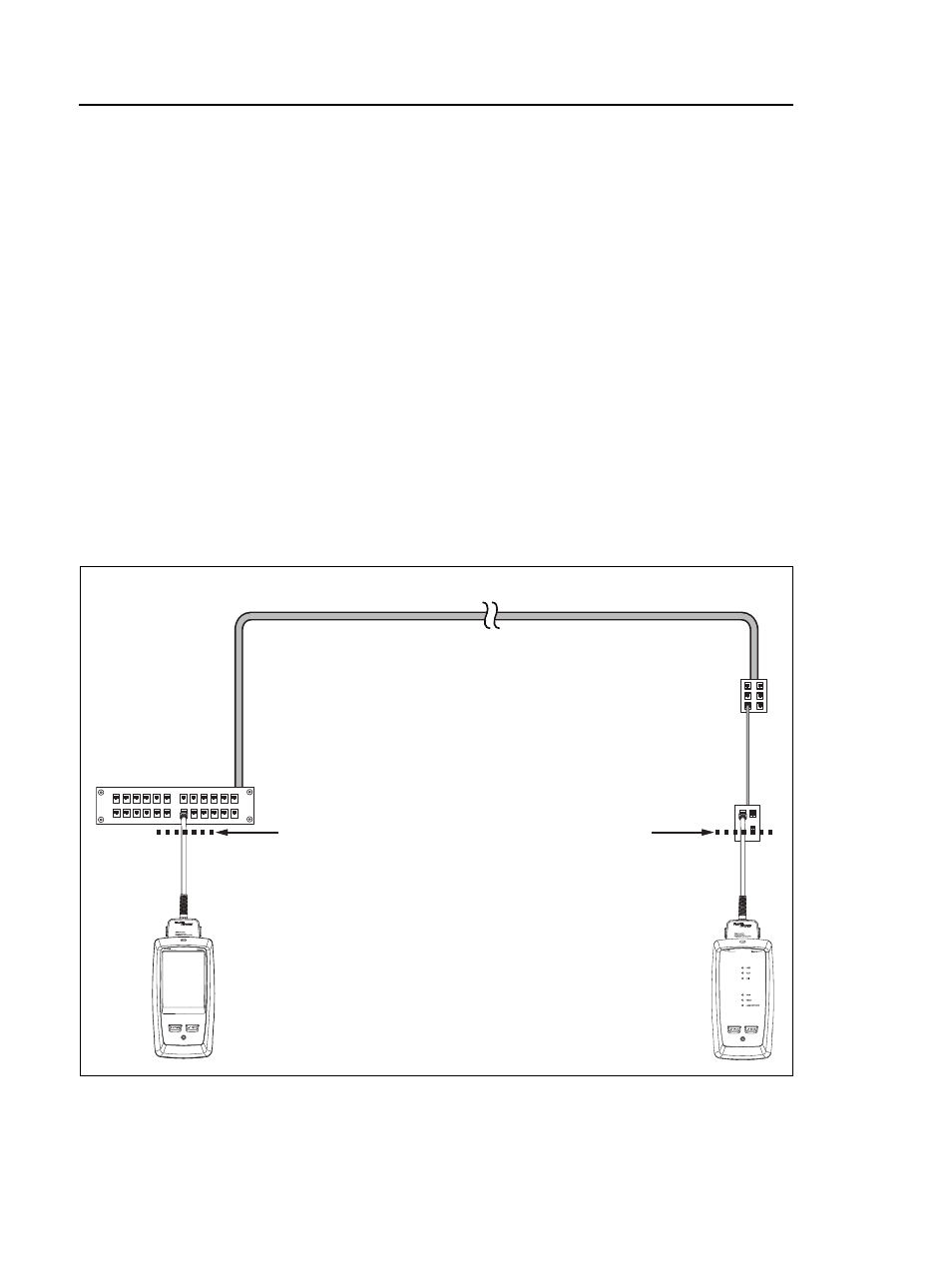

Figure 28. Permanent Link Connections
End
permanent
link
Remote with
permanent link
adapter
Optional
consolidation
point
Wall
outlet
Tester with
permanent link
adapter
Start
permanent
link
Patch panel
Horizontal cabling
