Versiv Cabling Certification Product Family
Technical Reference Handbook
326
Tutorial: How to Use a Project for Tests with
OptiFiber Pro and CertiFiber Pro Modules
This tutorial assumes that you completed the tutorial “Make a
New Project” on page 310.
In this tutorial, you will do OTDR tests on both fibers of a duplex
fiber link, then you will add loss/length results to the OTDR results
for the two fibers.
Figures 128 and 129 show the equipment necessary for this
tutorial.
Note
Select launch/tail cords and test reference cords
that have the correct connectors to connect to the
OTDR and OLTS modules and to the fiber link or
segment.

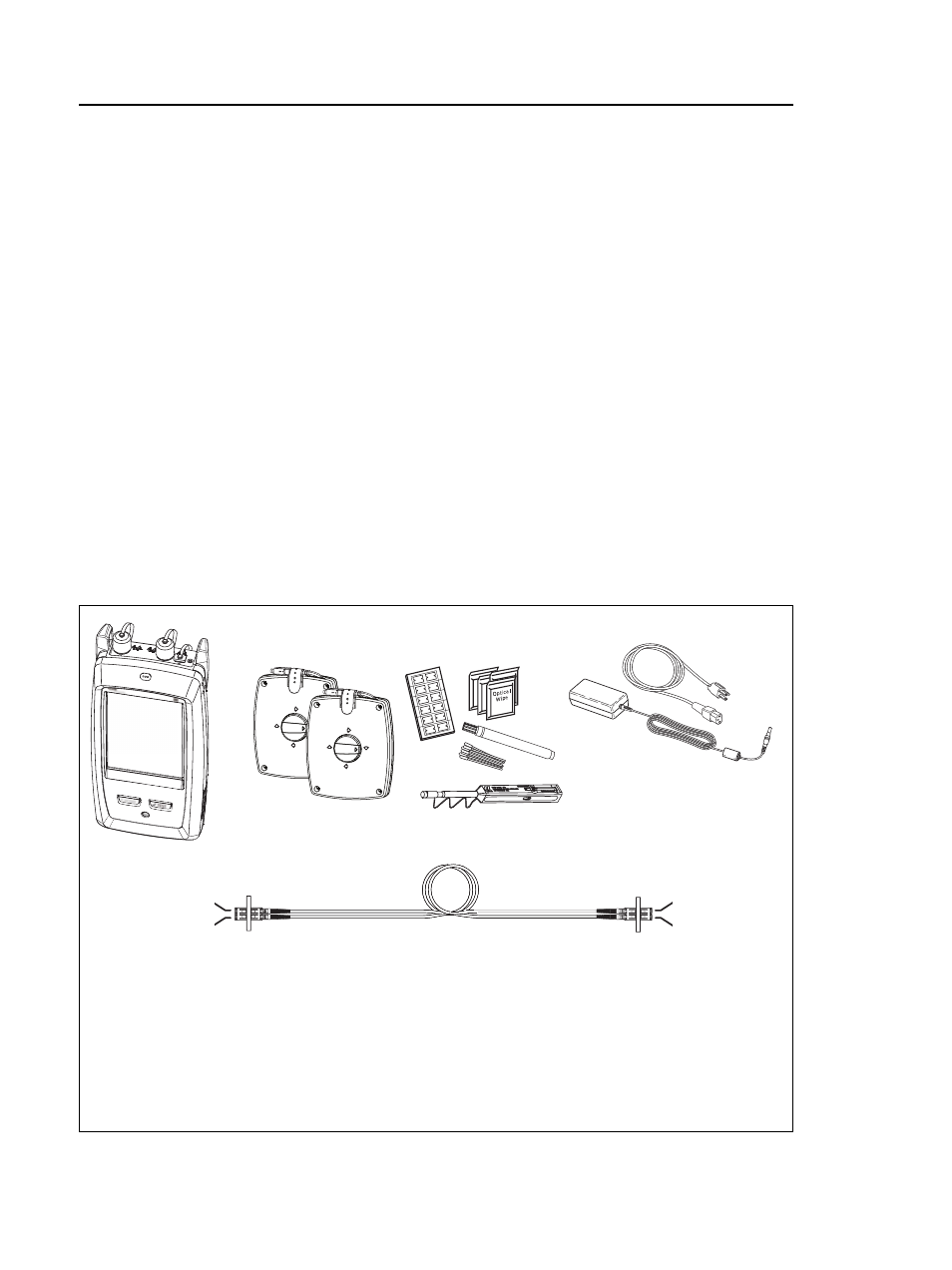

Figure 128. Equipment for the OTDR Project Tutorial
GPU159.EPS
 Main Versiv unit with OTDR
module installed
 Launch and tail cords (match the
fiber to be tested)
 Fiber cleaning supplies
 AC adapter with line cord
(optional)
 Duplex fiber link or segment
A
B
D
C
E
Fiber 1A
Fiber 1B
End 1 End 2
Fiber 1A
Fiber 1B
