Chapter 2: Get Started
 Warning 
Before you use the tester, read the safety
information that starts on page 2.
Tutorial: Certify Twisted Pair Cabling
The tutorial in this section gives instructions on how to set up a
test to certify twisted pair cabling, do the test, and save the
results.
Figure 15 shows the minimum equipment necessary for this
tutorial.

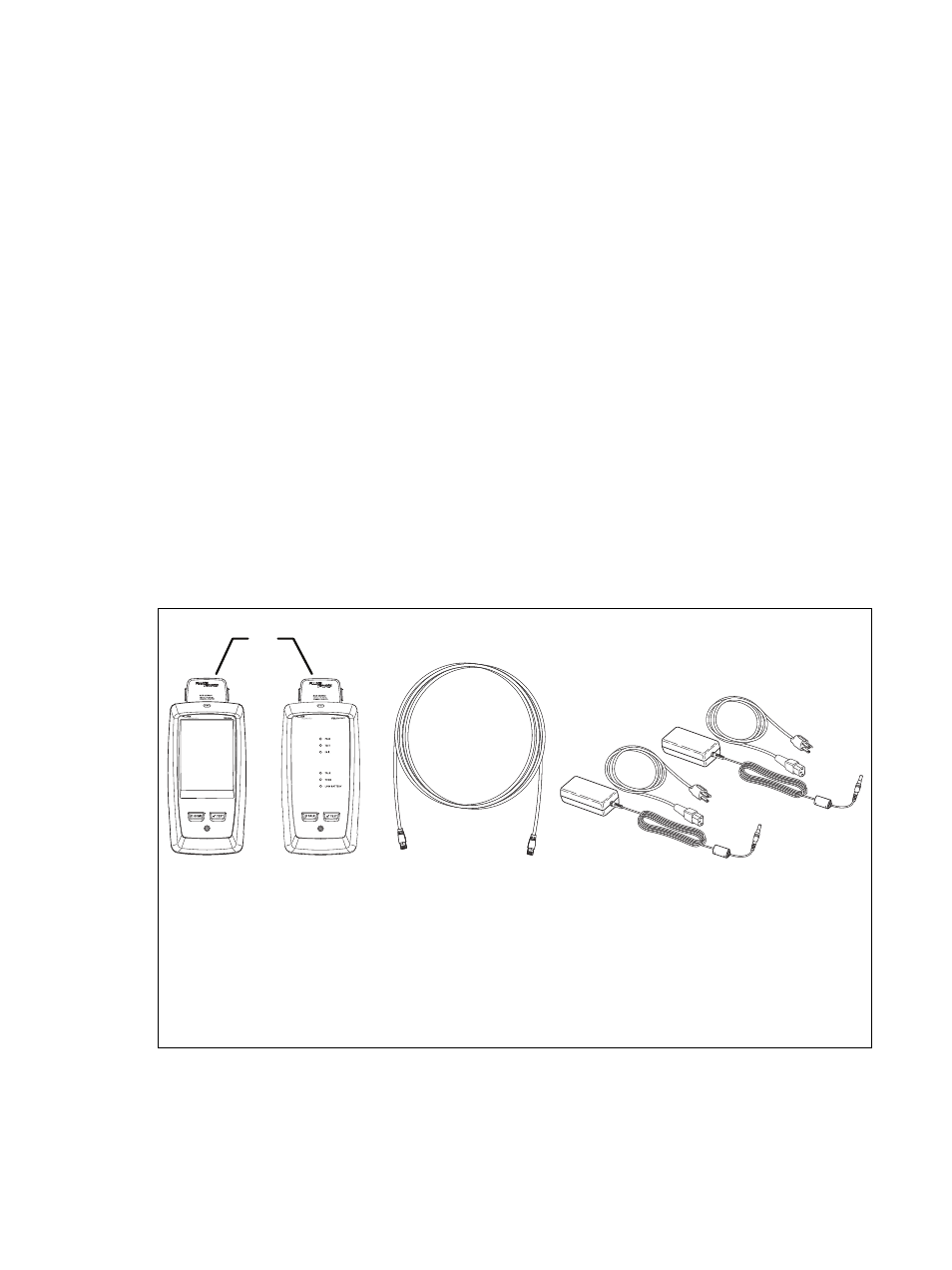

Figure 10. Equipment for the Twisted Pair Certification Tutorial
GPU101.EPS
 Main and remote Versiv units
with DSX CableAnalyzer
modules installed
 Two channel adapters
 Twisted pair cable
 AC adapters with line cords
(optional)
A
C
D
B
