Versiv Cabling Certification Product Family
Technical Reference Handbook
44
Step 7: Look at the Results
The tester shows the Autotest results in two formats (Figure 14):
The first screen shows the worst-case results for each fiber.
To see more details about a fiber, tap a result window.
GPU144.EPS

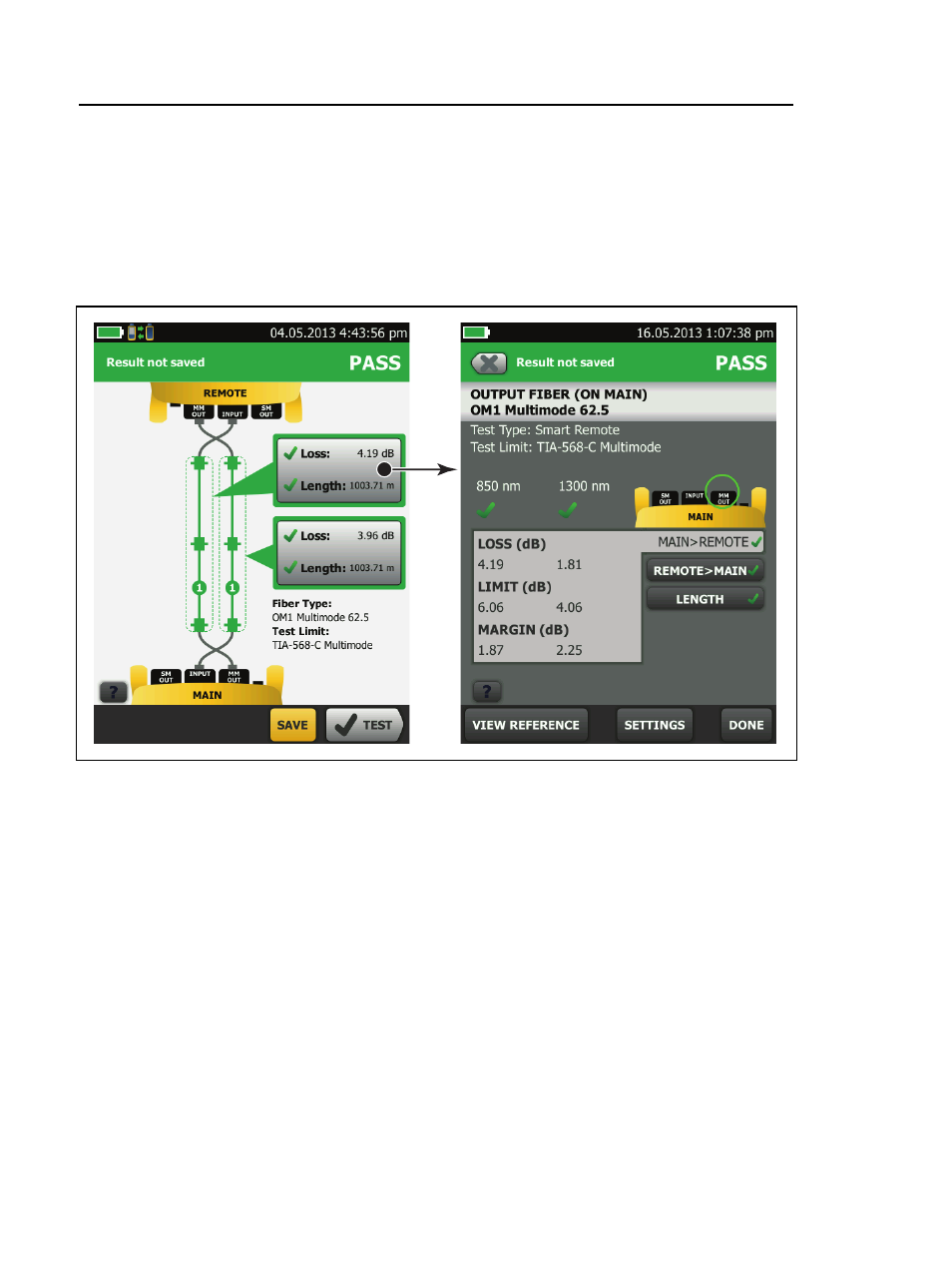

Figure 14. Examples of Fiber Autotest Results Screens
Step 8: Save the Results
8-1 Tap SAVE (if the result was PASS) or FIX LATER (if the result
was FAIL).
8-2 On the SAVE RESULT screen, tap the Cable ID box, use the
keyboard to enter an ID for the results, then tap DONE.
8-3 Tap SAVE.
