Chapter 4: How to Test Twisted Pair Through a PoE Device
How to Do an Autotest Through a PoE Device
127
GPU94.EPS

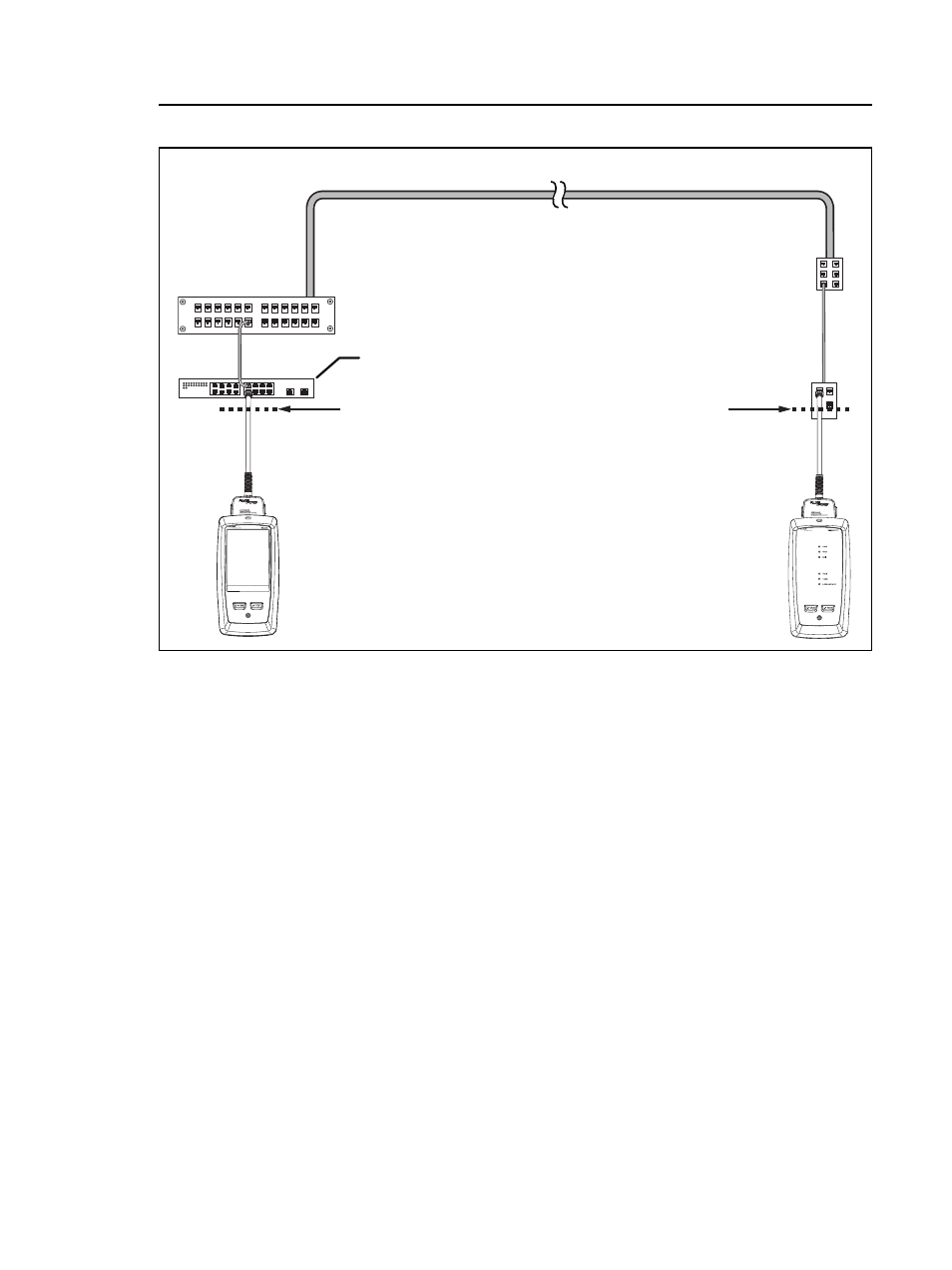

Figure 61. Permanent Link Connections Through a PoE Device
End
permanent
link
Remote with
permanent link
adapter
Optional
consolidation
point
Wall
outlet
Tester with
permanent link
adapter
Start
permanent
link
Patch panel
Unpowered midspan
PoE device
Horizontal cabling
