Chapter 14: Projects
Tutorial: How to Use a Project for Tests with a CableAnalyzer Module
323
Tutorial: How to Use a Project for Tests with a
CableAnalyzer Module
This tutorial assumes that you completed the tutorial “Make a
New Project” on page 310.

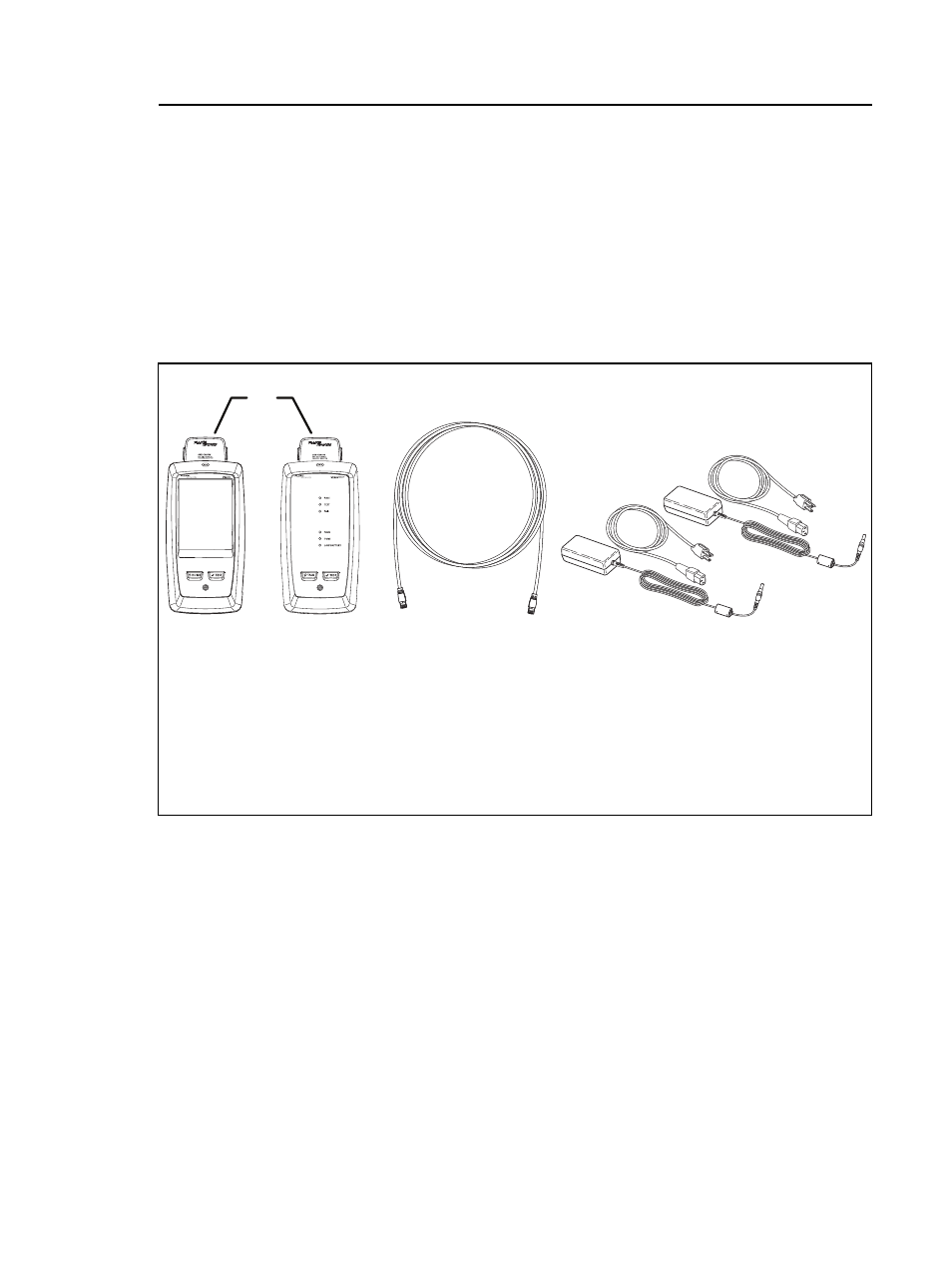

Figure 128 shows the minimum equipment necessary for this
tutorial.
Equipment for the Twisted Pair Project Tutorial
Step 1: Attach a CableAnalyzer Module
Attach a DSX-5000 CableAnalyzer module. See “How to Remove
or Install a Module” on page 28.
Step 2: Select a Project
If the correct project name does not show on the home screen,
tap the PROJECT panel, tap CHANGE PROJECT, tap the name of a
project, then tap DONE.
GPU101.EPS
 Main and remote Versiv units
with DSX CableAnalyzer
modules installed
 Two channel adapters
 Twisted pair cable
 AC adapters with line cords
(optional)
A
C
D
B
