GPU122.EPS

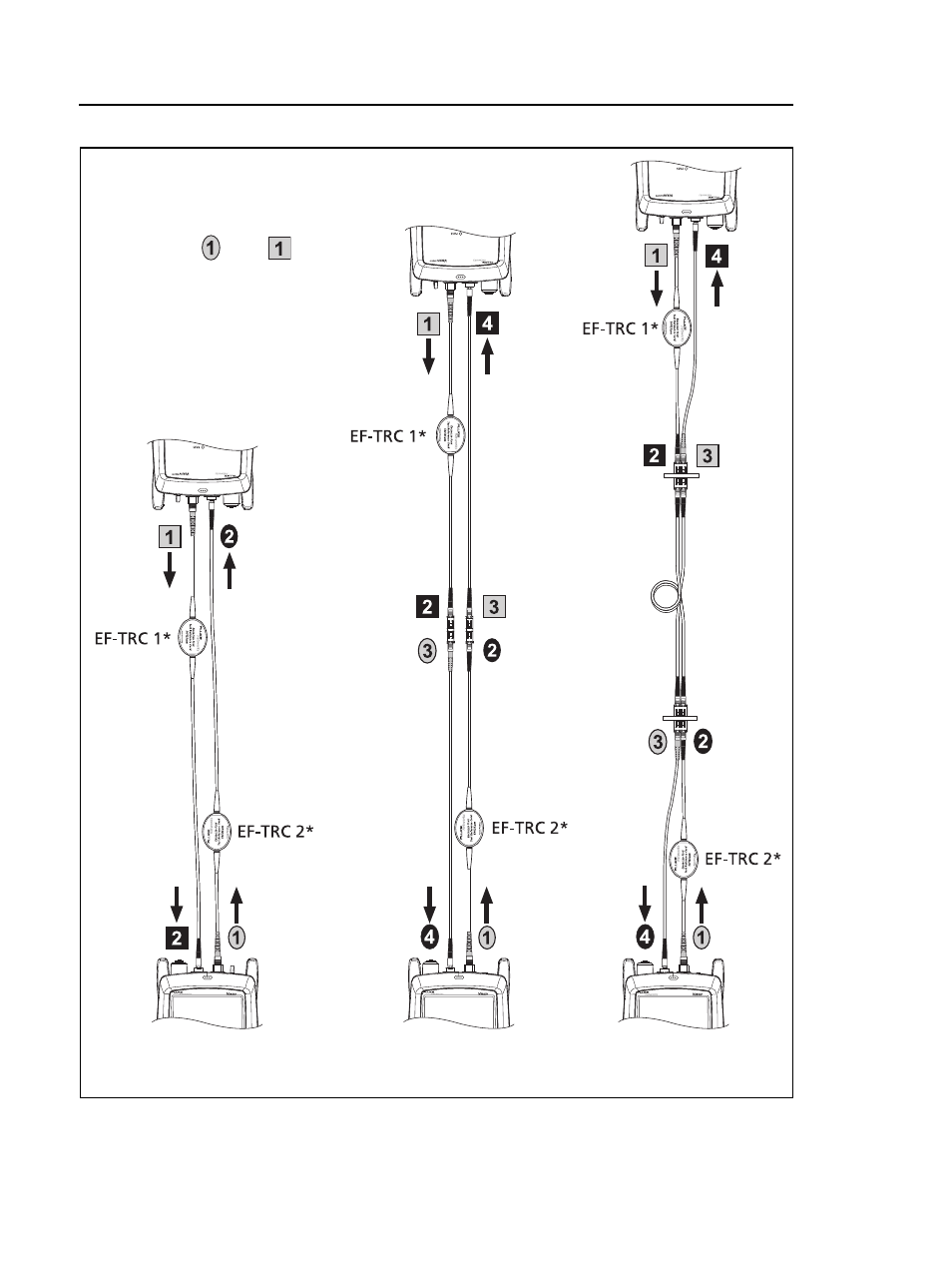

Figure 81. Connections for Smart Remote Mode
(1 Jumper Reference, Multimode Fiber)

Caution
Do not disconnect the
outputs (
and ) after
you set the reference.
When you use the EF-TRCs, 
DO NOT use other
mandrels.
Fiber
link
Test
reference
cord
Test
reference
cord
*Use the EF-TRCs only with multimode modules.
Fiber Link Test Reference TRC Verification
