Chapter 9: How to Use the OptiFiber Pro OTDR Module
The FaultMap Test
277
GPU41.EPS

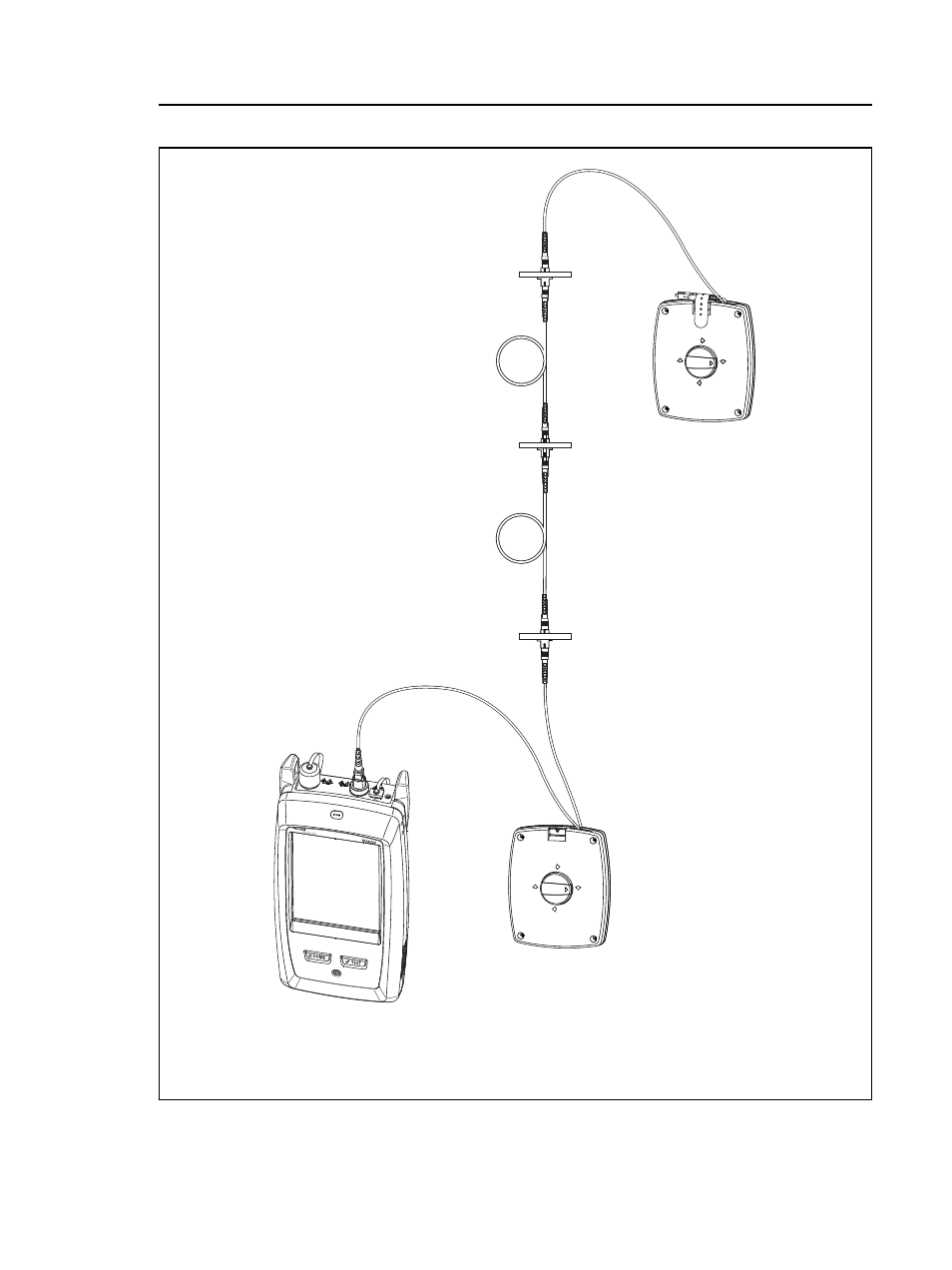

Figure 115. FaultMap Test Connections
Launch cord or
patch cord
(optional)
Tail cord or patch
cord (optional)
Main Versiv unit
with OptiFiber Pro
module
