Versiv Cabling Certification Product Family
Technical Reference Handbook
130

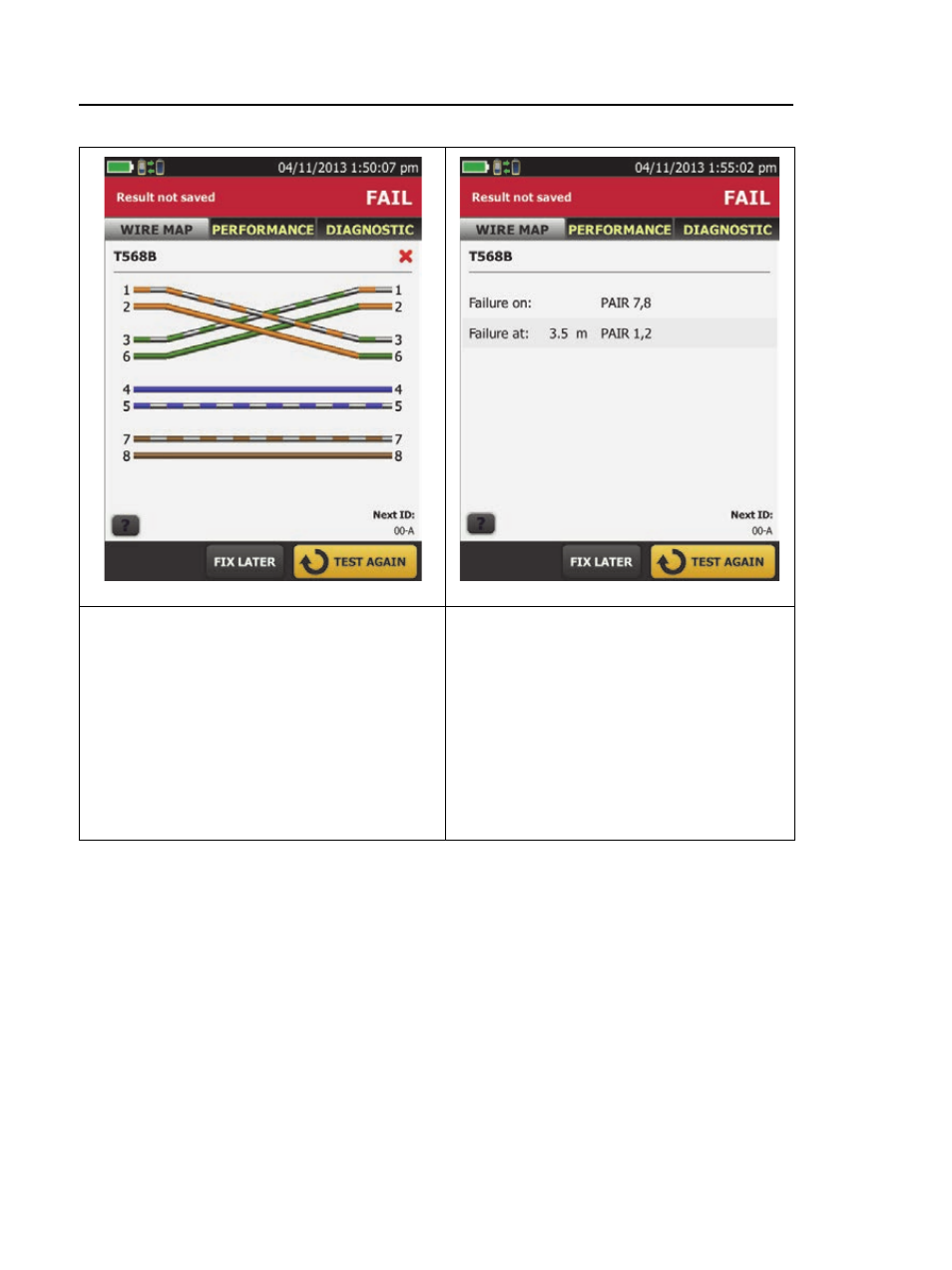

Figure 64. AC Wire Map Examples:
GPU152.PNG GPU153.PNG
Crossed pairs
Pairs 1,2 and 3,6 are crossed.
Multiple faults
This cable has a short between
wires 6 and 7 and an open on pin
2. For some combinations of
faults, the tester cannot show the
wire map because the AC electrical
characteristics of some faults
prevent some types of
measurements.
