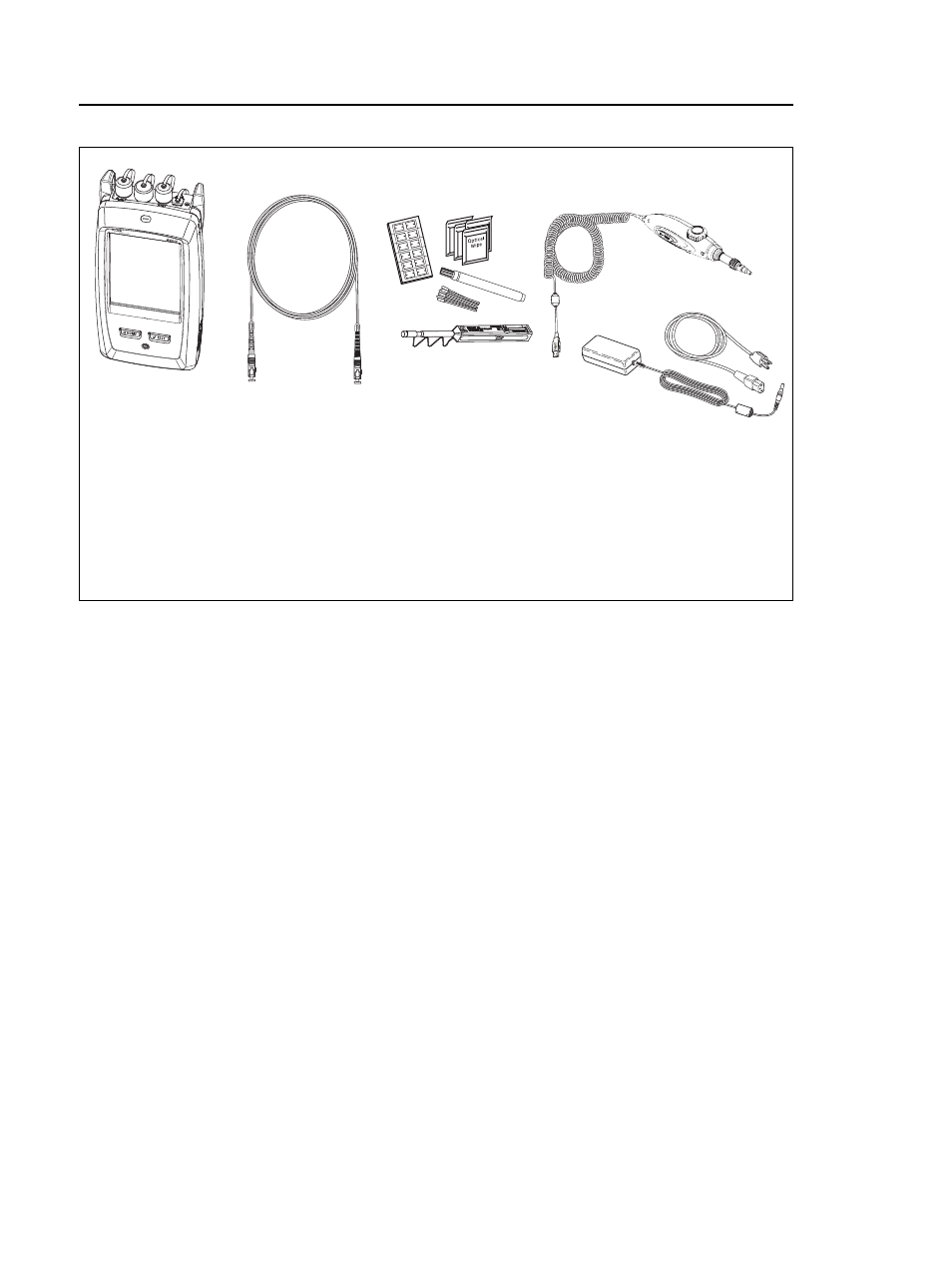

Figure 91. Equipment for Power Meter Measurements
To monitor power
1 Clean and inspect the tester’s input port and the connectors
on the source and test reference cord.
2 Connect the tester to the source, as shown in Figure 92.
3 Turn on the source. On a CertiFiber Pro module, hold down
the button adjacent to the VFL port for 3 seconds.
4 On the home screen, tap TOOLS, then tap Power Meter /
Light Source.
5 The default mode for the power meter is Auto CertiFiber Pro.
If the source is not a CertiFiber Pro tester, tap  to select the
correct mode.
Figure 93 shows the power meter and its controls.
GPU137EPS
 Main Versiv main unit CertiFiber
Pro module installed
 One test reference cord
 Fiber cleaning supplies
 Video probe with USB connector
(DI-1000 shown)
 AC adapter with line cords
(optional)
A
B
C
E
D
