Versiv Cabling Certification Product Family
Technical Reference Handbook
142
GPU99.EPS

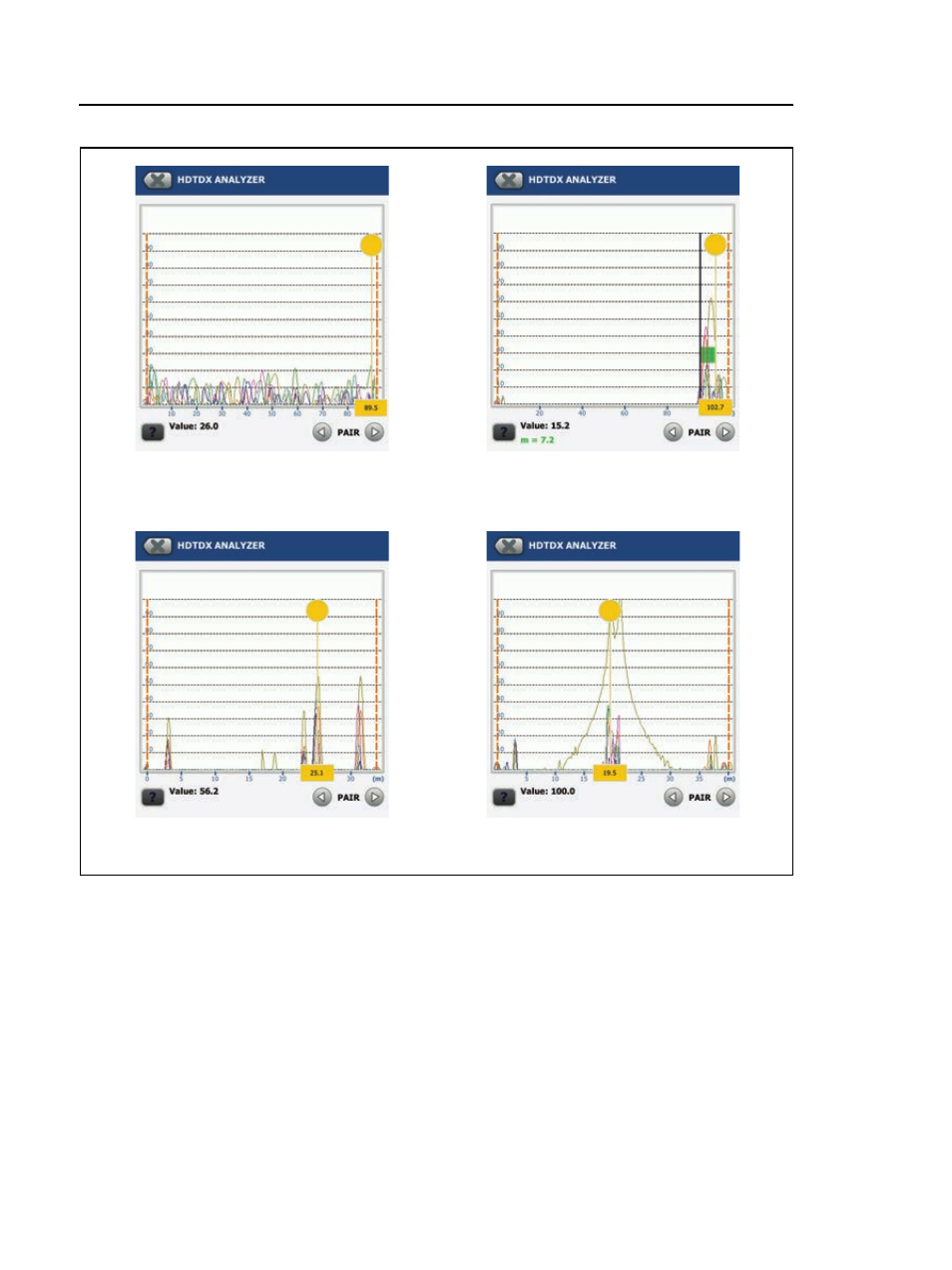

Figure 68. Typical Faults Shown on HDTDX Plots
 Cat 5e test on a Cat 5 cable.
 Approximately 7 m of bad cable near the remote.
 Poor-quality terminations. A typical cause is excessive untwisting
of the wire pairs.
 Split pair on 3,6-4,5. The split pair is in a patch cord
approximately 19.5 m from the main tester.
 Cat 5e test on Cat 5 cable  Section of poor-
quality cable
 Poor-quality terminations  Split pair
