Chapter 9: How to Use the OptiFiber Pro OTDR Module
How to Do an OTDR Test
239
GPU03.EPS

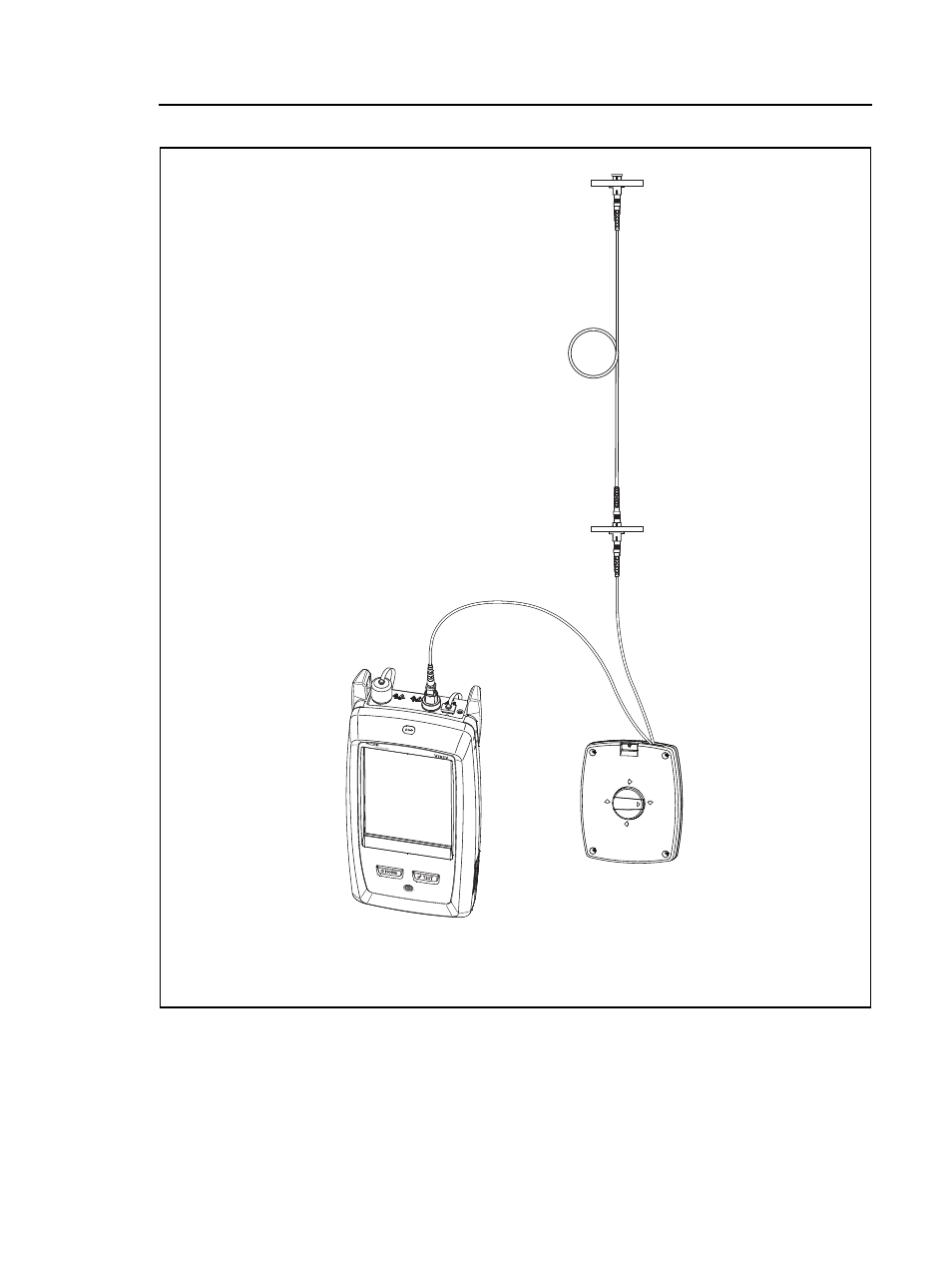

Figure 104. OTDR Connected with a Launch Cord
Launch cord
Fiber link
Main Versiv unit with
OptiFiber Pro module
