OVERALL FIBER RESULTS Screens
The OVERALL FIBER RESULT screen shows more information
about the link. To see this screen, tap OVERALL on the TABLE
screen.
GPU19.EPS

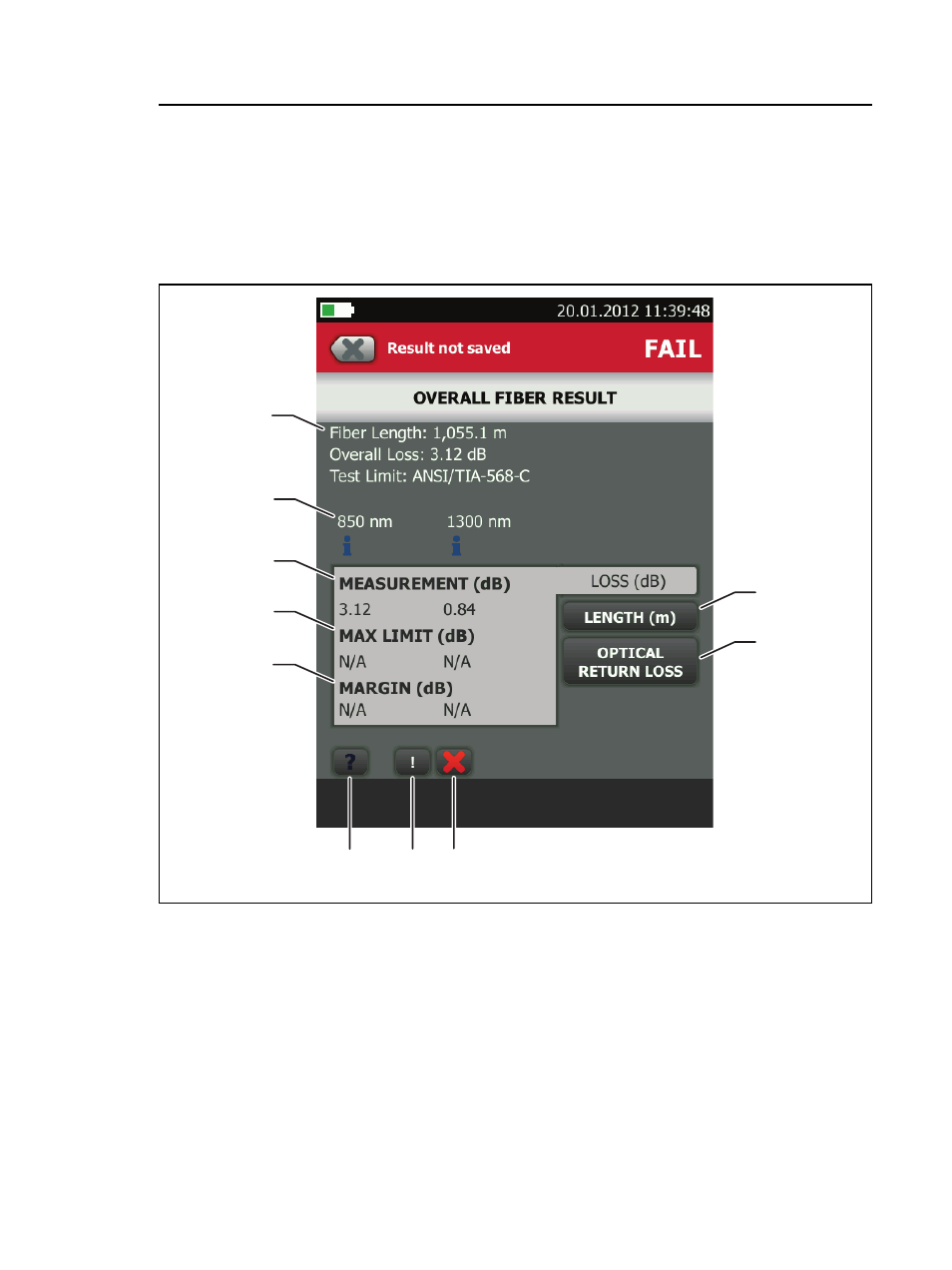

Figure 110. OVERALL FIBER RESULT Screen
Fiber Length: The length of the fiber.
Overall Loss: The loss of the connectors and the fiber in the link.
Test Limit: The test limit the OTDR used for the test.
The wavelengths the tester used for the test.
Measurements of overall loss for each wavelength the tester
used. The measurement is red if it exceeds the limit.
A
C
D
E
I
B
J
F G H
