Versiv Cabling Certification Product Family
Technical Reference Handbook
196
Autotest Results for Loopback Mode

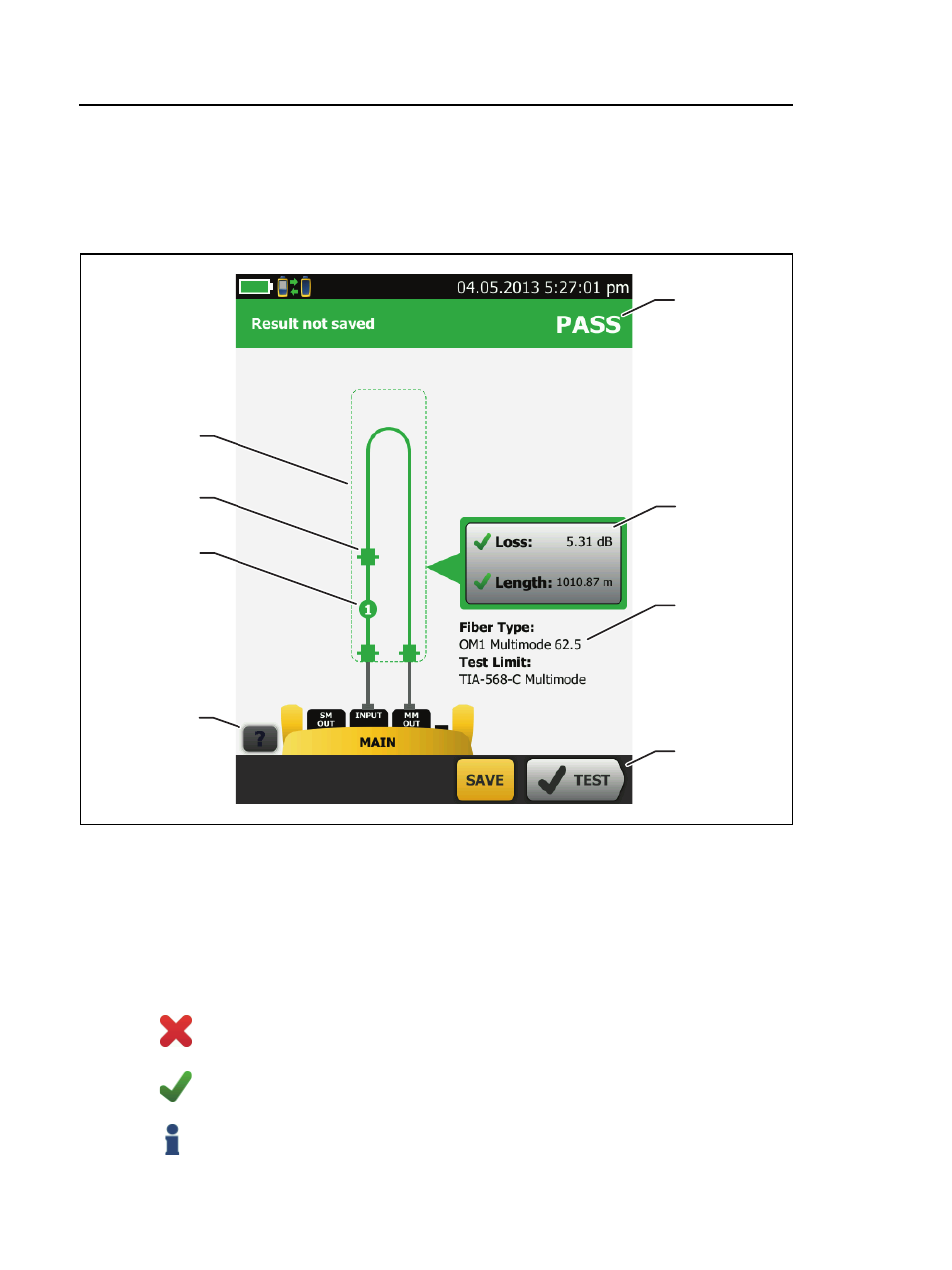

Figure 87 shows an example of Autotest results for Loopback
mode.
GPU119.EPS
Figure 87. Result for Loopback Mode
 The overall result for the Autotest.
 The loss and length measurements for the fiber:
The result exceeds the limit.
The result is within the limit.
The selected test limit does not have a limit for the test.
D
G
E
F
A
B
C
H
