GPU113.EPS

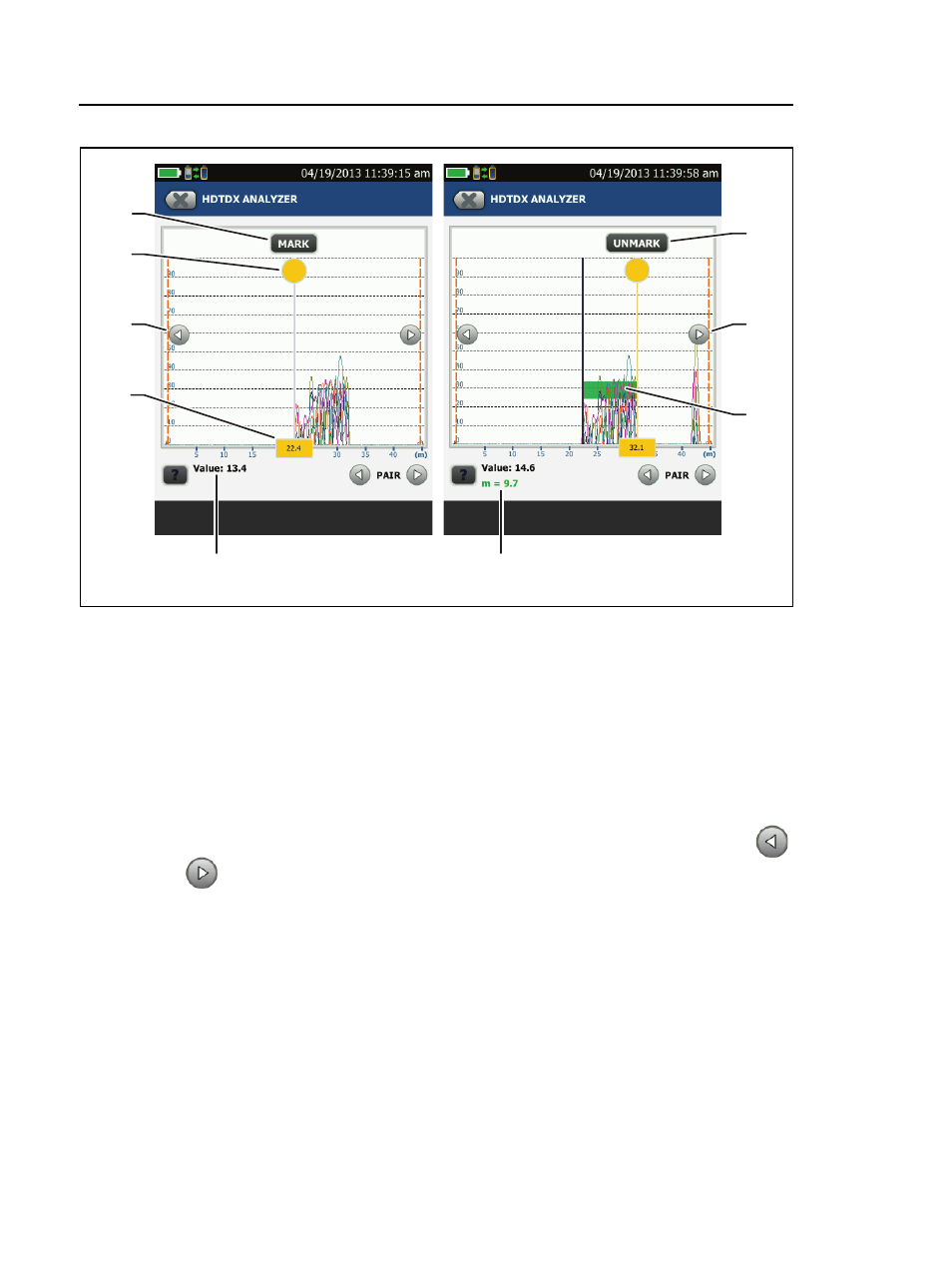

Figure 69. How to Use the Measurement Cursor on the
HDTDR or HDTDX Plot
To specify the start of a measurement, tap the yellow circle
(
), then tap MARK.
To see the MARK and UNMARK buttons, tap the yellow circle.
When MARK or UNMARK shows, you can drag the cursor.
To move the cursor in small increments, tap or press and hold
or
. If these buttons do not show, tap the yellow circle on the
cursor.
The measurement in the box is the distance from the start of the
cabling to the cursor.
The measured value of crosstalk or return loss at the cursor’s
location.
The distance between the start and end of the green
measurement bar.
