Chapter 7: How to Certify Fiber Cabling
Autotest in Far End Source Mode
205
Autotest Results for Far End Source Mode

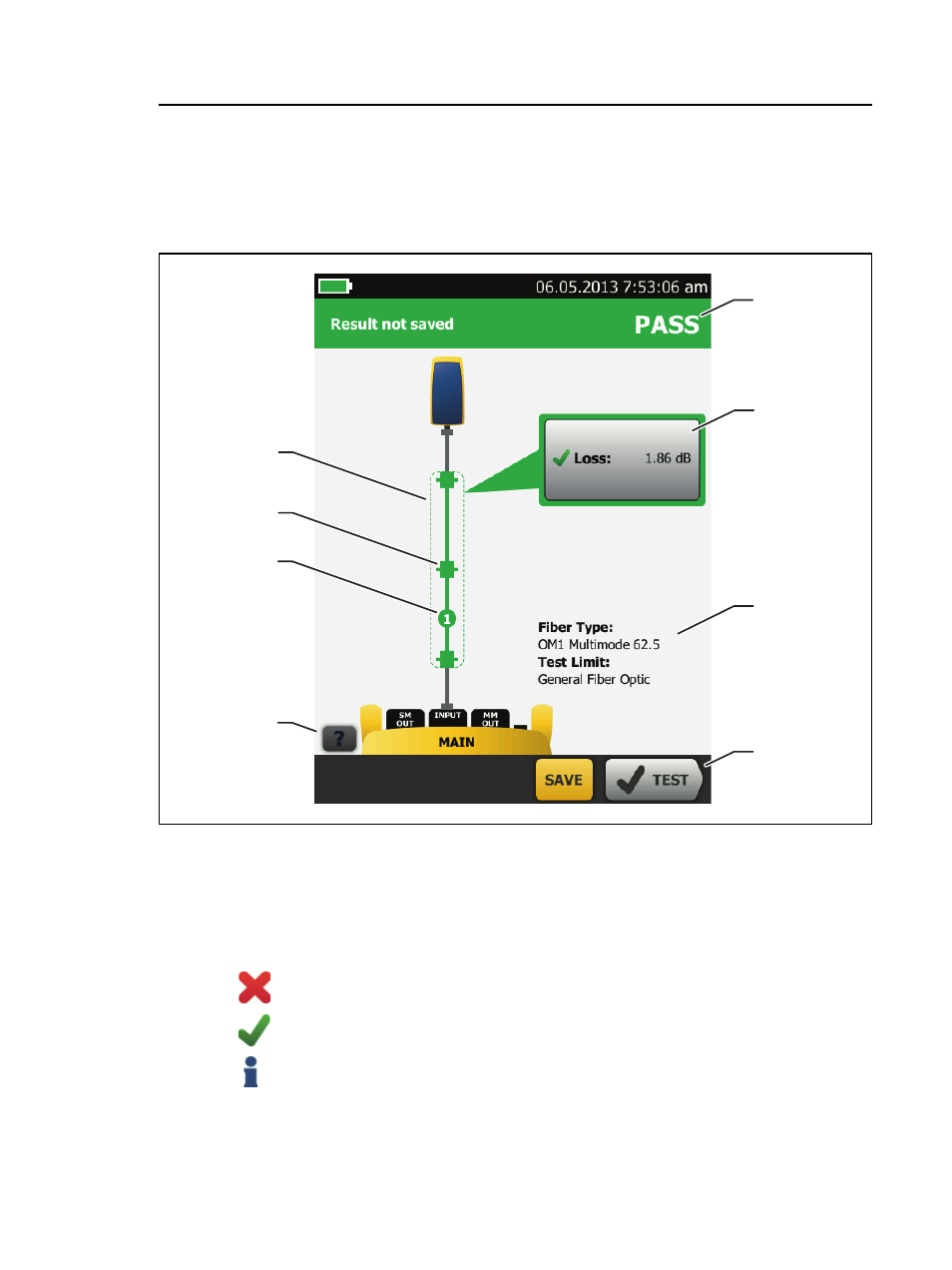

Figure 90 shows an example of Autotest results for Far End Source
mode.
GPU120.EPS
Figure 90. Result for Far End Source Mode
 The overall result for the Autotest.
 The loss and length measurements for the fiber:
The result exceeds the limit.
The result is within the limit.
The selected test limit does not have a limit for the test.
(see the note on the next page)
To see the results, limit, and margins for the fiber, tap the
window.
