Chapter 3: How to Certify Twisted Pair Cabling
Twisted Pair Autotest Results
89

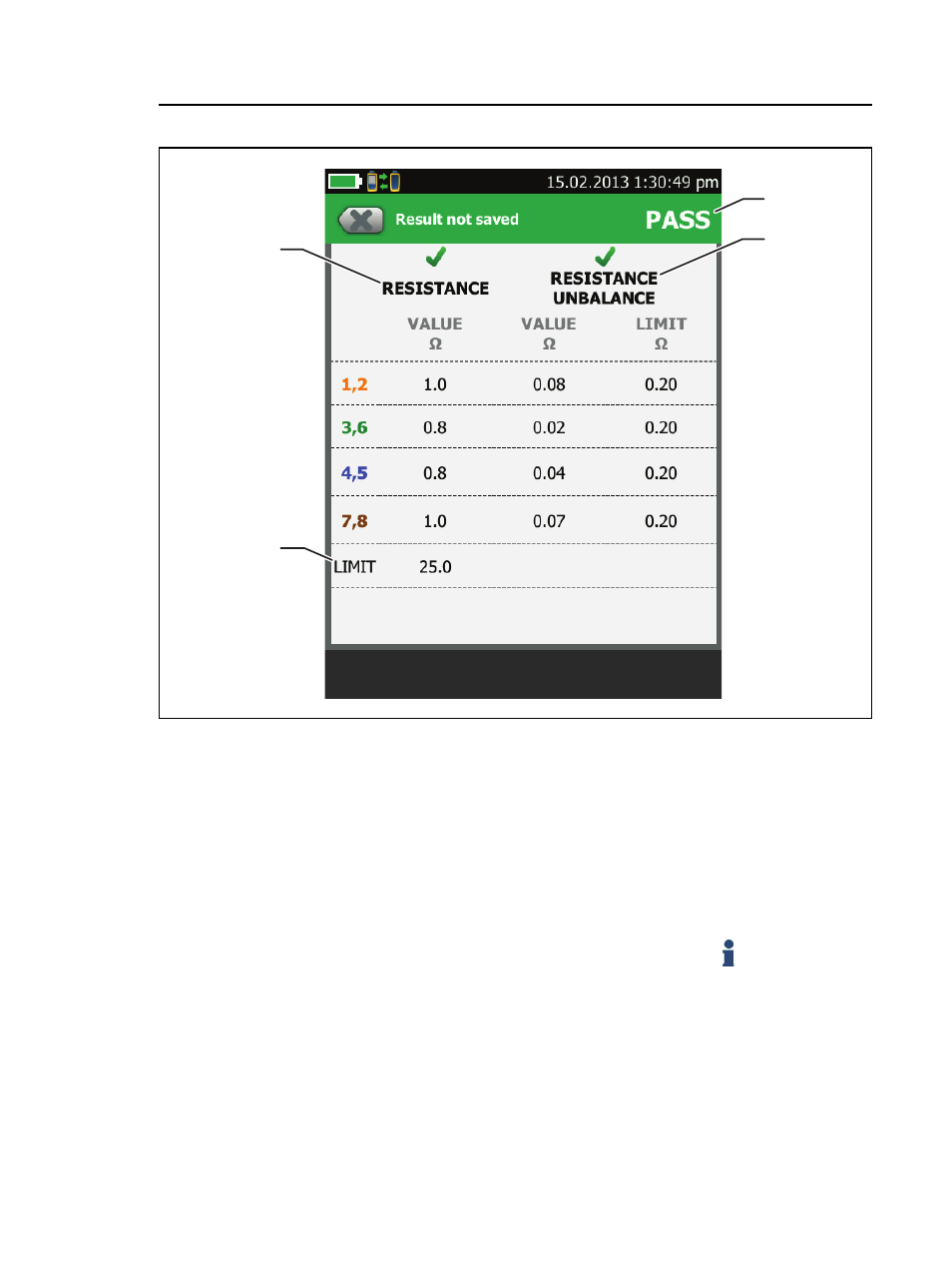

GPU69.EPS
Figure 37. Resistance Results
The RESISTANCE column shows the DC loop resistance for each
pair.
LIMIT shows only if the selected test limit includes a limit for the
resistance test.
The overall result for the resistance test. Some test limits do not
have a limit for resistance. The tester shows an when no
limit is available.
The RESISTANCE UNBALANCE columns show how well the DC
resistances of the wires in the pair are balanced.
The VALUE is the difference in the resistances of the two wires in
the pair. The tester uses the measured resistances of the two
wires and the maximum unbalanced percentage specified by the
C
A
B
D
