Chapter 3: How to Certify Twisted Pair Cabling
Twisted Pair Autotest Results
97
GPU84.EPS

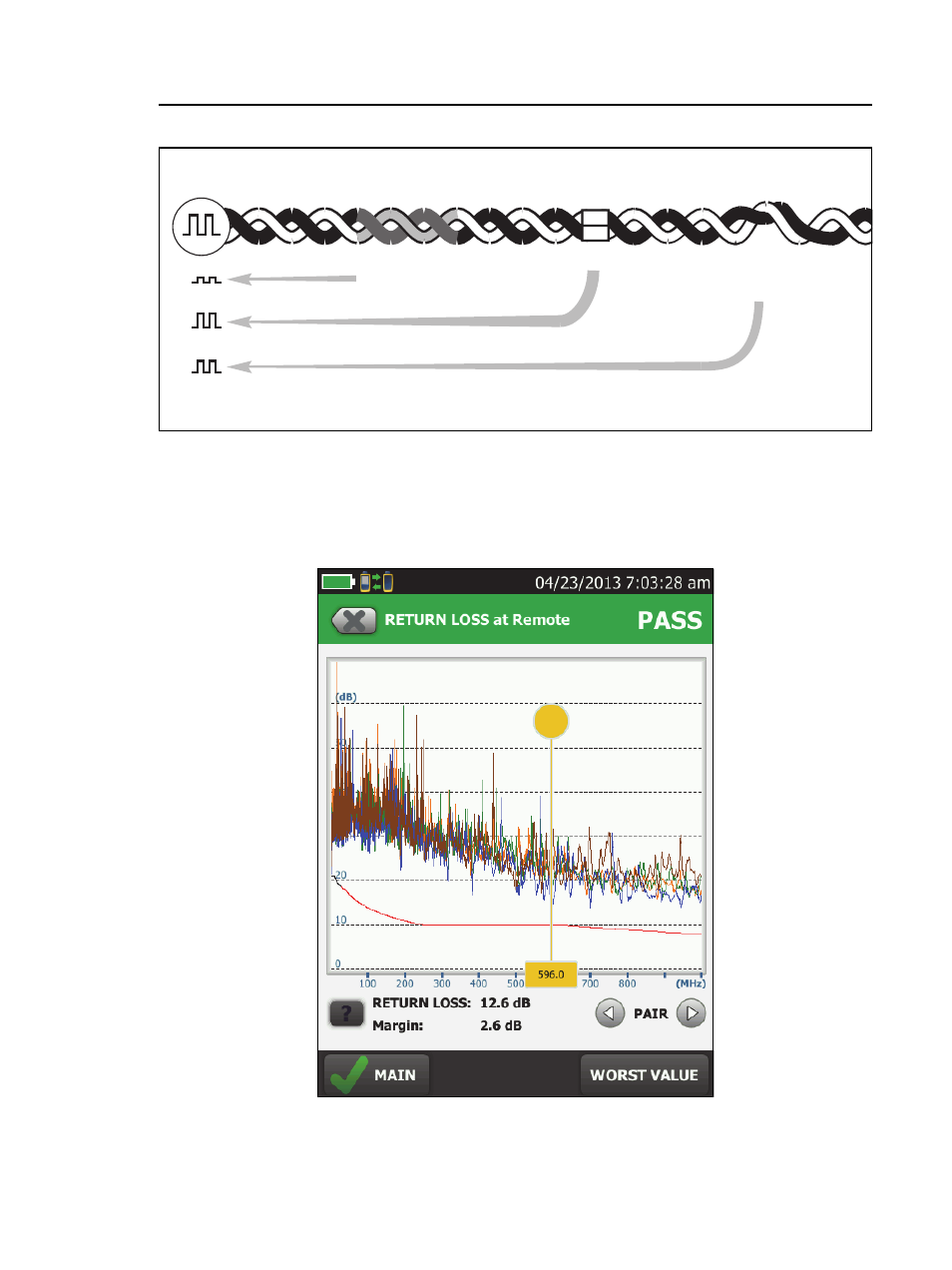

Figure 42. Sources of Return Loss
Figure 43. Return Loss Plot
Signal
input
Variations in
materials and
construction
Reflected
signals
Kinks and
other
distortions
Connections
