Chapter 7: How to Certify Fiber Cabling
Loss/Length Settings for Limits that Calculate a Loss Limit
175
GPU140.EPS

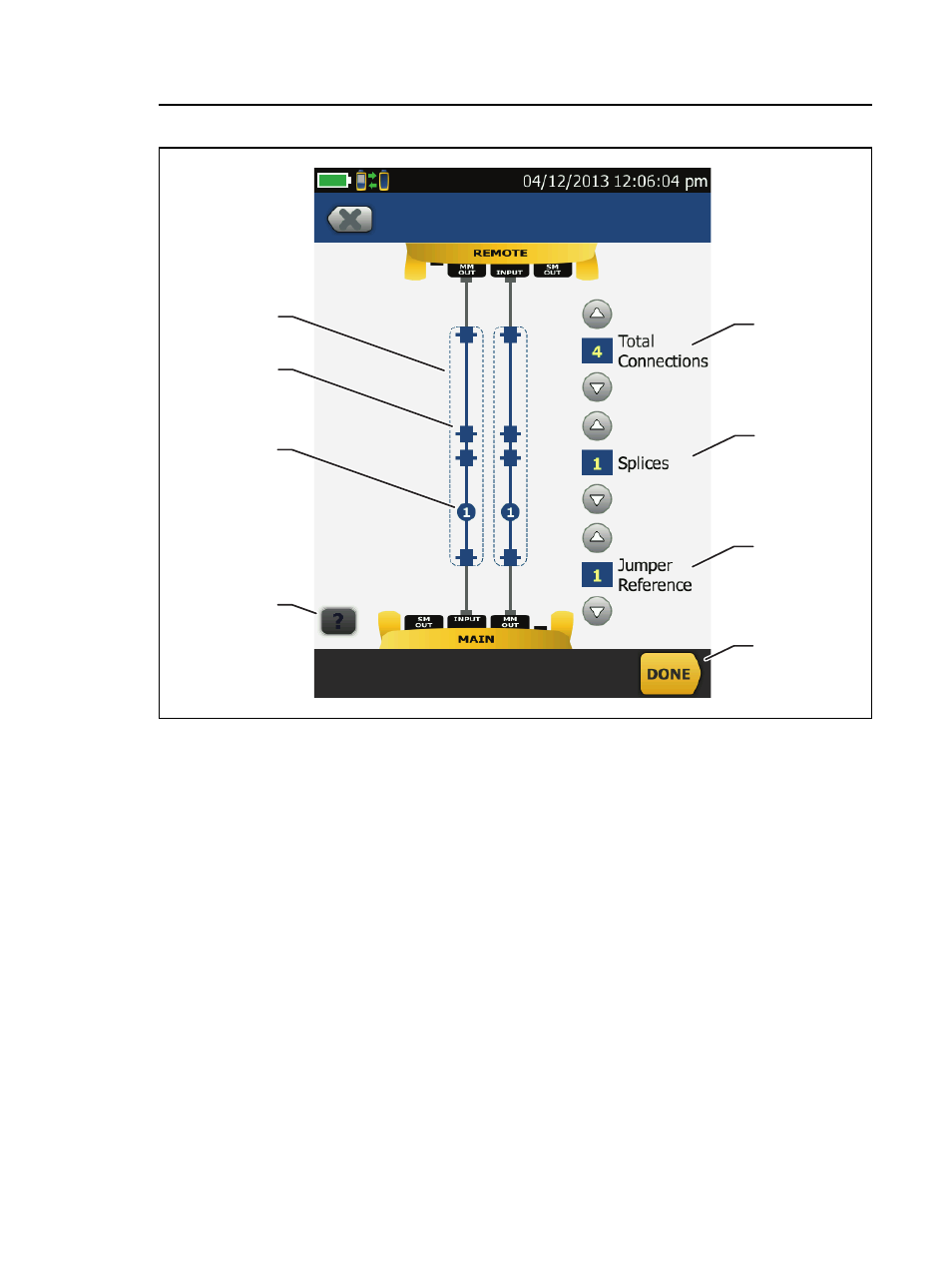

Figure 78. Screen to Set the Number of Connectors,
Splices, and Jumpers
Total Connections: Enter the total number of connections that
are in each path of the link. Do not adjust the number for the
Reference Method you use. For example, if the link has 3
connections, enter “3” even if you use the 2 or 3 Jumper
reference method. When the tester calculates the loss limit, it
automatically removes the losses of the connections you used to
set the reference.
Note
For links with MPO modules, each module is one
connector.
Splices
:
Enter the number of splices that are in each path of the
link.
